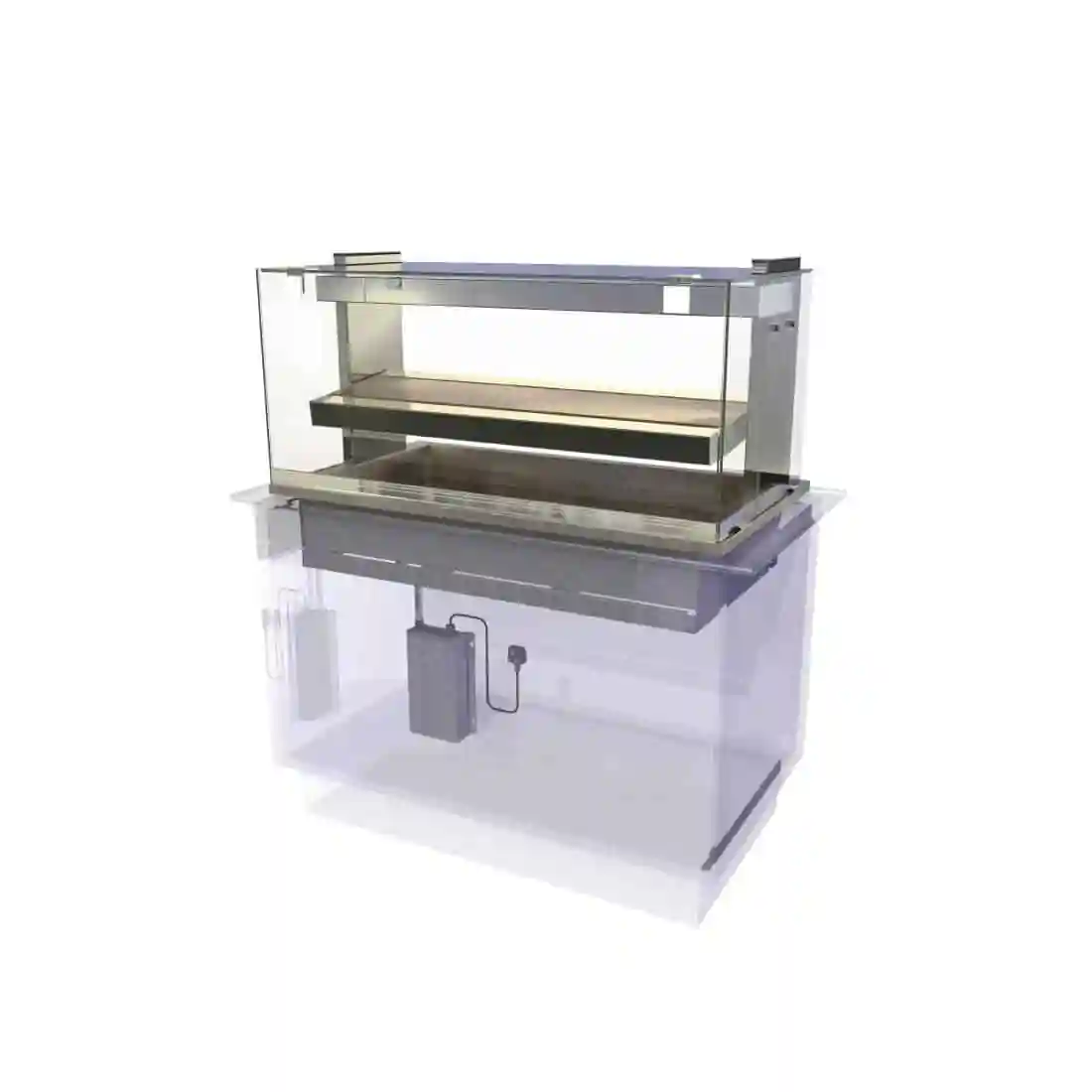

Display, illuminate, heat and protect pre-cooked food with CED’s rectangular shaped Kubus assisted service heated deli drop in display. This 4/1 GN size hot display features a stainless steel heated 4/1 GN well area, inclined for improved customer vision. An adjustable temperature heated midshelf at eye level offers further hot merchandising space. The display fits into a pre-formed cut out made in a countertop . The assisted service superstructure is made from bright polished steel and aluminium rectangular profiles, with flat & toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the rectangular profile gantry & midshelf Base heat and surface heat can be adjusted & ‘locked’ from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switches, mounted at eye level on operator side of the display. The display has 24 hour operation & is factory set to hold food core at 85°C. Modular heater mat elements under the heated well area give even heat spread & the steel presentation surface makes for easier cleaning of pastry products etc. The display comes complete with lifting kit for installation and is supplied with a concealed control box & 2M flexible electrical conduit for hard wiring to a 3.8KW/20a/230v electrical supply. GN’s Sold Separately.

• Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
• Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
• 24 hour operation as standard
• Assisted service application
• Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
• Supplied with lifting kit for installation and concealed control box & 2M flexible electrical conduit for hard wiring to a 3.8KW/20a/230v electrical supply
• Food display examples : Long term holding (2 – 4 hours) – beans, bacon, stews, curry, chilli dishes, pasta. Short term holding (15-20 mins) – omelettes, eggs
• Features an inclined heated well area and overhead heated mid shelf for eye level food presentation
• Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN area. Lamps are housed within a rectangular profile gantry and mid shelf
• Base heat is provided to each 1/1 GN area by individual heater mats, mounted under the steel well surface
