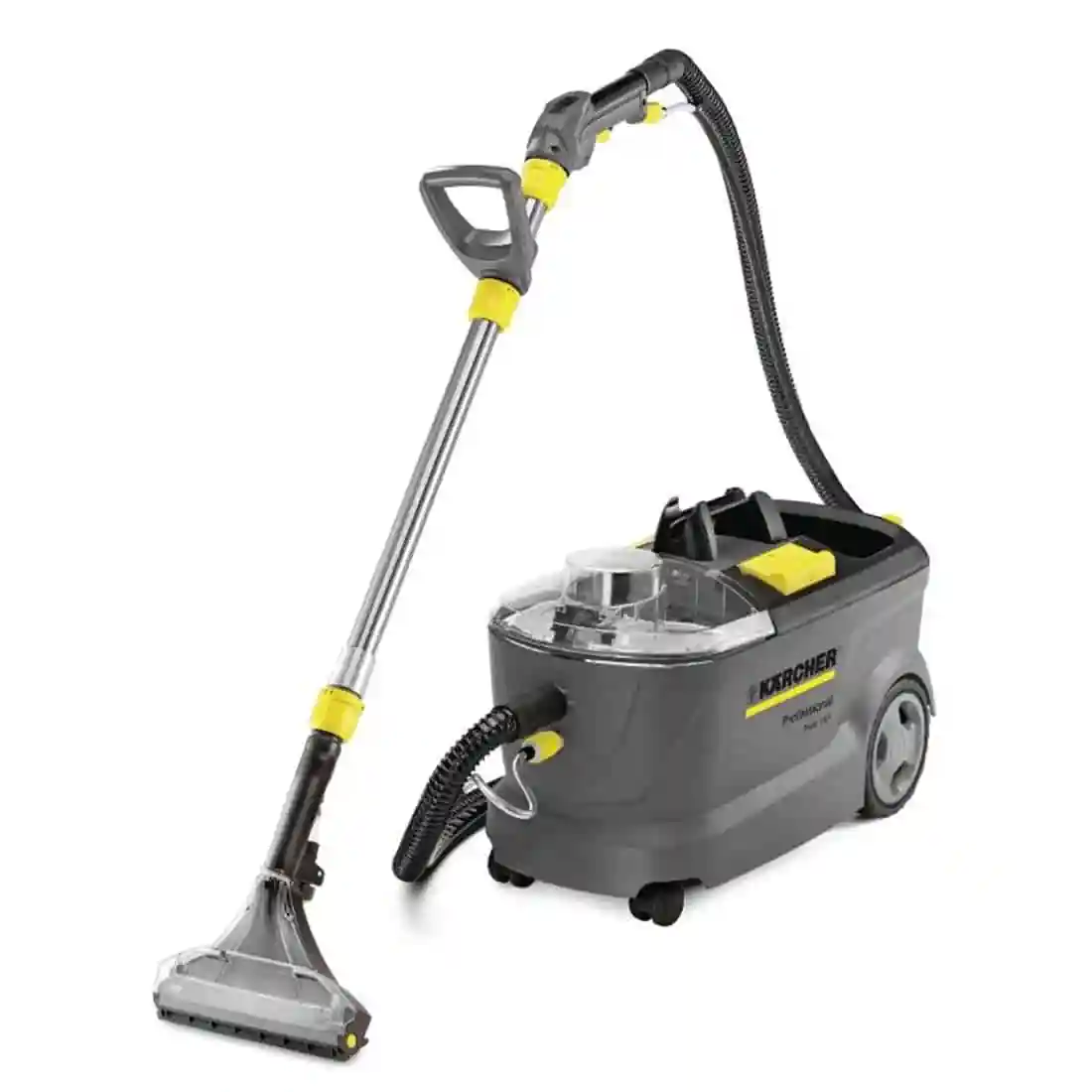

Karcher Puzzi 10/1 Spray Extraction Cleaner
Karcher Puzzi 10/1 Spray Extraction Cleaner - Vacuum Cleaners
Puzzi 10/1. 1250W. 9/10Ltr Capacity
Original price was: £923.99.£706.24Current price is: £706.24. Ex. VAT
Description
Powerful carpet and upholstery cleaner. Simultaneously injects and vacuums water and detergent to achieve a deep clean.
- Injects detergent and vacuums simultaneously for a deep clean
- Removable dirty water tank for easy extraction
- 1 litre per minute spray rate
- Upholstery tube
- 10 litre fresh water tank. 9 litre dirty water tank
- Removable dirty water tank
- Hand tool with bend and suction tool to get dirt from all angles
- Powerful suction leaves upholstery dry
- Compact for easy storage
Additional information
| Brand | Karcher |
|---|---|
| Dimensions | 720(H) x 495(W) x 355(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Delivery To Ireland | 2-3 weeks |
| Main Colour | Grey |
| Power | Plug |
| Product Family | Cleaning & Hygiene |
| Main Category | Cleaning Equipment |
| Height (mm) | 720 |
| Product Depth | 355 |
| Width (mm) | 495 |
| Sub Category | Rotary and Vacuum Cleaners |
| Product Type | Vacuum Cleaners |
| Mobility | Wheels |
| Product Weight | 10.3kg |
| Section | Wet and Dry Vacuums |
| Secondary Colour | Grey & Yellow |
| Power Type | 1250W |
| Power Output | 54 litre/second air flow rate |
| Barcode (EAN) | 4002667341423 |
| User manual | user manual p414.pdf |
| Weight | 10.3 kg |
Frequently Asked Questions
Karcher Puzzi 10/1 Spray Extraction Cleaner FAQs
How can I identify the Karcher Puzzi 10/1 spray extraction cleaner?
The commercial spray extraction cleaner is the Karcher Puzzi 10/1, manufacturer reference 1.100-132.0. Its EAN barcode is 4002667341423, helping buyers confirm the correct machine when ordering or receiving it.
Is the Karcher Puzzi 10/1 a vacuum cleaner for commercial carpets and upholstery?
Yes. It is a spray-extraction vacuum cleaner designed for wet cleaning carpets and upholstery in settings such as hotels, schools, hospitals, factories, shops, offices and rental operations. Its action suits premises that need deeper textile cleaning than dry vacuuming alone.
How does the Karcher Puzzi 10/1 deep-clean carpets and upholstery?
It sprays water and detergent into the textile and vacuums the used solution back in the same work cycle. This simultaneous spray-and-suction action helps lift embedded soiling while extracting moisture and residue from the cleaned surface.
What tank capacities does the Karcher Puzzi 10/1 cleaner provide?
The machine has a 10Ltr fresh-water tank and a 9Ltr wastewater container. The dirty-water container is removable, making it easier to lift out, empty and rinse after cleaning.
What spray and suction performance does the Karcher Puzzi 10/1 deliver?
It sprays cleaning solution at 1Ltr per minute and provides a maximum airflow of 54Ltr per second. Maximum negative pressure is 22 kPa, supporting the recovery of used solution from carpets and upholstery.
Can spray and vacuuming be controlled separately on the Karcher Puzzi 10/1?
Yes. Separate switches control the spray pump and suction turbine, allowing spray extraction in one pass or repeat suction without additional spraying. Extra suction passes can shorten the textile's drying time after cleaning.
What does the Karcher Puzzi 10/1 provide for upholstery cleaning?
The Puzzi 10/1 has an upholstery tube and a hand nozzle with a bend and suction tool, helping the operator reach different angles. Its strong suction extracts moisture after spraying so upholstery is left drier and can finish drying sooner.
How portable and easy to store is the Karcher Puzzi 10/1 cleaner?
Its compact body and wheels make movement and storage easier. For transport, the suction pipe can sit on the carrying handle, the spray and suction hose can be placed on top, and the mains cable can be wound onto its hook.
How much does the Karcher Puzzi 10/1 cleaner weigh?
The product weight is 10.3 kg, while its typical operating weight is 10.7kg. Keeping those two figures distinct helps with handling and transport planning because operating condition and basic product weight are not the same measure.
What electrical supply does the Karcher Puzzi 10/1 cleaner use?
It is a plug-powered cleaner for a 230V UK supply. The product power rating is 1250W, while the blower motor has a nominal 1100 W performance rating.
What cleaning-solution temperature can the Karcher Puzzi 10/1 use?
Cleaning solution can be used at up to 50°C, provided the textile can tolerate that temperature. Test colour fastness and water resistance in an inconspicuous area, and follow the detergent concentration directions rather than adding excess product.
How should the Karcher Puzzi 10/1 be used on a carpet?
Fill the fresh-water tank without exceeding the maximum mark, switch on suction and spray, then pull the floor nozzle backwards in overlapping passes. Do not push it forwards while spraying. Repeated suction without spraying can help remove more residual moisture.
How should the Karcher Puzzi 10/1 be cleaned after use?
Flush it with about 2Ltr of fresh water and no detergent for one to 2 minutes. Empty and rinse the wastewater container, empty the fresh-water tank, wipe the exterior with a damp cloth and let the machine dry thoroughly with the lid removed or moved aside.
Which routine maintenance points need attention on the Karcher Puzzi 10/1?
Disconnect the plug before maintenance. Regularly brush the fluff filter, rinse the fresh-water sieve and clean the nozzle mouthpiece. If suction falls, also check the lid position, lid seal and suction hose for blockages.
What warranty comes with the Karcher Puzzi 10/1 cleaner?
The cleaner includes a 1-year warranty. Keep proof of purchase, as eligible warranty support is handled through the dealer or authorised customer-service centre.
What colour is the Karcher Puzzi 10/1 cleaner?
The machine has Karcher's practical grey and yellow colour scheme, with grey as its main colour. This makes it readily recognisable among commercial cleaning equipment.
