Designline Drop In Ceran Glass Hotplate HP3
Designline Drop In Ceran Glass Hotplate HP3 - Food Warmer Plates & Heat Lamps
Capacity: 3 x 1/1 GN. Self Service. 1175mm Wide
Original price was: £2,665.99.£2,268.45Current price is: £2,268.45. Ex. VAT
Description

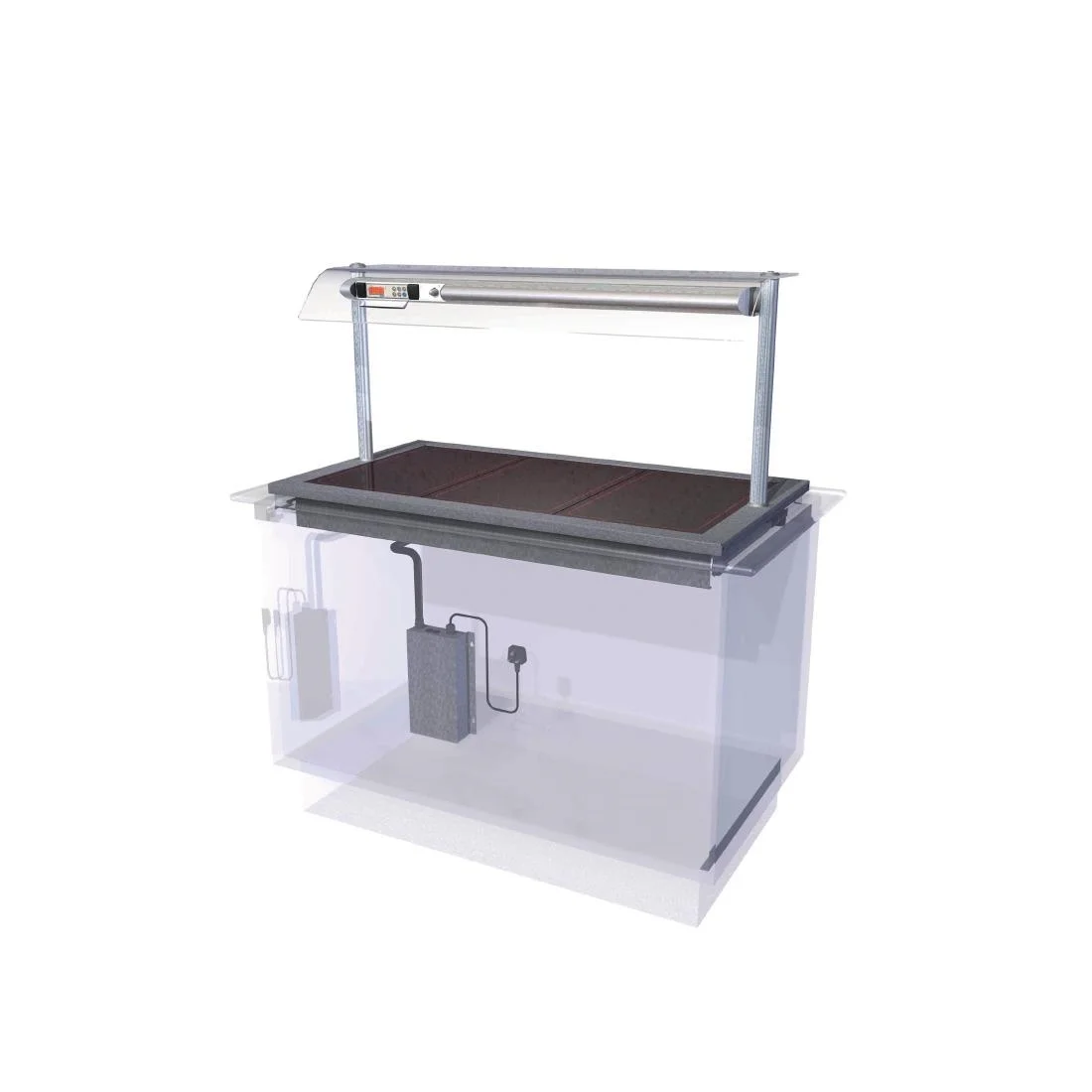

Display, illuminate, heat and protect pre-cooked food with CED’s elliptically shaped Designline self help ceran glass hotplate drop in display. This 3/1 Gn size hot display features a 3/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & ‘locked’ from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN’s Sold Separatley.
- Curved display in bright polished steel and aluminium profile
- Self help application
- 24 hour operation as standard.
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch. (to operator side of display)
- Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
- Curved glass profile is designed to complement other units within the Designline range
- Features a flat heated ceran glass dish presentation area, heated evenly from underneath by individual heater mat elements
- Product illumination/ surface heat is provided by infra red quartz heat lamps to each 1/1Gn area. Lamps are housed within an elliptical profile gantry and mid shelf
- Gantry fitted with curved toughened sneeze screen glass for food protection
Additional information
| Brand | Designline |
|---|---|
| Capacity | 3 X 1/1 GN |
| Dimensions | 535(H) x 1175(W) x 660(D)mm |
| Is A Plug Fitted? | Yes |
| Temperature Range | 85°C to 110°C |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Power | Plug |
| Gastronorm Size | 1/1 GN full |
| Height (mm) | 535 |
| Product Depth | 660 |
| Product Type | Hot Plates |
| Delivery To Ireland | 8-10 weeks |
| Product Weight | 55kg |
| Width (mm) | 1175 |
| Secondary Colour | Chrome |
| Sub Category | Servery & Display Machines |
| Section | Hot plates |
| Operating Temperature Range | 85 °C to 110 °C |
| Supplier Reference | HP3 |
| Wattage | 2 |
| Power Type | 2kW, 230V, 13A |
| Weight | 55 kg |
Frequently Asked Questions
CED Designline Drop In Ceran Glass Hotplate HP3 FAQs
What is the CED Designline Drop In Ceran Glass Hotplate HP3 best suited to?
The CED Designline Drop In Ceran Glass Hotplate HP3 is designed for catering operations that need prepared food held and presented efficiently during service.
What capacity does the CED Designline Drop In Ceran Glass Hotplate HP3 provide?
The CED Designline Drop In Ceran Glass Hotplate HP3 has a capacity of 3 x 1/1 GN. Match this to the volume and service period for food being held.
What temperature range does the CED Designline Drop In Ceran Glass Hotplate HP3 offer?
The temperature range is 85°C to 110°C. Use the thermostatic control to suit the food and service plan, and monitor holding temperatures as part of the venue's food-safety procedure.
How is the CED Designline Drop In Ceran Glass Hotplate HP3 controlled during use?
The CED Designline Drop In Ceran Glass Hotplate HP3 provides these operating features:
- Curved display in bright polished steel and aluminium profile
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch. (to operator side of display)
- Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
How is food held and arranged in the CED Designline Drop In Ceran Glass Hotplate HP3?
The gastronorm arrangement is 1/1 GN full. Features a flat heated ceran glass dish presentation area, heated evenly from underneath by individual heater mat elements. Confirm the supplied pan configuration and sizes before choosing additional containers.
What are the dimensions and net weight of the CED Designline Drop In Ceran Glass Hotplate HP3?
The CED Designline Drop In Ceran Glass Hotplate HP3 measures 535(H) x 1175(W) x 660(D)mm and has a net product weight of 55kg. Check the delivery route, final position and required operating clearances before ordering.
What is the CED Designline Drop In Ceran Glass Hotplate HP3 made from?
The CED Designline Drop In Ceran Glass Hotplate HP3 has a Silver finish.
What power supply does the CED Designline Drop In Ceran Glass Hotplate HP3 require?
The CED Designline Drop In Ceran Glass Hotplate HP3 requires an electrical supply rated at 2kW, 230V, 13A. A plug is fitted.
How should the CED Designline Drop In Ceran Glass Hotplate HP3 be cleaned and maintained?
Allow the CED Designline Drop In Ceran Glass Hotplate HP3 to cool before cleaning its cupboard, shelves and food-contact surfaces with suitable non-abrasive products. Remove food debris promptly and dry the interior before the next service.
How can I identify the correct CED Designline Drop In Ceran Glass Hotplate HP3 model for ordering and support?
Quote Smart Hospitality Supplies product code CW618 when ordering or requesting support. The model reference is HP3. It includes a one-year warranty.
What operator-control functions are available on the CED Designline Drop In Ceran Glass Hotplate HP3?
- Display, illuminate, heat and protect pre-cooked food with CED’s elliptically shaped Designline self help ceran glass hotplate drop in display.
- The display fits into a pre-formed cut out made in a countertop.
- The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display.
- The display has 24 hour operation & is factory set to hold food core at 85 deg.
Considering these details together helps buyers assess whether the CED Designline Drop In Ceran Glass Hotplate HP3 suits the intended workload, site services and daily routine.
Which loading and output details define the CED Designline Drop In Ceran Glass Hotplate HP3?
- This 3/1 Gn size hot display features a 3/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers.
- GN’s Sold Separatley.
- Product illumination/ surface heat is provided by infra red quartz heat lamps to each 1/1Gn area. Lamps are housed within an elliptical profile gantry and mid shelf.
Considering these details together helps buyers assess whether the CED Designline Drop In Ceran Glass Hotplate HP3 suits the intended workload, site services and daily routine.
Which power and site-service requirements apply to the CED Designline Drop In Ceran Glass Hotplate HP3?
- Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry.
- Voltage: 230V.
- Power or fuel connection: Plug.
- Wattage: 2.
Considering these details together helps buyers assess whether the CED Designline Drop In Ceran Glass Hotplate HP3 suits the intended workload, site services and daily routine.
Which size and installation details should be checked for the CED Designline Drop In Ceran Glass Hotplate HP3?
- Weight: 55 kg.
- Net weight: 55kg.
- Depth: 660.
- Height: 535.
- Width: 1175.
Considering these details together helps buyers assess whether the CED Designline Drop In Ceran Glass Hotplate HP3 suits the intended workload, site services and daily routine.
How is the CED Designline Drop In Ceran Glass Hotplate HP3 constructed for its commercial setting?
Main colour: Silver. This product-specific detail helps buyers compare the exact configuration and retain the correct information for ordering, installation or future support.
Which operator-safety features are built into the CED Designline Drop In Ceran Glass Hotplate HP3?
Gantry fitted with curved toughened sneeze screen glass for food protection. This product-specific detail helps buyers compare the exact configuration and retain the correct information for ordering, installation or future support.
Which cleaning and maintenance features help care for the CED Designline Drop In Ceran Glass Hotplate HP3?
Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. This product-specific detail helps buyers compare the exact configuration and retain the correct information for ordering, installation or future support.
How can buyers identify the exact CED Designline Drop In Ceran Glass Hotplate HP3 configuration?
- Brand: Designline.
- Warranty: 1 Year.
Considering these details together helps buyers assess whether the CED Designline Drop In Ceran Glass Hotplate HP3 suits the intended workload, site services and daily routine.
Which product-specific features further distinguish the CED Designline Drop In Ceran Glass Hotplate HP3?
- Self help application.
- 24 hour operation as standard.
- Curved glass profile is designed to complement other units within the Designline range.
- Pack Size Qty: 1.
- Product type: Hot Plates.
- Supplier reference: HP3.
Considering these details together helps buyers assess whether the CED Designline Drop In Ceran Glass Hotplate HP3 suits the intended workload, site services and daily routine.
