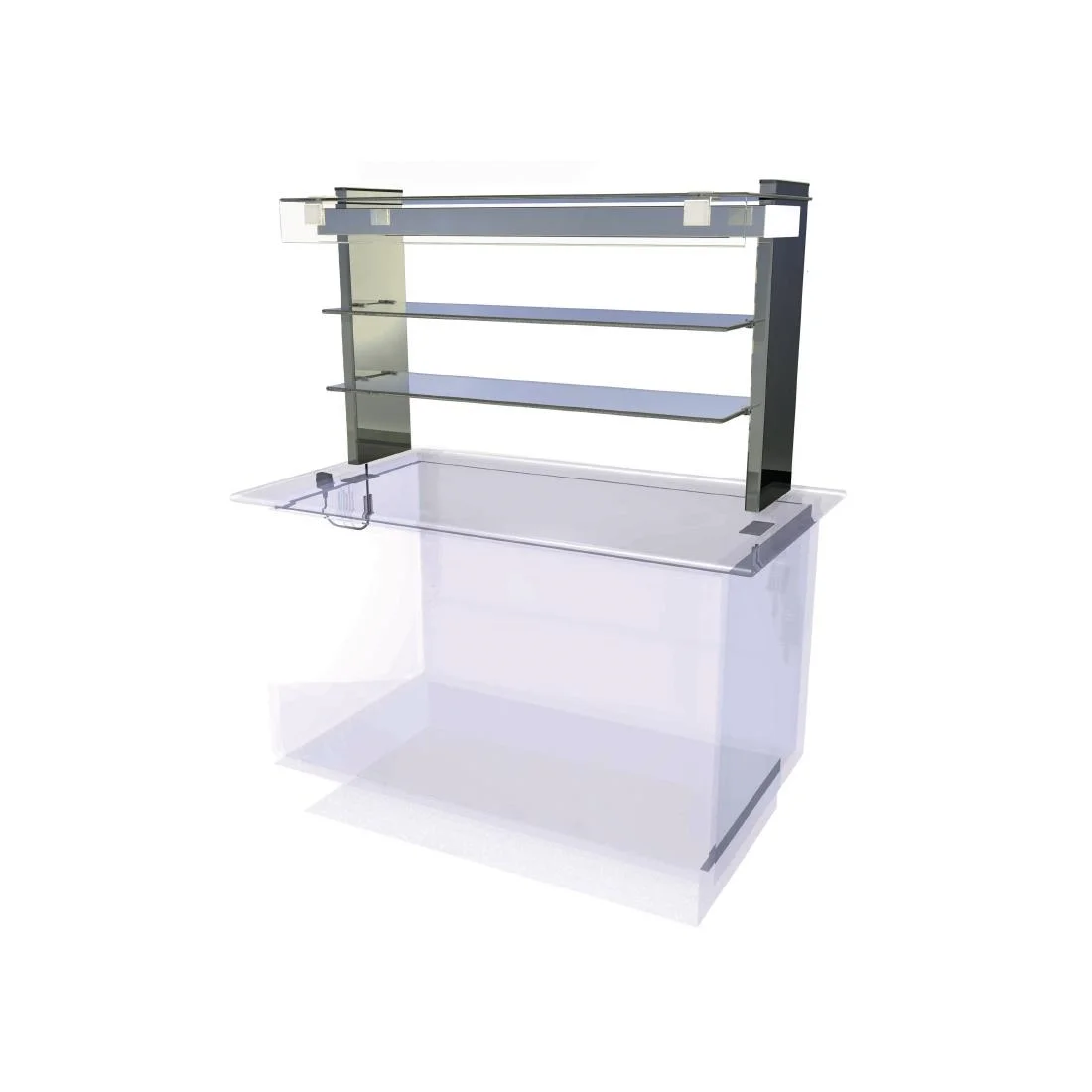

Kubus Drop In Ambient Multi Level Display KAMG4
Kubus Drop In Ambient Multi Level Display KAMG4 - Food Warmer Plates & Heat Lamps
2 Shelves. Capacity: 4x 1/1 GN. Self Service. 1500mm Wide
Original price was: £1,231.99.£1,014.54Current price is: £1,014.54. Ex. VAT
Description
Illuminate and protect countertop displayed ambient food and drink with CED’s rectangular shaped Kubus self help ambient multi level gantry. The 4/1 GN self help display features two toughened glass impulse/ display shelves and is 1500mm long. The polished aluminium / steel construction gantry mounts to a countertop and is fitted with a flat glass sneeze screen, diffused lighting and includes post fixing plates and bolts. The light switch is conveniently housed at the end of the gantry. GN’s Sold Separatley.
- Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
- Product illumination is provided from diffused lighting in a rectangular gantry profile
- Lighting is controlled from a push button switch on gantry end plate
- Supplied with post fixing plates, bolts, 2m lead & plug top
- Flat glass profile is designed to complement other units within the Kubus range
- Drink display examples: Racked wine, impulse drinks (still and carbonated), bottled, canned & cartoned water, UHT dairy, lemonade, wine, beer, lager & fruit juice
- Gantry fitted with flat toughened glass sneeze screen food protection
- Gantry fitted with two toughened glass shelves, providing additional food storage within the area
- Self help application
Additional information
| Brand | Kubus |
|---|---|
| Capacity | 4x 1/1 GN |
| Dimensions | 700(H) x 1500(W) x 474(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Power | Plug |
| Gastronorm Size | 1/1 GN full |
| Main Category | Servery & Display Machines |
| Delivery To Ireland | 8-10 weeks |
| Sub Category | Food Merchandisers |
| Product Weight | 45kg |
| Height (mm) | 700 |
| Width (mm) | 1500 |
| Wattage | 100 |
| Section | Ambient Display Units |
| Product Depth | 474 |
| Product Type | Ambient Displays |
| Power Type | 100W, 230V, 13A |
| Product Tags | ambient display unit, ambient merchandiser |
| Secondary Colour | Chrome & Black |
| Supplier Reference | KAMG4 |
| Weight | 45 kg |
Frequently Asked Questions
CED Kubus Drop In Ambient Multi Level Display KAMG4 FAQs
Which self-service counters would benefit from the CED Kubus ambient display?
The KAMG4 is designed for countertop self-service merchandising of ambient food and drink. Its illuminated, multi-level layout suits cafés, canteens, buffets and retail counters that want customers to see and select suitable products while a flat toughened-glass screen helps protect the display.
What capacity and shelving does the CED Kubus KAMG4 ambient display provide?
The unit has a 4x 1/1 GN capacity and 2 toughened-glass display shelves, creating multiple merchandising levels above the counter. The shelves provide additional display space for impulse products. GN containers are sold separately, so buyers can choose suitable 1/1 GN pieces for their service layout.
How is the CED Kubus multi-level display constructed?
The rectangular gantry combines bright polished steel, powder-coated black side panels and an aluminium profile. It also has 2 toughened-glass shelves and a flat toughened-glass sneeze screen. The silver, chrome and black finish gives the display a coordinated commercial-counter appearance.
How are products illuminated in the CED Kubus ambient display?
Diffused lighting is built into the rectangular gantry profile to illuminate products across the display. A push-button switch on the gantry end plate provides convenient control. The lighting is rated at 100W and the unit uses a 230V, 13A plug connection with a 2m lead.
Which drinks can be merchandised in the CED Kubus ambient display?
Ambient drink examples include racked wine, still and carbonated impulse drinks, bottled, canned or cartoned water, UHT dairy drinks, lemonade, wine, beer, lager and fruit juice. Operators should select products that are suitable for their intended ambient self-service conditions.
Which food and non-food products suit the CED Kubus display shelves?
The shelves can merchandise suitable ambient chocolate, confectionery, crisps, snacks, cakes, sandwiches and baguettes. They can also present flowers, menus, wine lists and table-condiment sets, giving hospitality operators flexibility to combine impulse sales with useful counter information and accessories.
How is the CED Kubus countertop gantry mounted and connected?
The gantry mounts to a countertop and is supplied with post-fixing plates, bolts, a 2m electrical lead and a plug top. These included mounting components support a secure counter installation, while the plug connection powers the integrated lighting.
What are the dimensions and weight of the CED Kubus ambient display?
The KAMG4 measures 700(H) x 1500(W) x 474(D)mm and weighs 45 kg. Its 1500 mm width accommodates a 4x 1/1 GN display arrangement, so buyers can check the available counter width and structural support before installation.
Will the CED Kubus flat-glass ambient display match other Kubus units?
Yes. Its flat-glass profile is designed to complement other units in the Kubus range, helping operators create a visually coordinated counter. The rectangular polished-metal gantry, black side panels and flat glass maintain the shared Kubus styling across adjoining display equipment.
What warranty comes with the CED Kubus ambient display?
The CED Kubus KAMG4 includes a 1-year warranty, providing cover for the display unit and its integrated lighting subject to the applicable warranty terms.
How can I identify the CED Kubus ambient display KAMG4 when ordering?
This is the Kubus KAMG4 ambient multi-level display, sold under Smart UK product code CW624. The pack quantity is 1 display gantry. Using both KAMG4 and CW624 helps distinguish this 1500 mm self-service model when ordering or discussing installation.
