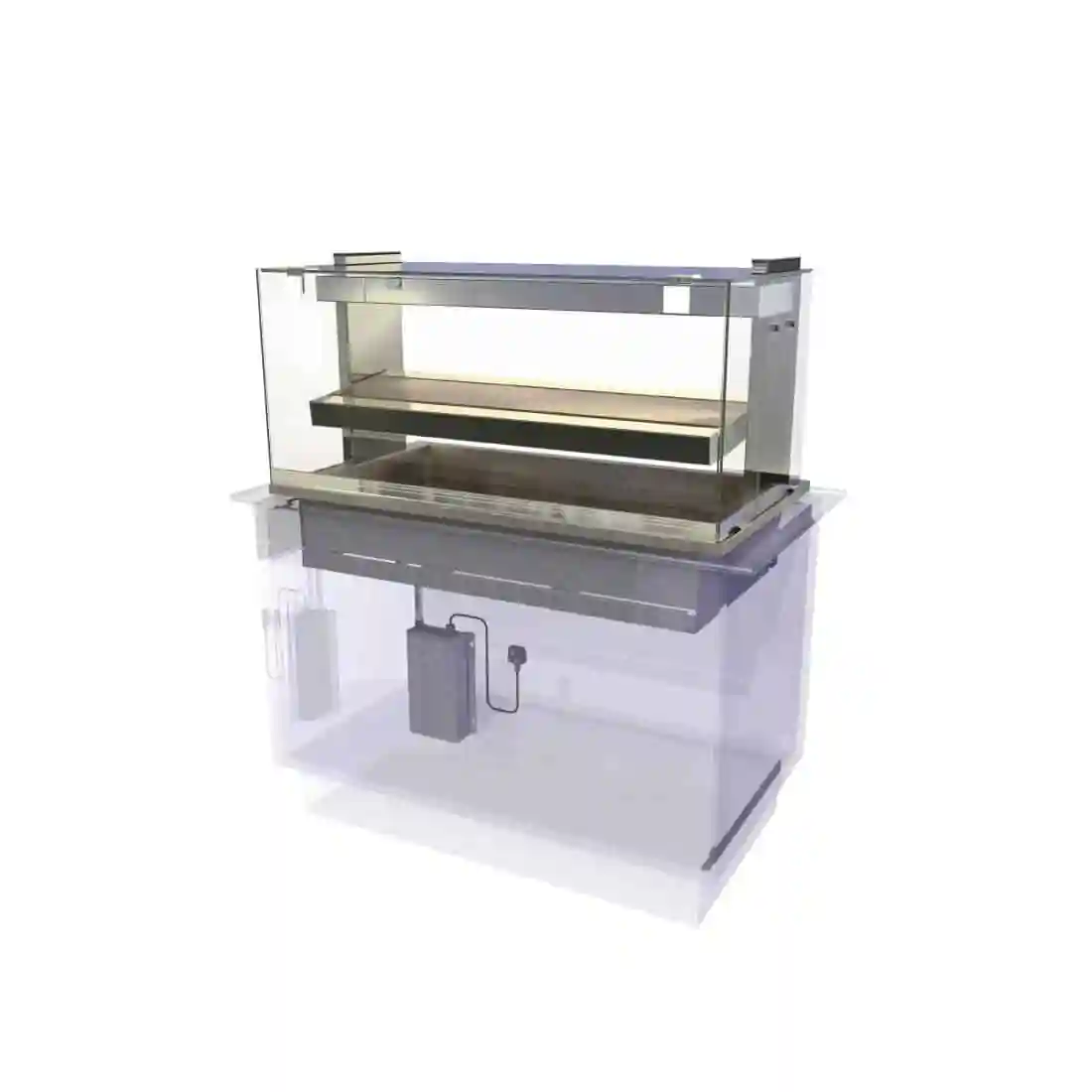

Kubus Drop In Heated Serve Over Counter KHDL3 - Food Warmer Plates & Heat Lamps
Capacity: 3x 1/1 GN. Assisted Service. 1175mm Wide
Original price was: £4,019.99£4,823.99.£3,309.59£3,971.51Current price is: £3,309.59£3,971.51. Excl. VATIncl. VAT
Description
Display, illuminate, heat and protect pre-cooked food with CED’s rectangular shaped Kubus assisted service heated deli drop in display. This 3/1 GN size hot display features a stainless steel heated 3/1 GN well area, inclined for improved customer vision. An adjustable temperature heated midshelf at eye level offers further hot merchandising space. The display fits into a pre-formed cut out made in a countertop . The assisted service superstructure is made from bright polished steel and aluminium rectangular profiles, with flat & toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the rectangular profile gantry & midshelf Base heat and surface heat can be adjusted & ‘locked’ from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switches, mounted at eye level on operator side of the display. The display has 24 hour operation & is factory set to hold food core at 85°C. Modular heater mat elements under the heated well area give even heat spread & the steel presentation surface makes for easier cleaning of pastry products etc. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN’s Sold Separately.
- Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
- Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
- 24 hour operation as standard
- Assisted service application
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
- Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical lead and 3 pin UK plug top. (13 Amp, 230v 2.9KW supply)
- Food display examples : Long term holding (2 – 4 hours) – bacon, sausage, stews, curry, chilli dishes. Short term holding (15-20 mins) – omelettes, eggs
- Features an inclined heated well area and overhead heated mid shelf for eye level food presentation
- Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN area. Lamps are housed within a rectangular profile gantry and mid shelf
- Base heat is provided to each 1/1 GN area by individual heater mats, mounted under the steel well surface
Additional information
| Pack Size Qty | 1 |
|---|---|
| Brand | Kubus |
| Weight | 107 kg |
Frequently Asked Questions
CED Kubus Drop In Heated Serve Over Display KHDL3 FAQs
What is the CED Kubus Drop In Heated Serve Over Display KHDL3 best suited to?
The CED Kubus Drop In Heated Serve Over Display KHDL3 is designed for catering operations that need prepared food held and presented efficiently during service.
What capacity does the CED Kubus Drop In Heated Serve Over Display KHDL3 provide?
The CED Kubus Drop In Heated Serve Over Display KHDL3 has a capacity of 3x 1/1 GN. Match this to the volume and service period for food being held.
What temperature range does the CED Kubus Drop In Heated Serve Over Display KHDL3 offer?
The temperature range is 85°C to 110°C. Use the thermostatic control to suit the food and service plan, and monitor holding temperatures as part of the venue's food-safety procedure.
How is the CED Kubus Drop In Heated Serve Over Display KHDL3 controlled during use?
The CED Kubus Drop In Heated Serve Over Display KHDL3 provides these operating features:
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
- Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical lead and 3 pin UK plug top. (13 Amp, 230v 2.9KW supply)
- Food display examples : Long term holding (2 - 4 hours) - bacon, sausage, stews, curry, chilli dishes. Short term holding (15-20 mins) - omelettes, eggs
- Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical lead and 3 pin UK plug top. (13 Amp
How is food held and arranged in the CED Kubus Drop In Heated Serve Over Display KHDL3?
The gastronorm arrangement is 1/1 GN full. Features an inclined heated well area and overhead heated mid shelf for eye level food presentation. Confirm the supplied pan configuration and sizes before choosing additional containers.
What are the dimensions and net weight of the CED Kubus Drop In Heated Serve Over Display KHDL3?
The CED Kubus Drop In Heated Serve Over Display KHDL3 measures 540(H) x 1175(W) x 660(D)mm and has a net product weight of 107kg. Check the delivery route, final position and required operating clearances before ordering.
What is the CED Kubus Drop In Heated Serve Over Display KHDL3 made from?
The CED Kubus Drop In Heated Serve Over Display KHDL3 has a Silver finish.
What power supply does the CED Kubus Drop In Heated Serve Over Display KHDL3 require?
The CED Kubus Drop In Heated Serve Over Display KHDL3 requires an electrical supply rated at 2.9kW, 230V, 13A. A plug is fitted.
How should the CED Kubus Drop In Heated Serve Over Display KHDL3 be cleaned and maintained?
Allow the CED Kubus Drop In Heated Serve Over Display KHDL3 to cool before cleaning its cupboard, shelves and food-contact surfaces with suitable non-abrasive products. Remove food debris promptly and dry the interior before the next service.
How can I identify the correct CED Kubus Drop In Heated Serve Over Display KHDL3 model for ordering and support?
Quote Smart Hospitality Supplies product code CW637 when ordering or requesting support. The model reference is KHDL3. It includes a one-year warranty.
