Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-ANE-HC-23 - Hoshizaki

Hoshizaki brand
Checking delivery information...

Output: 225kg/24hr. M Cube

Original price was: £4,968.99.Current price is: £3,555.84. Ex. VAT

We are £54.15 cheaper than the UK’s leading brand!
Price Checked: 07/10/26

Description

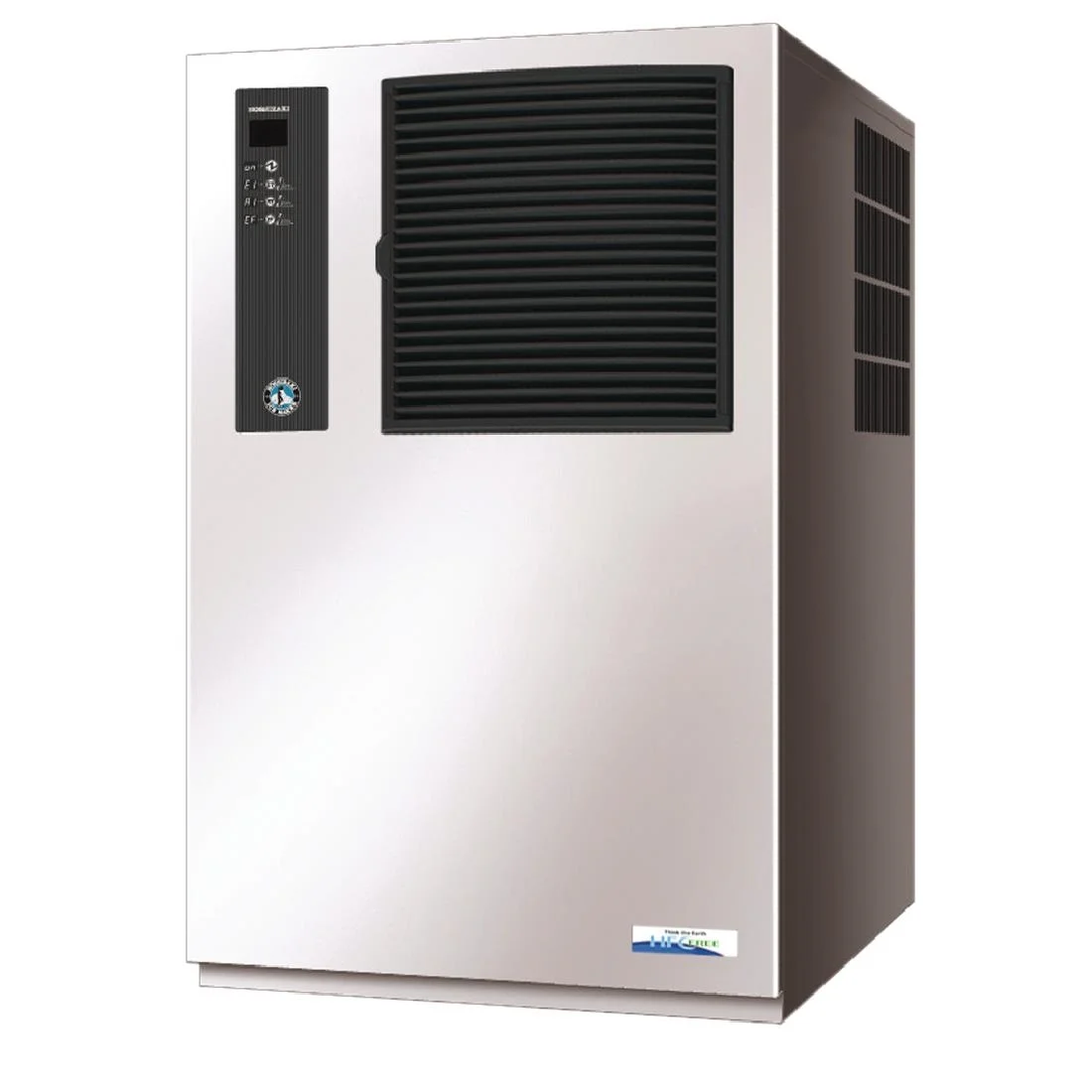

The Hoshizaki IM240-ANE-HC-23 is a modular HydroCarbon Ice Maker head designed to be compatible with all Hoshizaki modular bins giving the flexibility to have an ice system solution perfectly matched to your requirements. This particular head produces up to 225kg of ice per 24 hours and it produces medium ice cubes (23 x 28 x 28 mm). This is the new HC model using 27% less energy and 7% less water than its predecessor, saving on running costs.

Please note: limescale can cause serious damage to your ice machine. We recommend a water filter is fitted to reduce limescale and maintain ice quality.

  • Output: up to 225kg per 24 hours (Medium cubes: 23 x 28 x 28 mm)
  • Uses Hoshizaki closed cell system offering ultimate contamination protection
  • Microcomputer control manages the ice making process, ensuring optimal performance
  • Installed leak detector ensures automatic shutdown in event of leaking gas
  • Gravity drain
  • Site call/survey included as standard
  • Modular head compatible with all Hoshizaki modular storage bins for added flexibility
  • Eco Friendly HFC free foam injected polyurethane for insulation preserves ice quality and consistency
  • HC model using 27% less energy and 7% less water than its predecessor saving on running costs

Additional information

BrandHoshizaki
Dimensions880(H) x 560(W) x 700(D)mm
MaterialStainless Steel
Is A Plug Fitted?Yes
Voltage230V
Main ColourSilver
Secondary ColourSilver
Manufacturers Warranty2 Years
Refrigerant TypeR290 / GWP 3
Product FamilyRefrigeration
PowerPlug
MobilityFeet
Delivery To Irelandcallfordelivery
Number Of Fridge Doors1
Fridge Door TypeHinged
Sub CategoryIce Makers
Product Cooling TypeAir
Product StyleCube
Product TypeIce Machines
Product Depth700
Manufacturers EIRE Warranty1 Year On-Site Parts & Labour
Fridge FinishStainless Steel
Height (mm)880
Width (mm)560
Cooling TypeIce Maker
Product Weight89kg
SectionHoshizaki Ice Machines
Power Output225kg/24hr
Power Type860W, 3.7A
Supplier ReferenceIM-240-APE-23
Wattage860
Weight78 kg

Frequently Asked Questions

Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 FAQs

What is the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 best suited to?

The Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 is designed for bars, cafés and hospitality venues that need a dependable on-site ice supply. Its commercial format supports an efficient, repeatable workflow. Output: up to 225kg per 24 hours (Medium cubes: 23 x 28 x 28 mm). Its format is most valuable where the available capacity, services and operating pattern match the demands of the venue.

How much ice can the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 produce and store?

The Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 is configured for commercial output. Output: up to 225kg per 24 hours (Medium cubes: 23 x 28 x 28 mm); Compatible with CY212,CY213 & CY214 storage bins and top kits, depending on ice storage requirements. This helps buyers compare the appliance with expected peak demand rather than relying on its external size alone.

How is the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 controlled during use?

Useful operating features include:

  • Microcomputer control manages the ice making process, ensuring optimal performance
  • Installed leak detector ensures automatic shutdown in event of leaking gas
  • HC model using 27% less energy and 7% less water than its predecessor saving on running costs

These controls help staff match the appliance to the task while keeping routine operation clear and repeatable.

Does the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 need a mains water or drainage connection?

Gravity drain. HC model using 27% less energy and 7% less water than its predecessor saving on running costs. Position the appliance close to the services it genuinely requires and use clean potable water for ice production.

What type or size of ice does the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 make?

Output: up to 225kg per 24 hours (Medium cubes: 23 x 28 x 28 mm). Choose the ice format that best suits the drinks, display or cooling task.

What are the dimensions and net weight of the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23?

The Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 measures 880(H) x 560(W) x 700(D)mm and has a net product weight of 89kg. Check the full delivery route, final operating position and required working clearances before ordering.

What is the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 made from?

The Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 uses Stainless Steel construction, has a Silver finish, is supported by fixed feet. The materials and format are designed to combine durability with practical day-to-day handling.

What power supply does the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 require?

The Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 requires a rated electrical input of 860W, 3.7A and a 230V supply. A plug is fitted.

How should the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 be cleaned and maintained?

Empty old ice, clean and sanitise the storage area, scoop and water-contact parts regularly, and run the self-clean function where fitted. Keep ventilation openings clear and follow the descaling routine for local water conditions.

How can I identify the correct Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-APE-23 model for ordering and support?

Use Smart Hospitality Supplies product code CY205 when identifying this appliance. The model reference is IM-240-APE-23. It carries a 2 Years warranty. Keeping these identifiers with your purchase records makes future parts, servicing and product enquiries much more precise.

About Hoshizaki

Hoshizaki brand
Excellent value stainless steel construction ice makers with foam injected poyurethane insulation.
