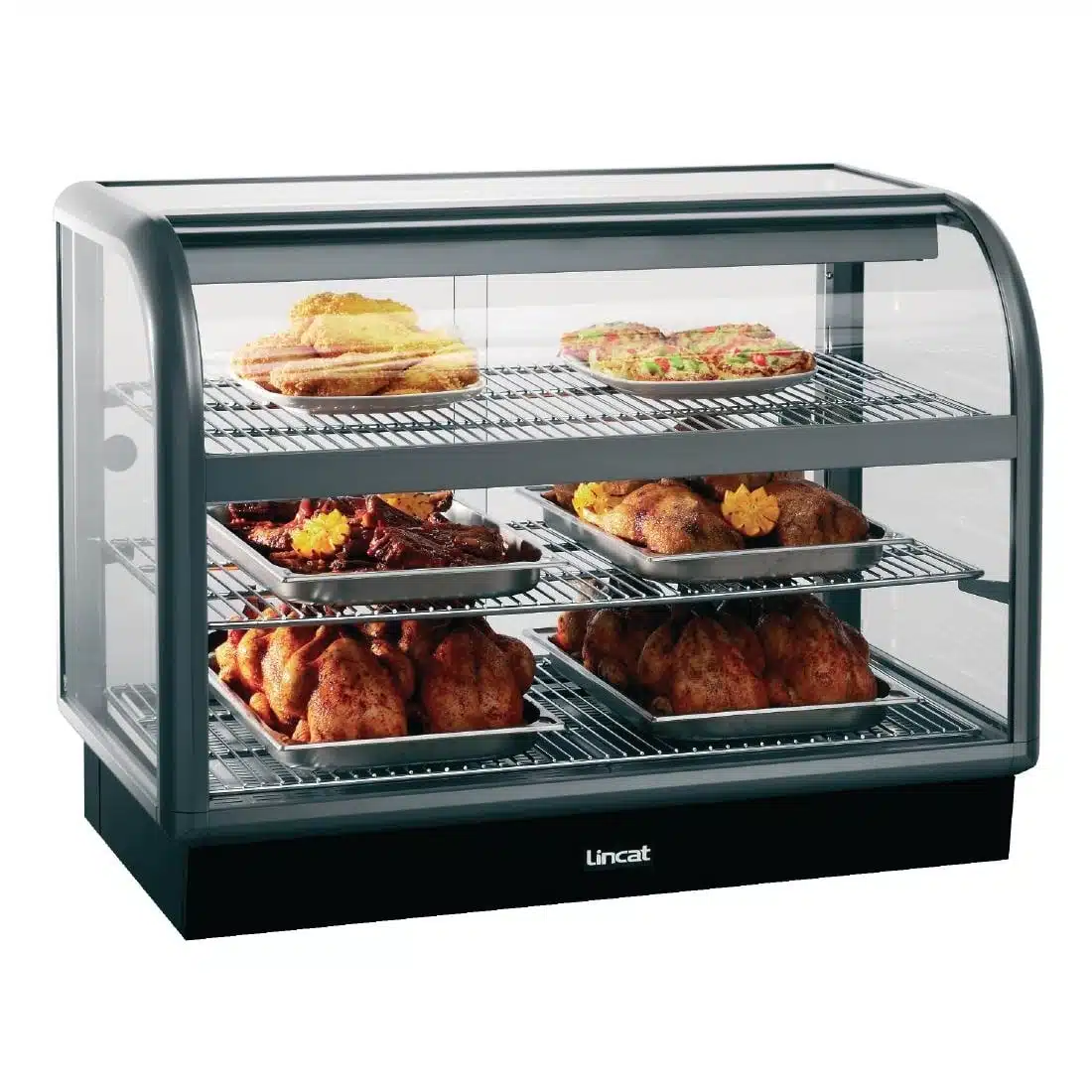

The Lincat Seal 650 is designed for busy counter-service operations displaying heated food products. Its back-service layout lets staff load and serve from behind the counter, while the large glazed display presents products to customers from the front.

An elegant curved front, clear viewing panels and an illuminated interior give customers all-round visibility of the contents. The open visual presentation is intended to improve product appeal and support sales from a busy service counter.

This back-service model has a 3-tier arrangement with 3 chrome-plated shelves. The adjustable shelf heights accommodate differently sized products, while 2 sliding rear doors provide staff access from behind the counter.

An integral water bath with a lid can help keep suitable products such as pastry moist when the unit is lightly loaded. By reducing drying, it helps maintain food condition for longer and can reduce avoidable waste. For best results, fill it with warm water, check the level occasionally and avoid overloading the display, which can cause condensation on the glass.

The independently switchable, daylight-balanced illumination enhances the appearance of displayed products. Clip-in fluorescent light tubes are designed for straightforward replacement, helping operators maintain an evenly lit presentation.

The unit has an extruded aluminium frame with a metallic silver finish, chrome-plated rod shelves and toughened-glass panels. The clear glazed display supports visibility, while the sleek metal-framed appearance is designed to suit a customer-facing counter.

Yes. Its profile is consistent with related refrigerated, heated and ambient models, allowing operators to plan an attractive modular installation while making efficient use of counter space.

The C6H/100B measures 755 mm high, 1000 mm wide and 650 mm deep. These dimensions should be checked against the counter surface, access route and the working space needed behind the sliding rear doors.

The C6H/100 family uses a 230V, 50Hz single-phase supply and is rated at 2018 W, approximately 2.02kW. It is supplied with a 13A plug, which must remain accessible, and the appliance must be earthed.

The C6 electronic controller is factory set to 85°C. Allow about 30 minutes for the display to reach that setting before loading it with pre-heated food. The controller shows the air temperature measured inside the unit, not the temperature of the food.

Disconnect the unit from electricity and let it cool before cleaning. Use mild detergent in hot water with a soft cloth, avoiding abrasive creams, scourers and water jets. The rear doors, shelves and base plates are removable, and the shelves, supports and base plates can be washed in a dishwasher.

Install it on a sound, level, heat-resistant work surface such as stainless steel or Formica. Keep the plug accessible and do not obstruct warm-air circulation through and around the shelves with food or aluminium foil. The external surfaces and base become hot in use.

The C6 pack includes the heated merchandiser with cable and 13A plug, 3 chrome-plated shelves, 2 anodised base plates, 2 sliding doors, a crumb tray, an integral water bath with lid, a 3 mm Allen key, a user guide and a guarantee card.

Smart UK product code M870 identifies this Lincat Seal 650 back-service heated display, while the manufacturer reference is C6H/100B. The 1000 mm width, 650 mm depth and 3-tier arrangement provide additional checks when distinguishing it from other Seal models.
