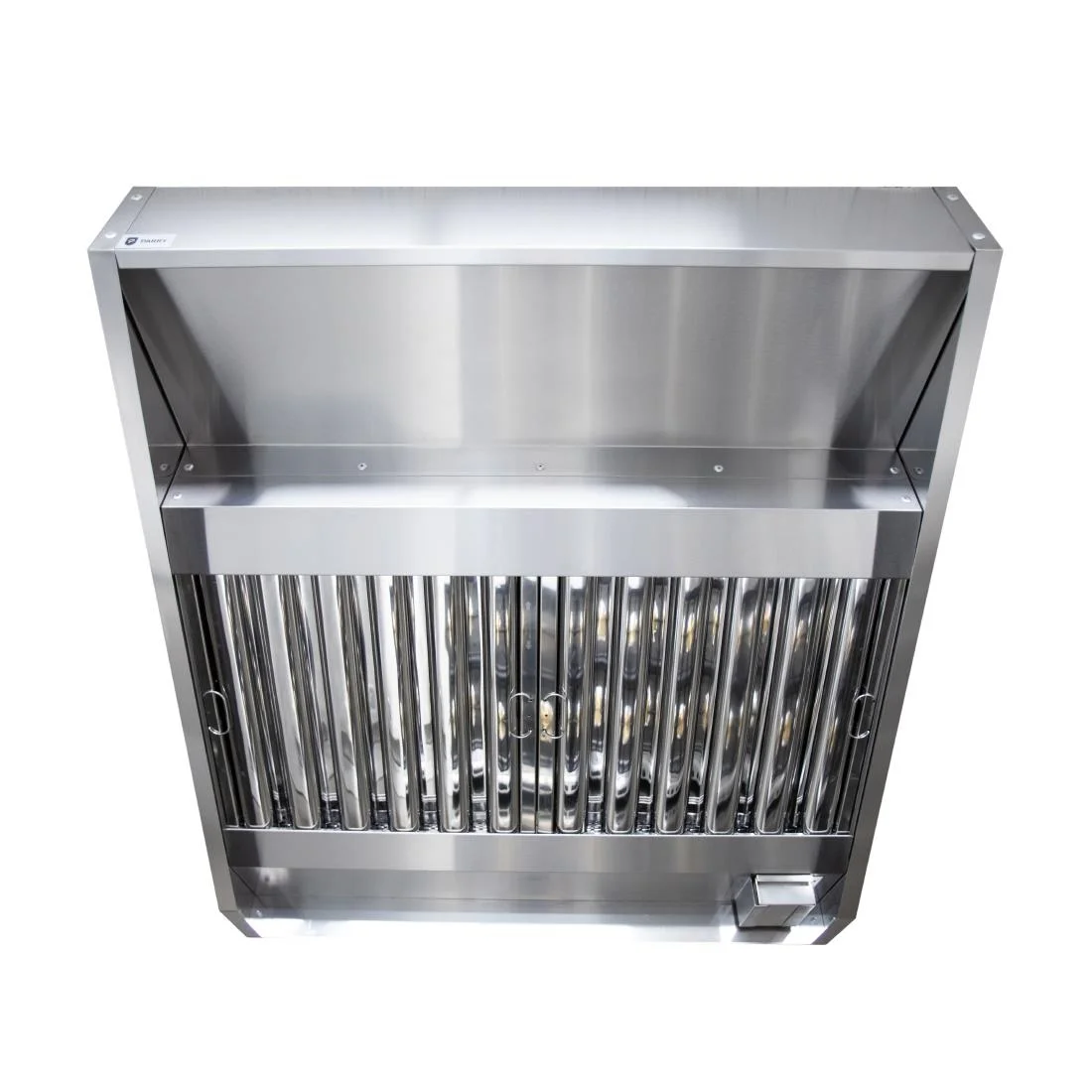

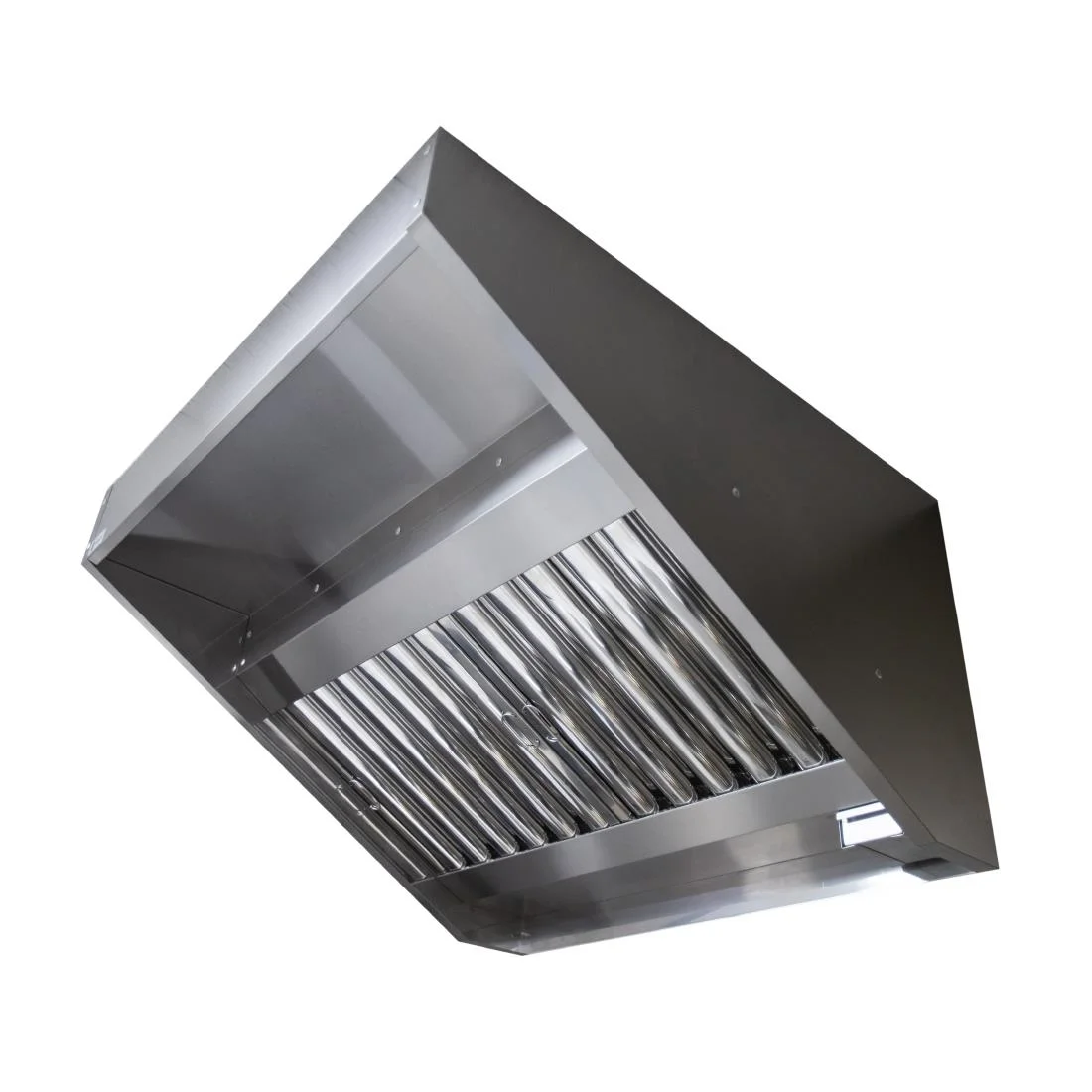

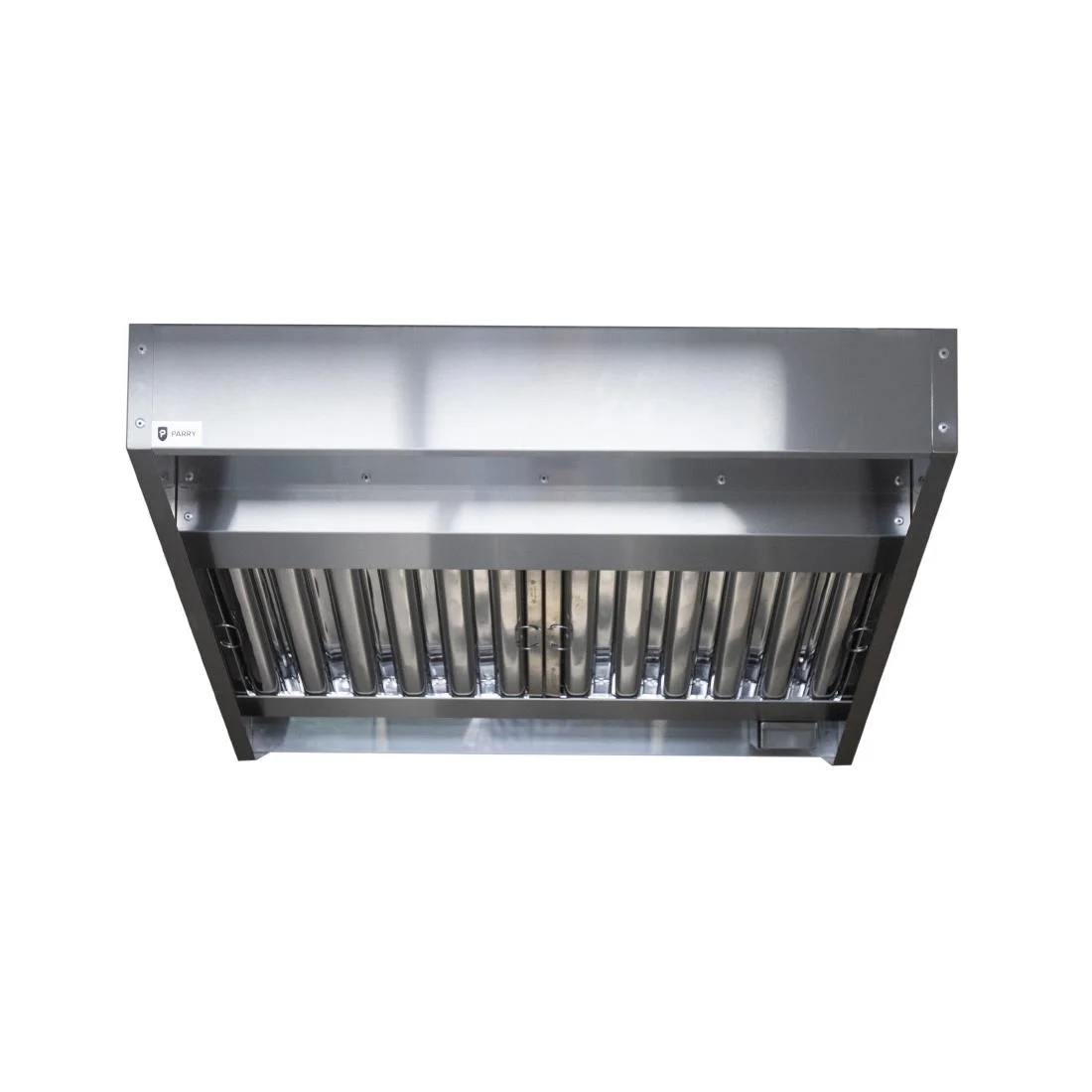

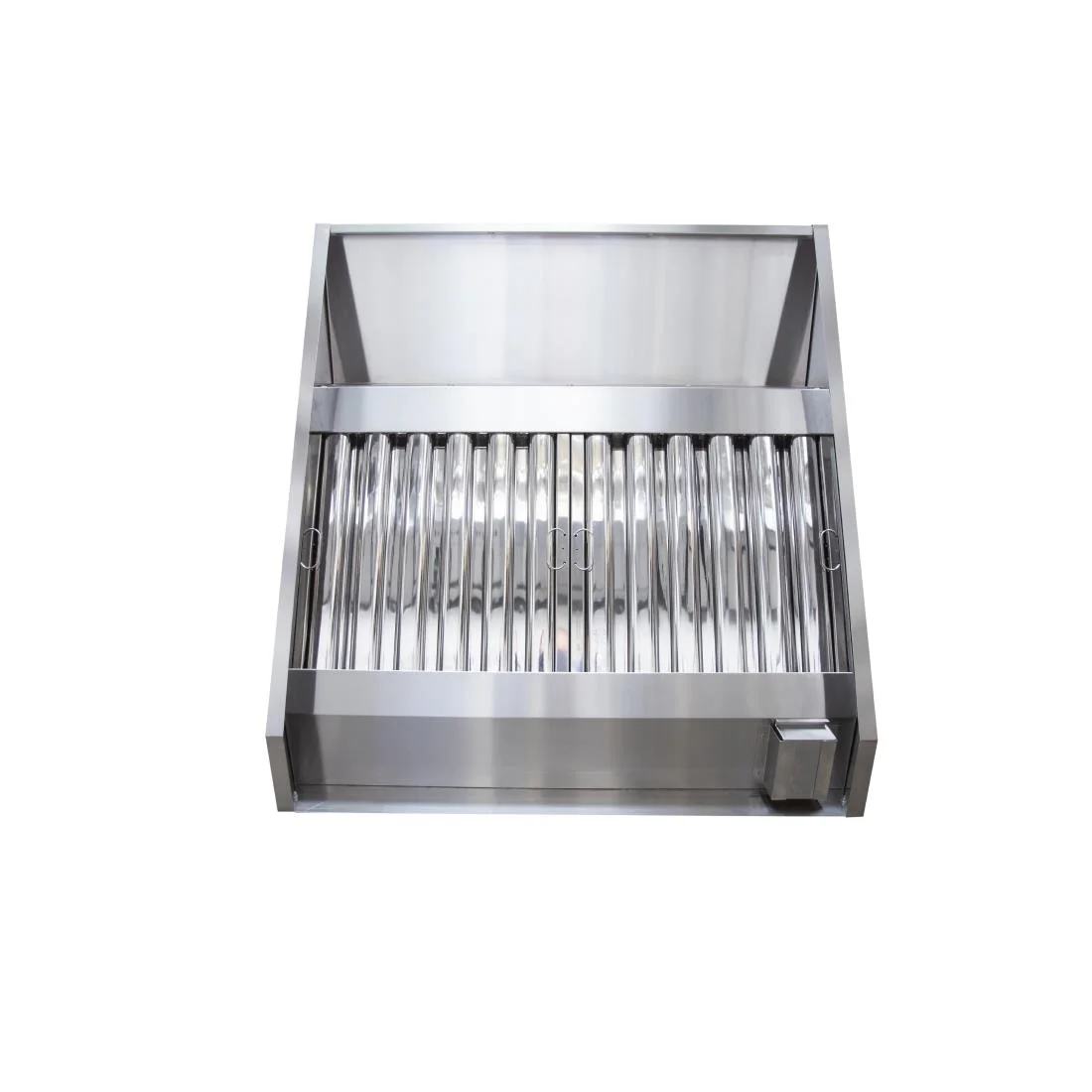

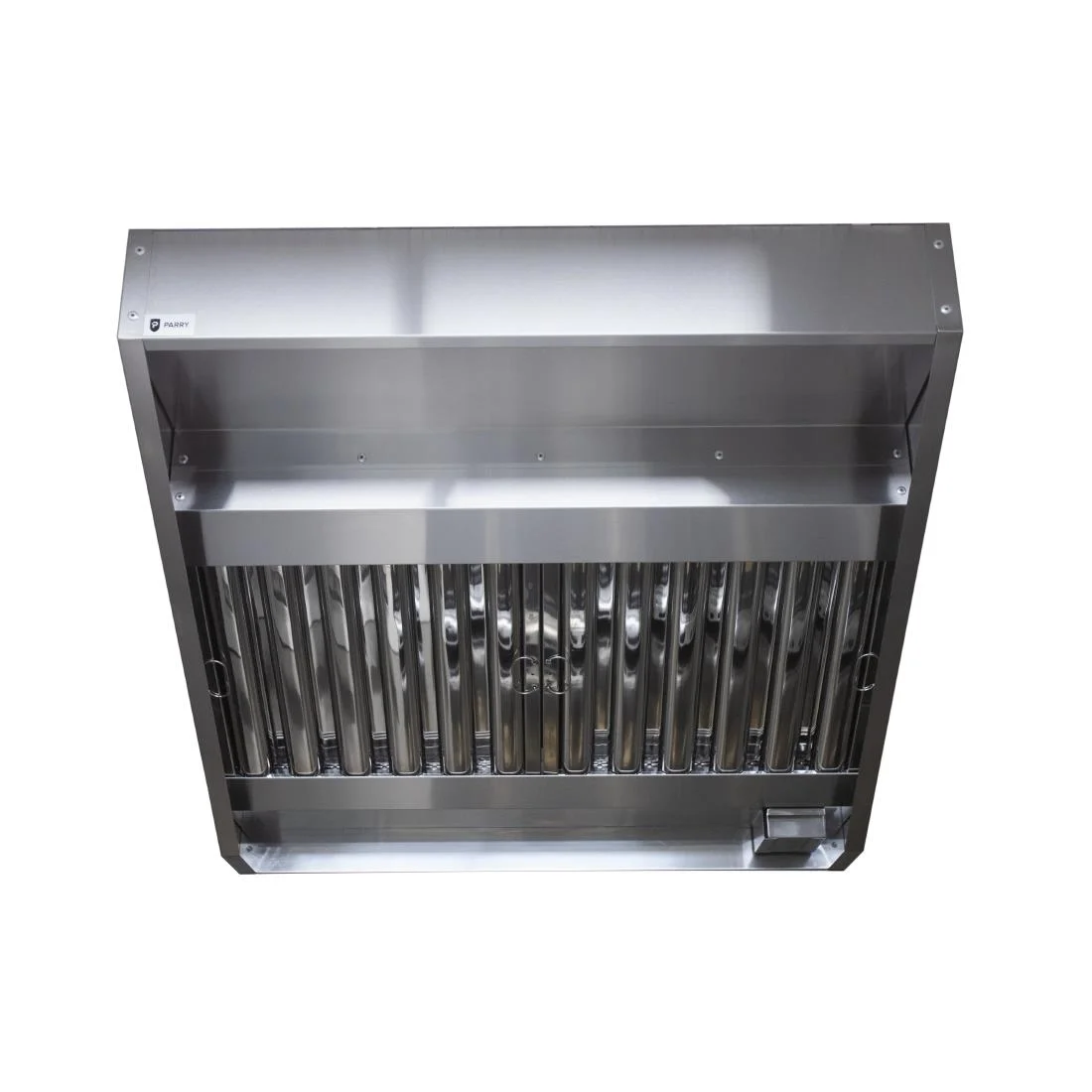

It is a kitchen canopy designed to support fume filtration and kitchen filtration by extracting cooking gases, fumes, heat, grease and excess hot air. The internal-fan canopy helps maintain a more uniform airflow above catering appliances and is suitable for equipment up to 700 mm deep.

Its maximum airflow rate is 0.64 m³/s. A manual external speed selector lets the operator adjust extraction to suit changing kitchen activity rather than running the fan at one fixed setting.

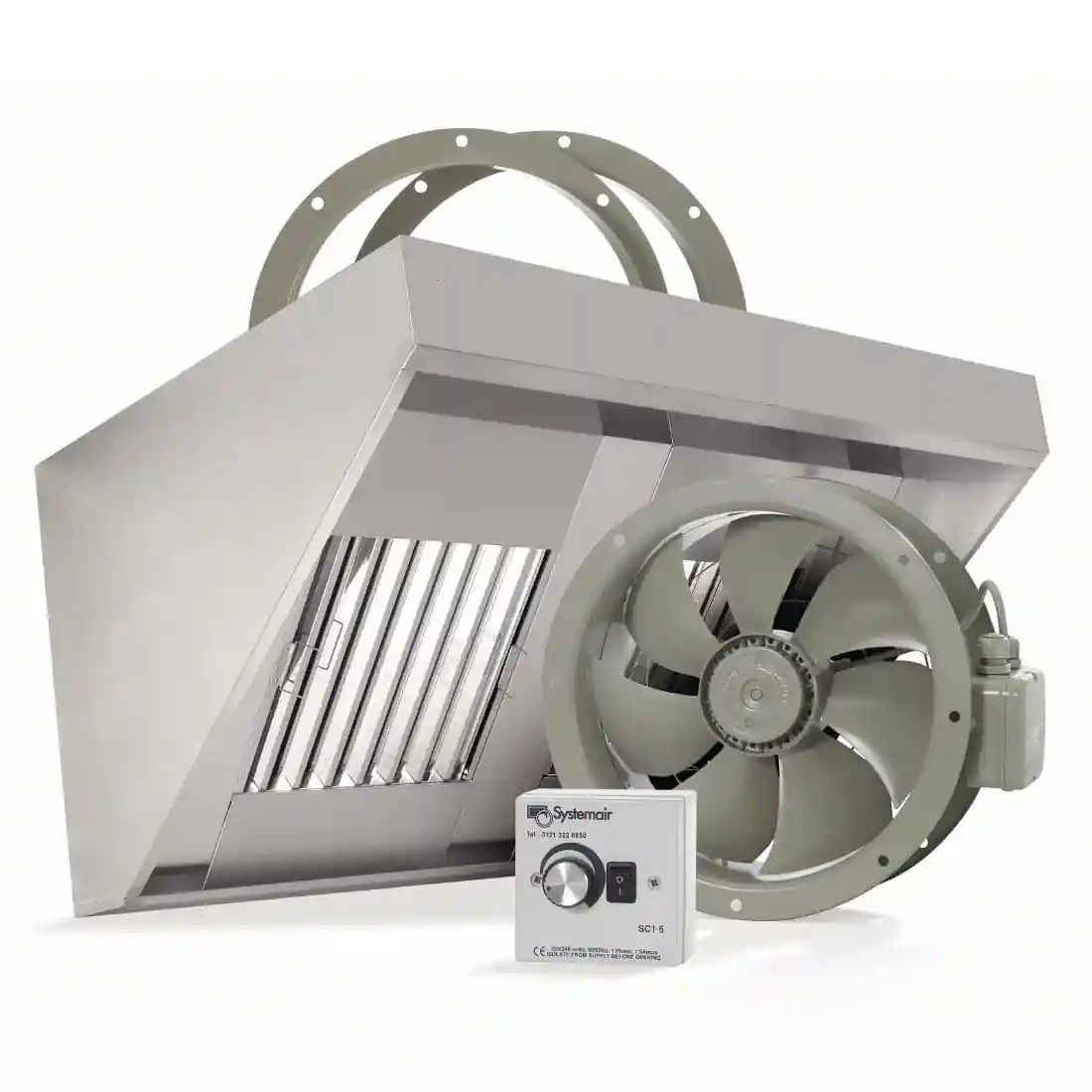

Yes. An internal fan is fitted as standard, and the internal-fan package also includes the matching flanges and speed controller. An external-fan configuration can be requested when the installation requires a different ducting arrangement or a more difficult extraction run.

It measures 600(H) x 1200(W) x 1000(D) mm. The 1200 mm width and 1000 mm depth should be considered alongside the cooking equipment below, the available wall or ceiling structure and the planned extraction route.

The top cut-out is suitable for connection to 350 mm ducting. Ducting itself is not included, so the installer must plan the route, provide the appropriate ductwork and ensure that the completed extraction system is suitable for the equipment positioned below.

The canopy is rated at 368 W, 13A and 230V, with a plug-powered connection. The canopy must be earthed, and power should be isolated before installation, cleaning or maintenance work begins.

It weighs 34 kg. The installer should confirm that the selected wall or ceiling structure can support the canopy and use fixings appropriate to the construction material and installation position.

It has an easy-clean stainless-steel construction with a silver finish. Stainless steel provides a practical surface for a busy catering environment, while regular cleaning prevents grease deposits from accumulating around the filters, channels and fan.

The grease baffle filters are removable and dishwasher safe. They can also be removed and washed in hot soapy water after the canopy and equipment below have cooled and the mains power has been switched off. Never clean the canopy with a water jet.

The easy-clean fat collection drawer should be checked and emptied as it fills. Clean the surrounding filter channel regularly, and keep the internal fan blades free from grease because a build-up can reduce extraction performance and make the fan noisy.

Check the speed-controller setting, clean grease from the fan blades and make sure the filters and ducting are not blocked. If extraction remains weak, the fan position, wiring and canopy sizing should be assessed by a suitably qualified professional.

Its barcode is 5050984358593, and the Parry supplier reference is GT1210IF. The pack size is 1 canopy, giving buyers the identifiers and order quantity needed to distinguish this 1200 mm general canopy from other sizes and configurations.

It includes a 2-year parts-only warranty. Labour is not included in that warranty wording, so operators should retain the product and installation details needed when contacting their distributor about replacement parts or service support.
