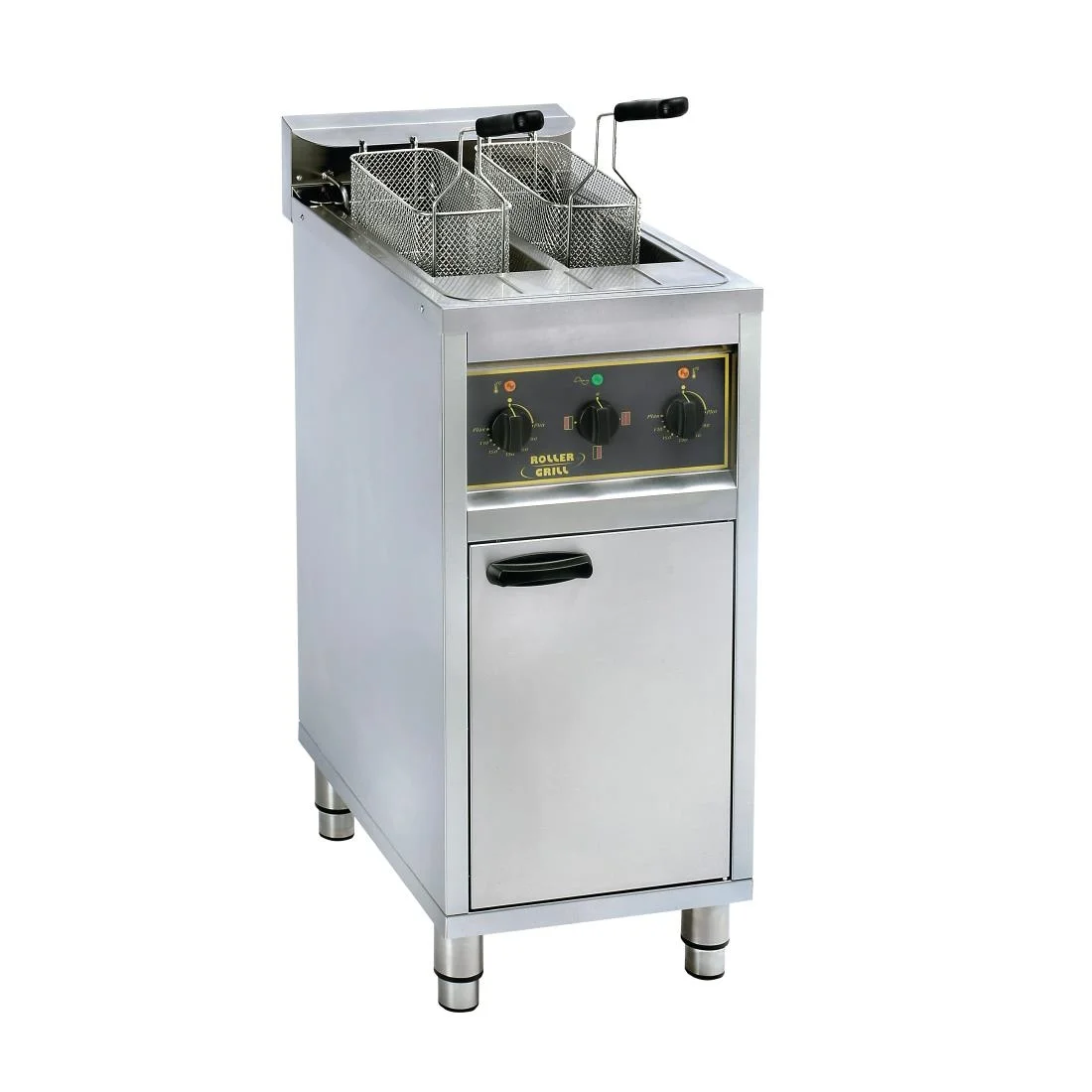

It is designed for high-output fast food businesses that need to run two frying loads during busy service. The twin-tank layout helps operators separate products or use both tanks during peak periods, while its floor-standing format suits a permanent commercial frying station.

The fryer has 2x10Ltr tanks, giving a combined oil capacity of 20Ltr. Its 2-tank and 2-basket arrangement allows separate frying loads, and the maximum food charge is 1.5kg per tank.

This is a 12kW 3-phase electric fryer for a 380V supply. The RFE20C electrical data covers 380-415V 3N~ at 26A per phase and uses a five-wire connection with 3 phases, neutral and earth, so the site supply must be suitable for this commercial load.

The fryer is 980 mm high and 400 mm wide. Its narrow floor-standing format provides two frying tanks within a compact frontage; its narrow frontage helps conserve floor space.

The fryer has a silver stainless steel body. This construction is appropriate for a visible commercial cooking area and gives the unit a practical external surface for regular non-abrasive cleaning.

The fryer is supported on feet and does not have an integrated undershelf. It is therefore intended to stand directly in its allocated floor position rather than provide built-in storage below the frying section.

The operating controls are positioned at the front for convenient access, including the safety thermostat reset button. The safety thermostat automatically stops heating if the fryer overheats or lacks oil; the appliance should then be disconnected and allowed to cool before the cause is checked.

Its baskets have heat-resistant handles to support safer handling during service. A large-capacity oil drain valve helps operators remove used oil during planned maintenance, after the fryer and oil have cooled completely.

Each stainless steel container has a cold zone below the heating element. Food debris settles into this cooler area instead of carbonising as quickly, which helps extend the useful life of the frying oil when the fryer is operated and maintained correctly.

Close the drain valve, seat the control unit fully and add oil while the heating elements are cold. The oil must remain between the MIN and MAX marks. Never energise the fryer without oil covering the elements, and do not use solid fats that could damage them.

The green light shows whether the machine is switched on. The orange light remains illuminated while the oil is heating and goes out when the selected temperature has been reached, indicating that the fryer is ready for cooking.

A microswitch prevents operation when the removable control unit is not inserted correctly. This positioning interlock works alongside the overheat safety thermostat, but operators should still confirm that the control unit is fully seated before switching on.

Allow the appliance and oil to cool completely, disconnect the power and remove the control unit. The removable element pack improves access for cleaning. Use non-abrasive products, warm water and washing liquid on suitable surfaces; never use a water jet or immerse the control unit.

Place the fryer on a level, heat-resistant surface with at least 10cm between it and a wall or partition. Keep it away from combustible materials and position it so the electrical connection remains accessible. Fixed electrical connection work should be entrusted to a qualified person.

The carton contains the fryer, one pot, 2 baskets with insulated handles, one colander, 2 lids with handles and the operating instructions. The lids should be kept near the fryer but must not be placed over it while frying is under way.

The RFE20C weighs 38 kg. This should be considered when planning delivery, positioning and any later movement of the appliance; it must not be moved while operating or while the oil remains hot.

The fryer includes a 2-year parts and labour warranty. The operating and maintenance instructions should be followed, as incorrect installation, poor maintenance, overloading or unauthorised repair may affect warranty support.

It is a Roller Grill fryer with manufacturer reference RFE 20 C and Smart UK SKU GP313. The appliance is made in France, and its complete model and serial details should be used when requesting service or replacement parts.
