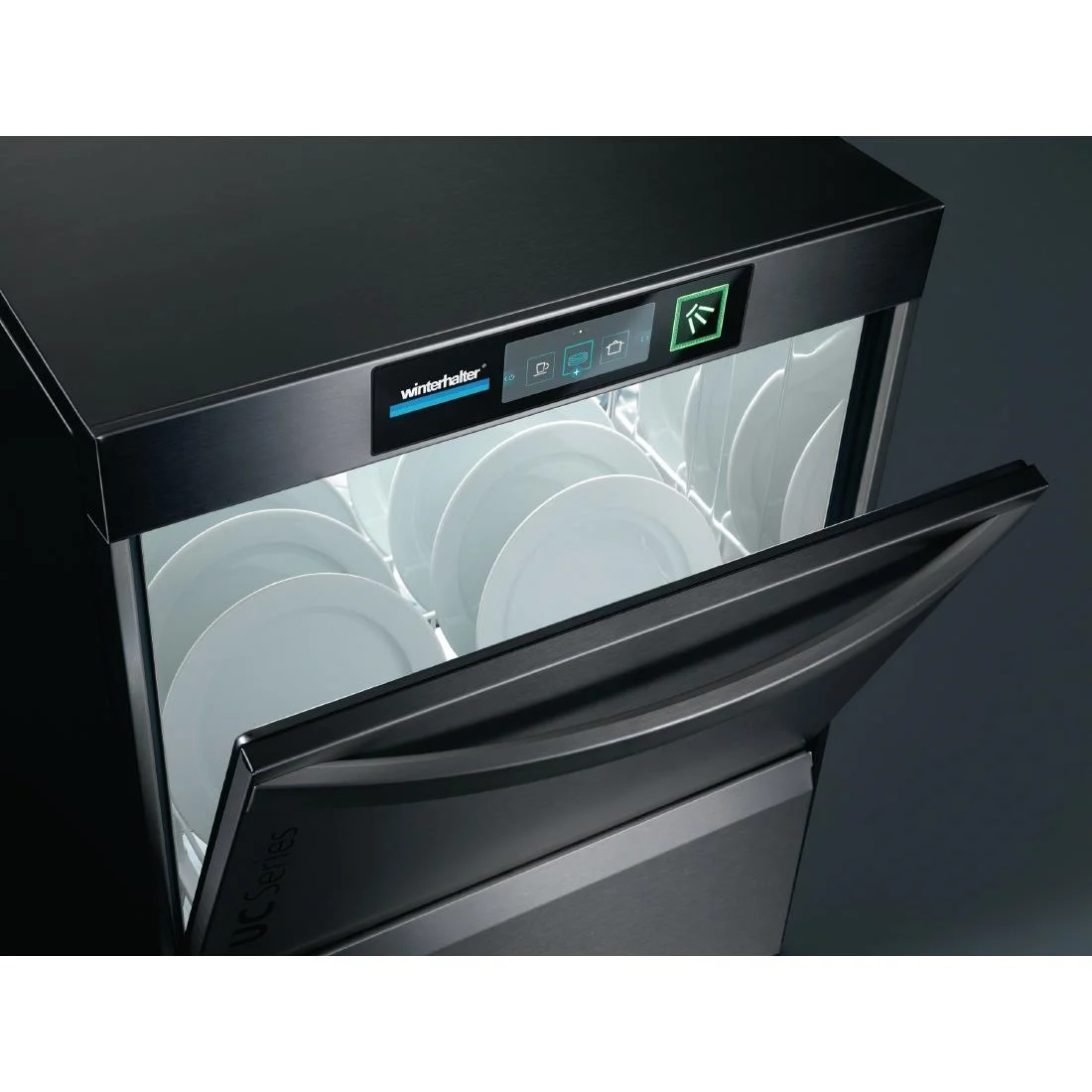

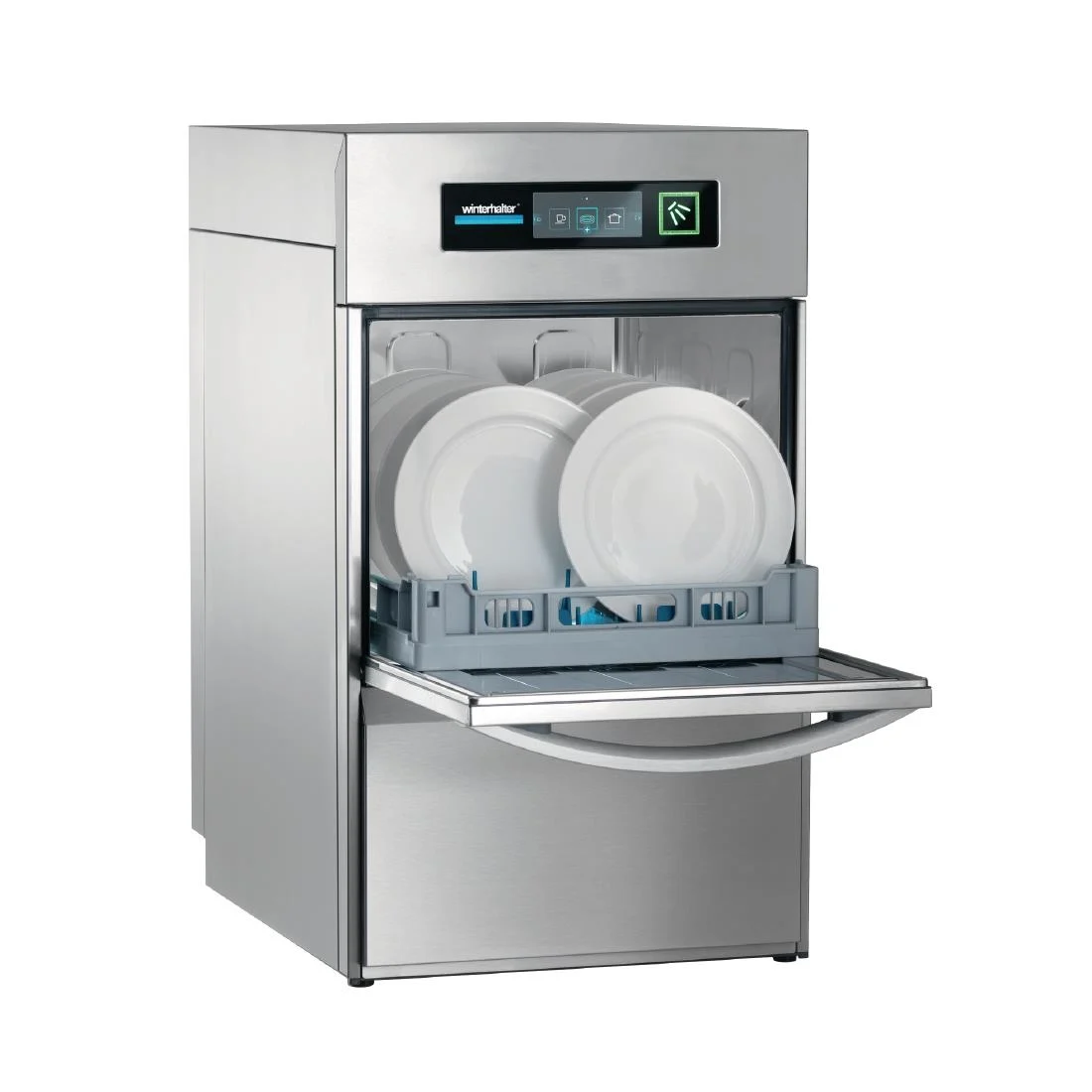

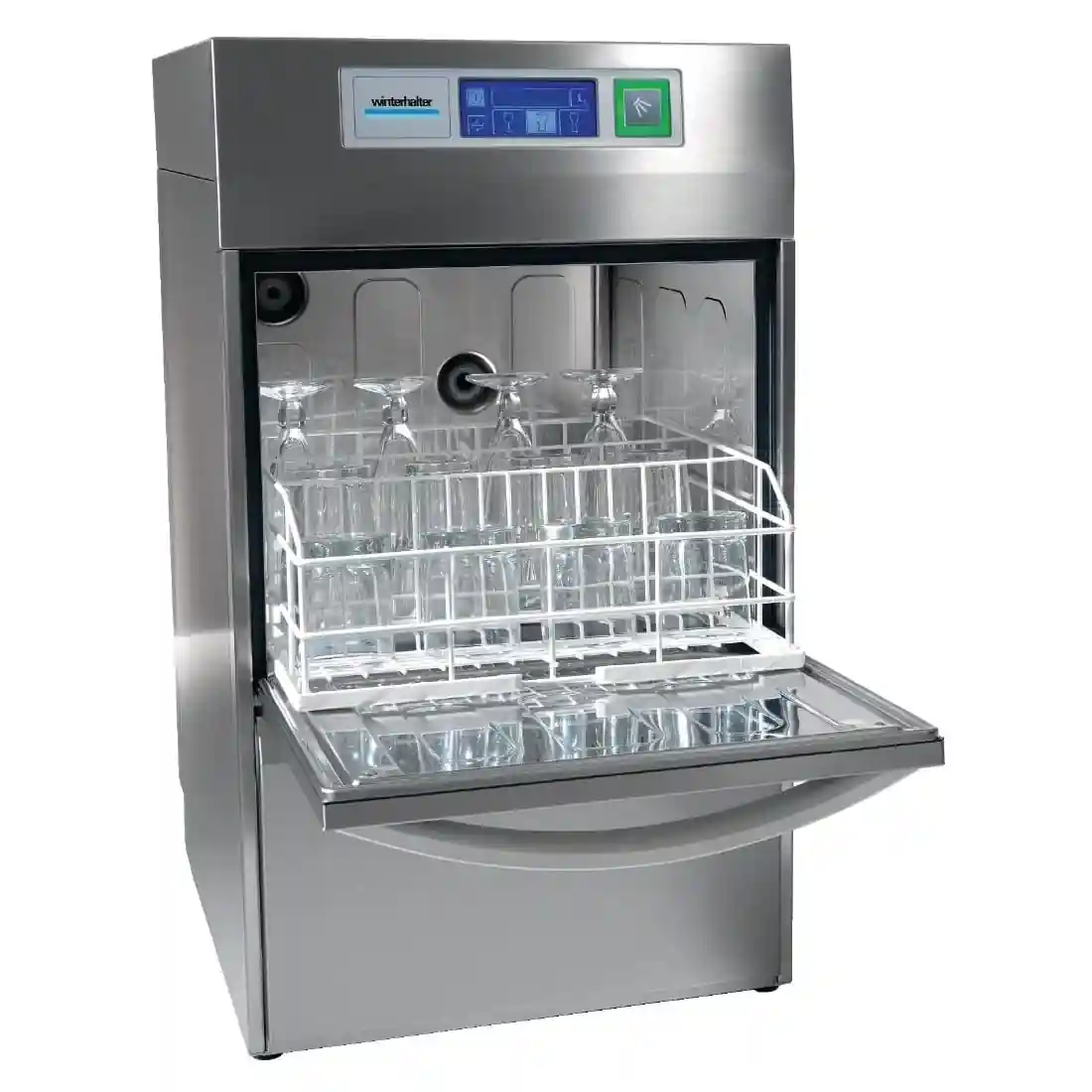

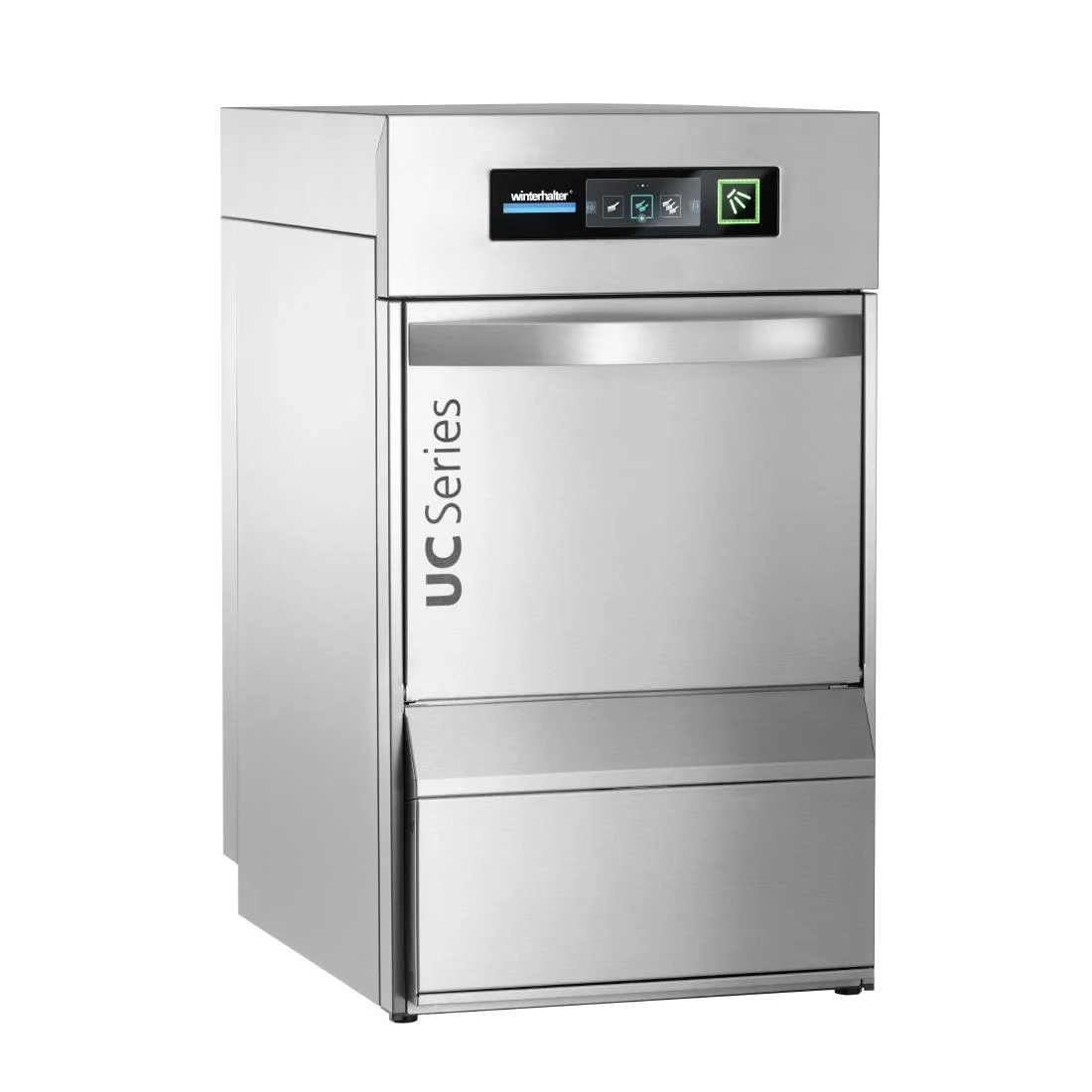

The Winterhalter Undercounter Dishwasher UC-S-E Energy is designed for hospitality operations that need consistent washing performance and a practical undercounter footprint. Its commercial format supports an efficient, repeatable workflow. VarioPower technology adjusts rinse pressure to maximise performance. Its format is most valuable where the available capacity, services and operating pattern match the demands of the venue.

The Winterhalter Undercounter Dishwasher UC-S-E Energy has capacity 32 glass racks/ 28 dish racks/hr and output 512 glasses/hr or 252 plates/hr. This helps buyers compare the appliance with expected peak demand rather than relying on its external size alone.

The operating temperatures are Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C. This supports controlled wash and rinse performance; use the programmed settings and chemical dosing arrangements appropriate to the load.

Useful operating features include:

• Up to three programmable wash cycles
• Self-cleaning programme ensures maximum hygiene
• Precise detergent & rinse aid dosing optimises washes
• VarioPower technology adjusts rinse pressure to maximise performance
• Minimum requirement of 1.5 bar incoming water pressure

These controls help staff match the appliance to the task while keeping routine operation clear and repeatable.

The machine uses a 400(W) x 400(D)mm basket format. This is a key compatibility check when planning racks, plate loading and movement between scraping, washing and unloading areas.

The drainage arrangement is Drain Pump. Highly efficient and designed to significantly reduce water and energy use. Innovative heat exchange saves around 100W per cycle; Precise detergent & rinse aid dosing optimises washes; Minimum requirement of 1.5 bar incoming water pressure; WRAS compliant air gap. Confirm incoming water pressure, water treatment, chemical connections and drain position with the installation requirements.

The Winterhalter Undercounter Dishwasher UC-S-E Energy measures 820(H) x 460(W) x 603(D)mm and has a net product weight of 64kg. Check the full delivery route, final operating position and required working clearances before ordering.

The Winterhalter Undercounter Dishwasher UC-S-E Energy uses Stainless Steel construction, has a Silver finish. This commercial format supports regular cleaning and helps the appliance fit into a busy back-of-house workflow.

The Winterhalter Undercounter Dishwasher UC-S-E Energy requires a rated electrical input of 20A single phase as standard. Please inform us when ordering if you require 3 phase and a Single or Three Phase connection. This is a specialist commercial connection, so confirm the site supply and arrange installation by a suitably competent engineer. Allow for any water, drainage or ventilation services required by the appliance and its installation instructions.

Run the cleaning programme where fitted, empty and rinse filters, inspect wash arms and keep detergent and rinse-aid systems correctly supplied. Drain and clean the machine in line with the operating instructions. Helpful care features include Up to three programmable wash cycles and Self-cleaning programme ensures maximum hygiene.

Use Smart Hospitality Supplies product code GF417 when identifying this appliance. The model reference is UC-S-E-ENERGY. It carries a 3 Years On-Site Parts & Labour warranty. Keeping these identifiers with your purchase records makes future parts, servicing and product enquiries much more precise.
