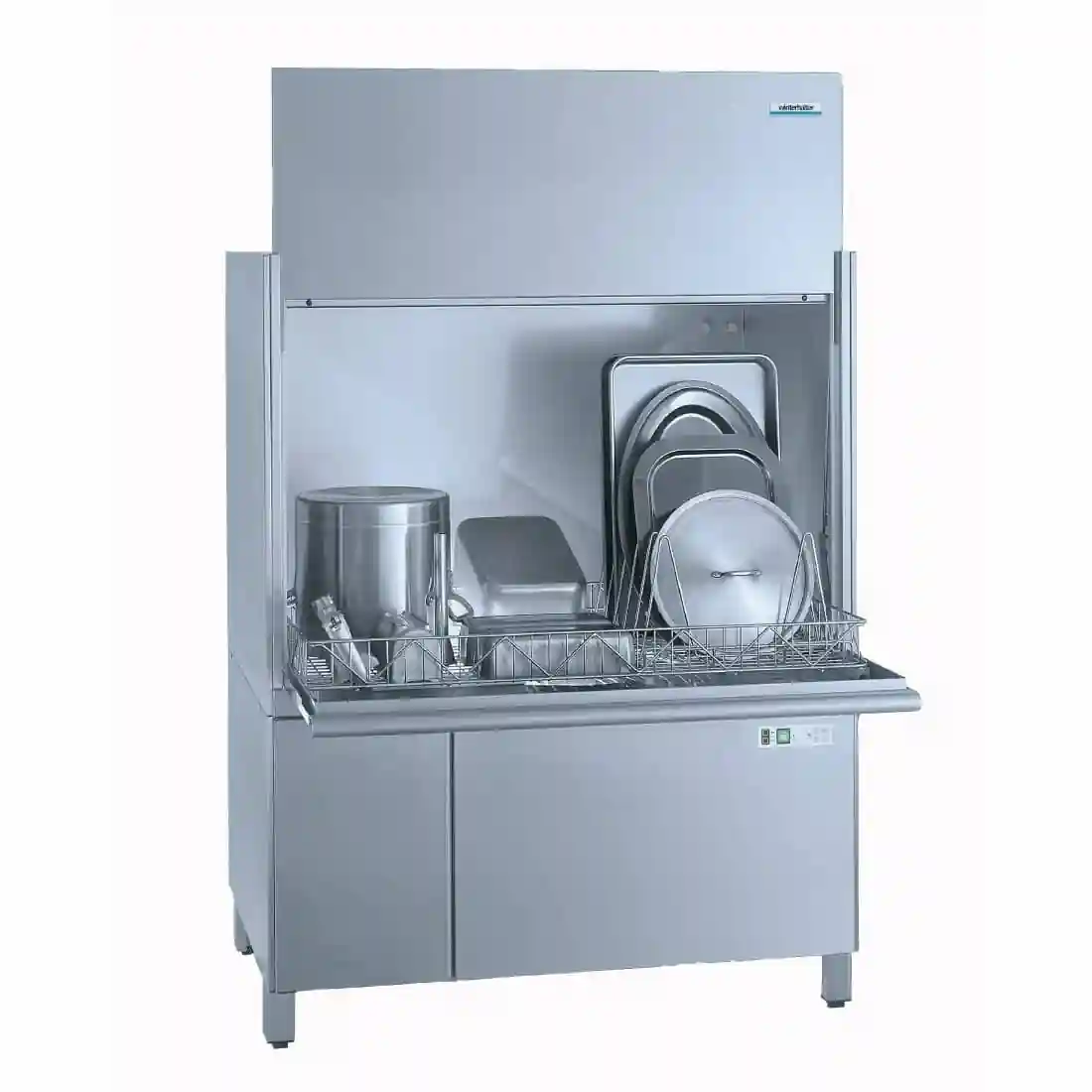

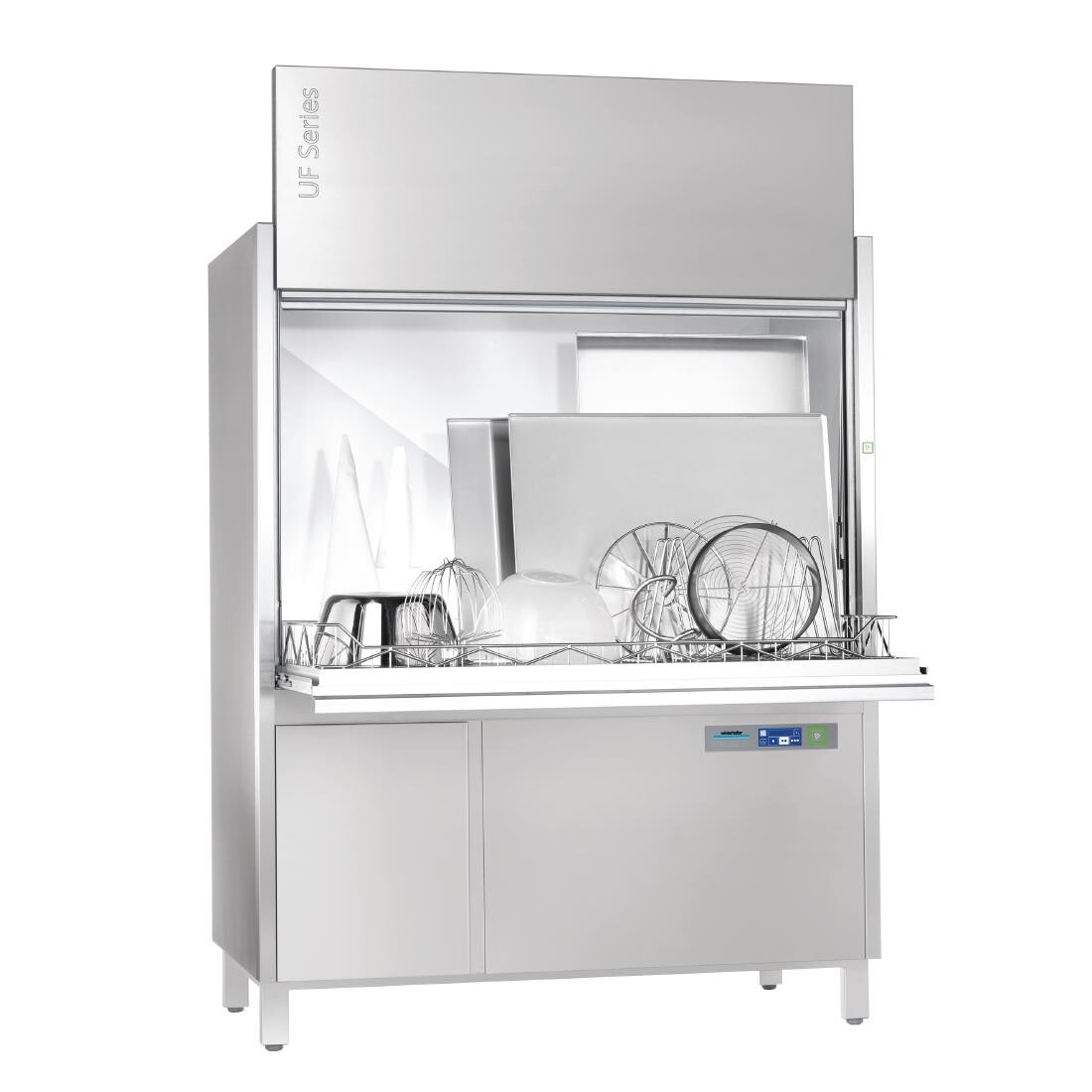

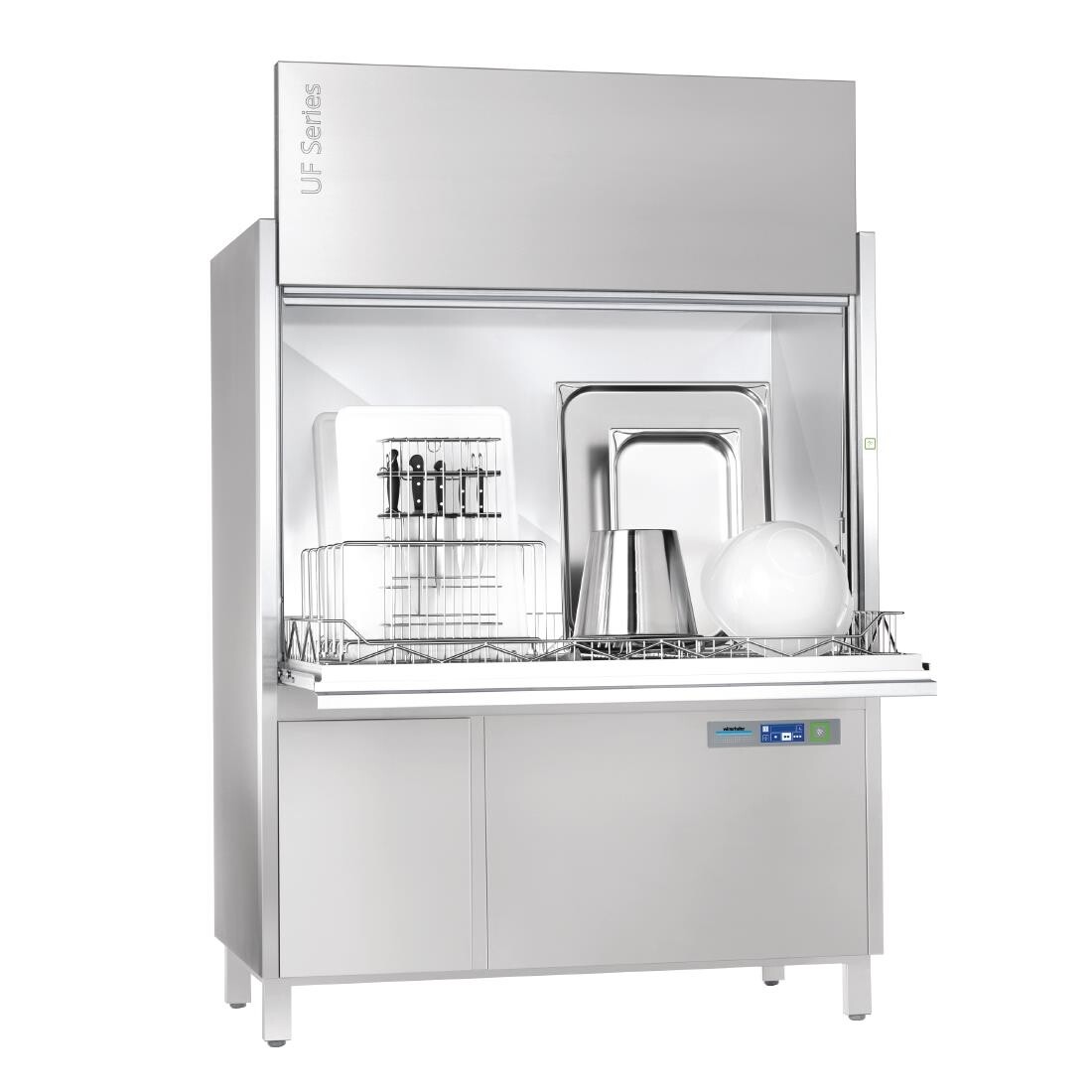

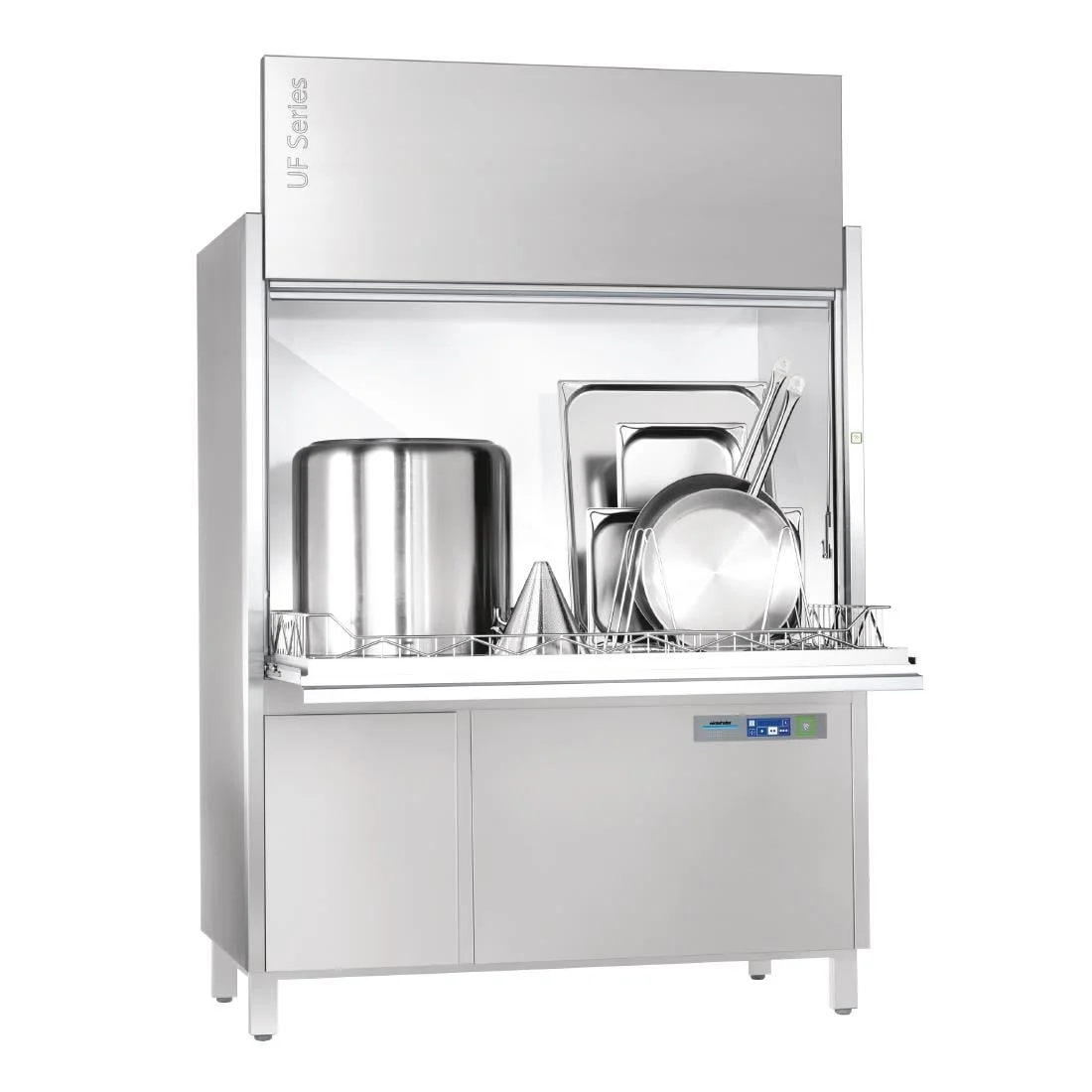

Winterhalter Utensil Washer UF-XL
Winterhalter Utensil Washer UF-XL - Dishwashers
Rack Size: 672 X 1305mm. Hot Fill
Original price was: £25,451.99.£21,939.74Current price is: £21,939.74. Ex. VAT
Description
Specifically designed to hold large batches of cookware and utensils, this Hot Fill Utensil Washer features a greatly extended wash cavity to encompass anything from gastronorm trays to slow cooking pots, steamer components and stick blender attachments. Cleverly reversing its wash cycle between top and bottom this machine applies thorough rinsing to its contents regardless of its size, with the wash quality boosted by an integrated rinse aid dispenser. A self cleaning program is built into the unit to make the maintenance of the unit simple and without risk of human error.
This utensil washer delivers a rinse temperature of 82°C for 12 seconds, a temperature that won’t be reached when handwashing. As such, cleaning your equipment with this commercial utensil washer is the only way to guarantee effective sanitation when washing – ensuring staff and customers are protected against transferrable viruses. Once cleaned, we recommend storing your equipment in the wash basket to reduce contact and handling.
- Up to 40 wash cycles an hour on hot fill supply
- Reversing top and bottom wash system for total cleaning coverage
- Total coverage filter system with filter cassette and cyclonic water filter
- Self cleaning programme
- Built in drain pump
- Wash tank and boiler temperature display
- Easy access front loading door system
- Minimum requirement of 1.5 bar incoming water pressure
- 830mm entry height for washing large utensils including full size GN baking sheets
- Rack Size of 1305 x 672mm
- Easy to use colour coded controls – language neutral
Additional information
| Brand | Winterhalter |
|---|---|
| Dimensions | 1880(H) x 1468(W) x 870(D)mm |
| Electrical | Yes |
| Voltage | 415V |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Secondary Colour | Silver |
| Power | Three Phase |
| Power Type | Electric |
| Delivery To Ireland | 5-6 weeks |
| Drainage | Drain Pump |
| Sub Category | Dishwashers & Glasswashers |
| Manufacturers Warranty | 3 Years Parts & Labour |
| Temperature Range | 60°C to 85°C |
| Operating Temperature Range | 60 °C to 85 °C |
| Product Depth | 870 |
| Section | Utensil Washers |
| Product Type | Utensil Washers |
| Height (mm) | 1880 |
| Suitable For | Utensil Washing |
| Power Output | 40 racks/hr |
| Supplier Reference | UF-XL |
| Product Weight | 305kg |
| Product dimensions | 608(W) x 1242(D)mm |
| Wattage | 9.8 |
| Width (mm) | 1468 |
| Weight | 275 kg |
Documents
Frequently Asked Questions
Winterhalter Utensil Washer UF-XL FAQs
What is the Winterhalter utensil washer intended to help a busy operation achieve?
The Winterhalter Utensil Washer UF-XL is a commercial utensil washer for hospitality operations processing demanding wash loads through busy service periods. That operational focus helps distinguish this configuration from a lower-output or differently equipped alternative.
Which working-format features define the Winterhalter UF-XL utensil washer?
The operating temperatures are 60°C to 85°C. This supports controlled wash and rinse performance; use the programmed settings and chemical dosing arrangements appropriate to the load. This gives operators a factual basis for comparing the unit with related commercial configurations.
How can operators manage consistent results with the Winterhalter UF-XL utensil washer?
The Winterhalter Utensil Washer UF-XL provides these operating features:
- Self cleaning programme
- Wash tank and boiler temperature display
- Integrated rinse aid dosing device
- Easy to use colour coded controls - language neutral
The control arrangement should be assessed against the recipes, cycle changes and staff workflow used on site.
What should buyers know about the Winterhalter UF-XL utensil washer?
The machine uses a 608(W) x 1242(D)mm basket format. This is a key compatibility check when planning racks, plate loading and movement between scraping, washing and unloading areas. These details help buyers compare the utensil washer with the intended workload and site constraints.
How should the water and drainage connections for the Winterhalter utensil washer be prepared?
The drainage arrangement is Drain Pump. Total coverage filter system with filter cassette and cyclonic water filter; Built in drain pump; Integrated rinse aid dosing device; Minimum requirement of 1.5 bar incoming water pressure. Confirm incoming water pressure, water treatment, chemical connections and drain position with the installation requirements.
How large and heavy is the Winterhalter UF-XL utensil washer, and what should be checked before delivery?
The Winterhalter Utensil Washer UF-XL measures 1880(H) x 1468(W) x 870(D)mm and has a net product weight of 305kg. Check the delivery route, final position and required operating clearances before ordering.
What is the Winterhalter UF-XL utensil washer made from?
The Winterhalter Utensil Washer UF-XL has a Silver finish. The material and support arrangement also help the buyer plan routine cleaning and the final operating position.
Which power connection should be provided for the Winterhalter utensil washer?
The Winterhalter Utensil Washer UF-XL requires a rated electrical input of 9.8kW, a 415V supply, and a Three Phase connection. This is a specialist commercial connection, so confirm the site supply and arrange installation by a suitably competent engineer.
What routine care helps keep the Winterhalter utensil washer ready for operation?
Drain and clean the Winterhalter Utensil Washer UF-XL after service, rinse filters and wash arms, and keep detergent and rinse-aid systems correctly supplied. Remove scale and debris in line with its operating instructions.
Which product code and model identify the Winterhalter UF-XL utensil washer?
Quote Smart Hospitality Supplies product code DE677 when ordering or requesting support. The model reference is UF-XL. It includes a three-year parts and labour warranty. Using both references helps distinguish this exact configuration when ordering, arranging support or finding model-specific documentation.
What rack size does the Winterhalter UF-XL utensil washer accommodate?
The Winterhalter UF-XL accommodates a rack size of 1305 x 672mm. Its 830mm entry height helps it accept large utensils, including full-size GN baking sheets, but compatibility with unusually shaped items should still be checked.
How does hot fill affect the Winterhalter UF-XL utensil washer's output?
On a suitable hot-fill water supply, the Winterhalter UF-XL can complete up to 40 wash cycles an hour. The incoming water pressure, temperature and site services must meet the appliance's installation requirements to achieve dependable performance.
What is the weight of the Winterhalter UF-XL utensil washer?
The Winterhalter UF-XL weighs 275 kg. Check the access route, floor loading, handling plan and final operating position before delivery and installation.
