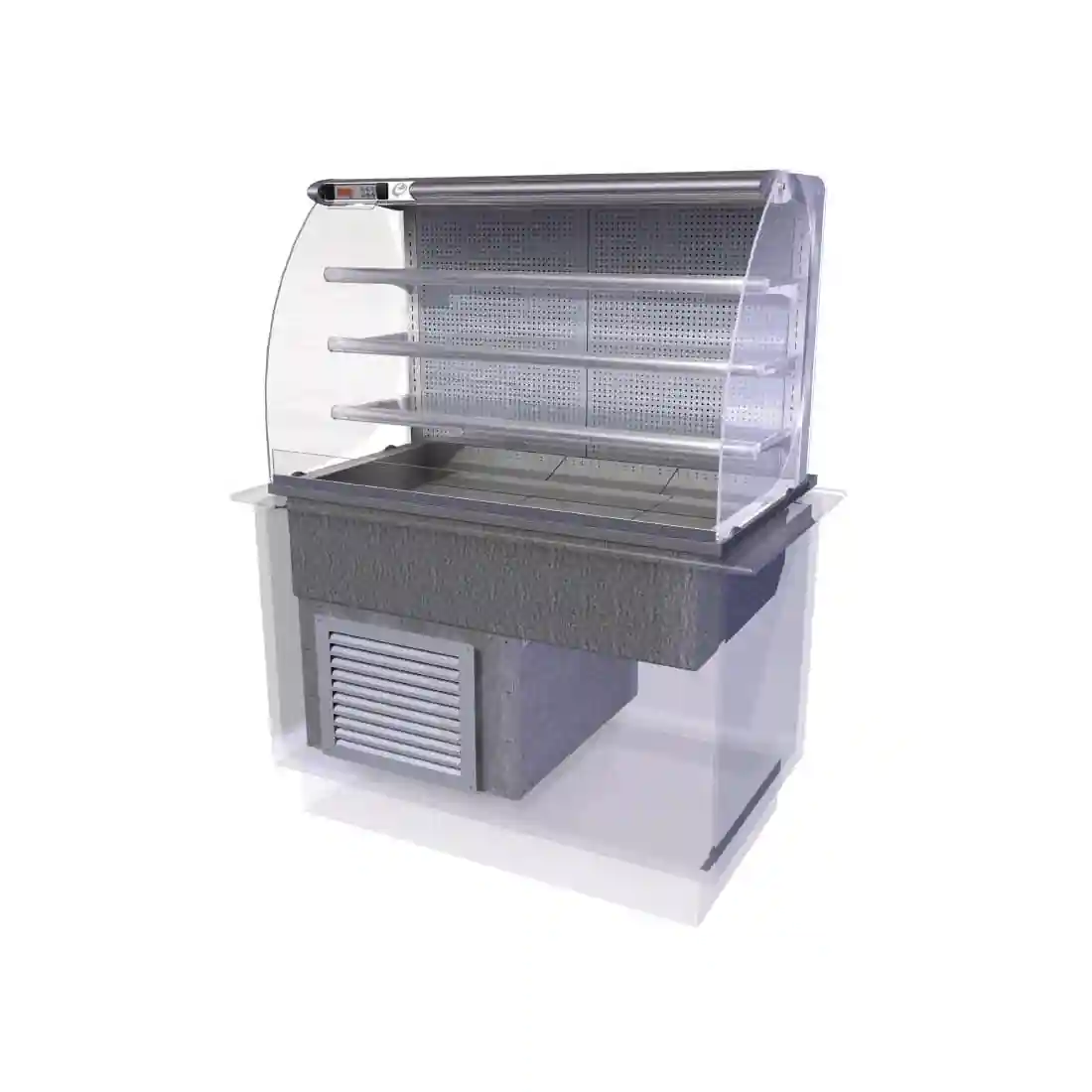

Designline Drop In Multideck 1525mm - Display Fridges & Freezers
3 Shelves. Self Service. 1525mm Wide. Fixed Back
Original price was: £6,109.99£7,331.99.£4,865.89£5,839.07Current price is: £4,865.89£5,839.07. Exc VATInc VAT
Description
Illuminate, chill and display refrigerated food or drink with CED’s elliptical shaped Designline self help cold multideck ( Fixed Back ). This energy efficient 4/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The front loading multideck is designed for use in a wall sited countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Toughened side glass protection provides protection to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 4/1 Gn cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the elliptical profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to customer side of the display. The multideck has 24 hour operation & holds food core between 2 – 5 deg. C. The display area has bright polished steel inner perforated back panels and the self help superstructure is made from bright polished steel and alluminum elliptical profiles. Modular removable deck plates in the chilled multideck make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, rear vent, lifting kit and a 2m lead and plug top for installation. (1.73KW/13a/230v electrical supply ).
- Elliptical gantry in bright polished steel, & aluminium, toughened glass side panels
- Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
- Gantry is fitted with toughened side glass protection to the customer side of the display
- Product illumination is from diffused lighting in the elliptical profile gantry
- Curved glass profile is designed to complement other units within the Designline range
- Ventilation grills, rear vent and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- Special-to-order. Non-returnable
- Features 3 chilled toughened glass display shelves with adjustable height and angle
- The 4/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (R290)
- Self service. (Fixed back)
Additional information
| Pack Size Qty | 1 |
|---|---|
| Brand | Designline |
| Weight | 195 kg |
Frequently Asked Questions
CED Designline Drop In Multideck 1525mm FAQs
What is the CED Designline Drop In Multideck 1525mm best suited to?
The CED Designline Drop In Multideck 1525mm is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Designline Drop In Multideck 1525mm provide?
The CED Designline Drop In Multideck 1525mm has a capacity of 4 x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Designline Drop In Multideck 1525mm operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Designline Drop In Multideck 1525mm control and maintain temperature?
The CED Designline Drop In Multideck 1525mm provides these operating features:
- Gantry is fitted with toughened side glass protection to the customer side of the display
- Ventilation grills, rear vent and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
How is stock arranged inside the CED Designline Drop In Multideck 1525mm?
The internal arrangement includes 3 shelves and 1/1 GN full gastronorm compatibility. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Designline Drop In Multideck 1525mm use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 500g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Designline Drop In Multideck 1525mm?
The CED Designline Drop In Multideck 1525mm measures 750(H) x 1525(W) x 735(D)mm and has a net product weight of 195kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Designline Drop In Multideck 1525mm require?
The CED Designline Drop In Multideck 1525mm requires an electrical supply rated at 1.73kW, 230V, 13A. A plug is fitted.
How should the CED Designline Drop In Multideck 1525mm be cleaned and maintained?
Clean the CED Designline Drop In Multideck 1525mm interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Designline Drop In Multideck 1525mm model for ordering and support?
Quote Smart Hospitality Supplies product code CW655 when ordering or requesting support. The model reference is MDF4HT. It includes a one-year warranty.
