Kubus Drop In Multideck Self Service 1175mm - Display Fridges & Freezers
3x 1/1 GN Capacity. 1175mm Wide. Fixed Back
Original price was: £7,321.99£8,786.39.£6,146.39£7,375.67Current price is: £6,146.39£7,375.67. Excl. VATIncl. VAT
Description

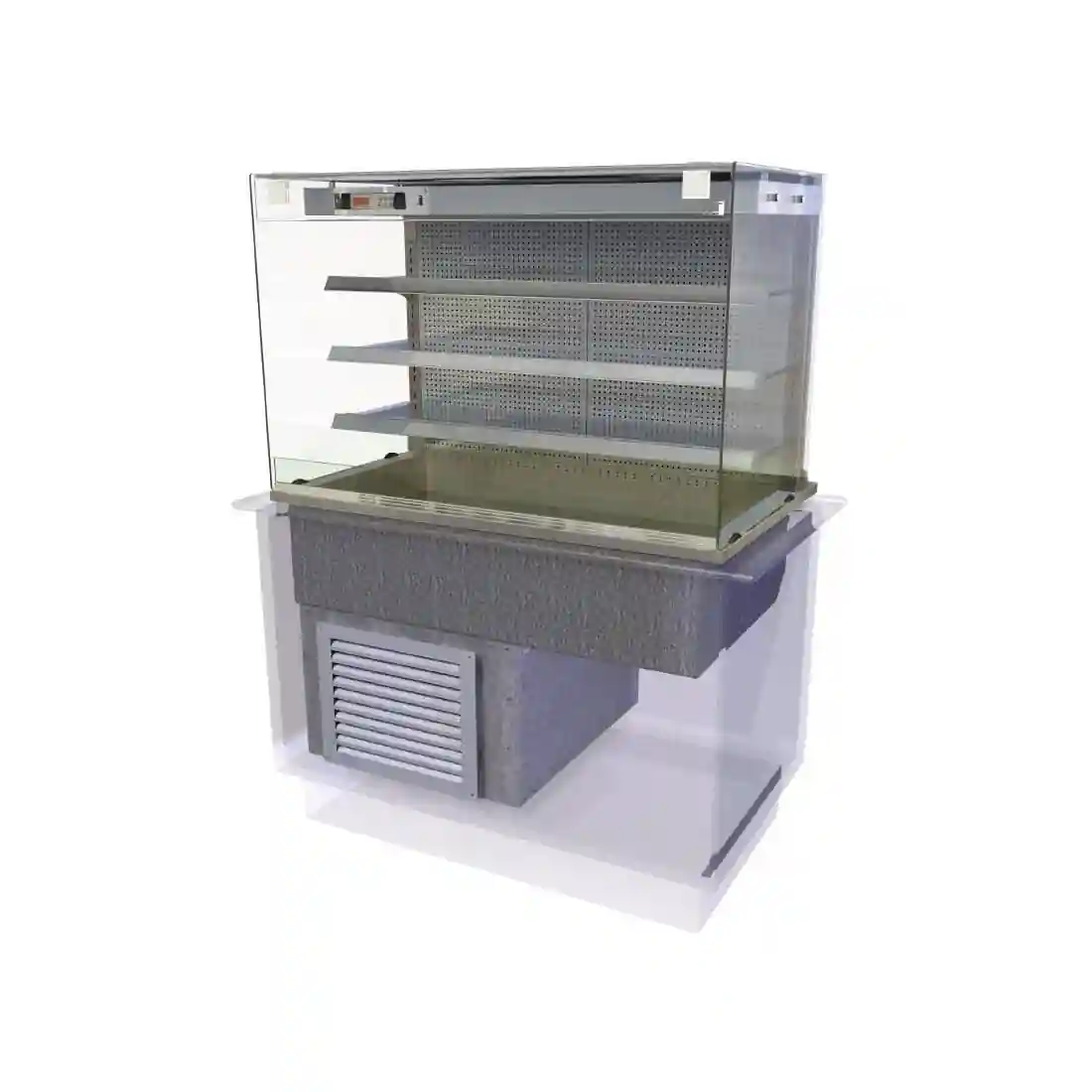

Illuminate, chill and display refrigerated food or drink with CED’s rectangular shaped Kubus self help cold multideck (Fixed Back). This energy efficient 3/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The front loading multideck is designed for use in a wall sited countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Flat, toughened glass sneeze screen and side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adjustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 3/1 GN cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the rectangular profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to customer side of the display. The multideck has 24 hour operation and holds food core between 2°C to 5°C. The display area has bright polished steel inner perforated back panels and the self help superstructure is made from bright polished steel and aluminium rectangular profiles. Modular removable deck plates in the chilled multideck make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation.
- Rectangular gantry in bright polished steel, & aluminium, housed in a toughened glass roof and side panels
- Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
- Gantry is fitted with toughened glass sneeze screen and side glass protection to the customer side of the display
- Product illumination is from diffused lighting in the rectangular profile gantry
- Flat glass profile is designed to complement other units within the Kubus range
- Ventilation grills, rear vent and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- Special-to-order. Non-returnable
- Features 3 chilled toughened glass display shelves with adjustable height and angle
- The 3/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
- Self service. (Fixed back)
Additional information
| Pack Size Qty | 1 |
|---|---|
| Brand | Kubus |
| Weight | 158 kg |
Frequently Asked Questions
CED Kubus Drop In Multideck Self Service 1175mm FAQs
What is the CED Kubus Drop In Multideck Self Service 1175mm best suited to?
The CED Kubus Drop In Multideck Self Service 1175mm is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Kubus Drop In Multideck Self Service 1175mm provide?
The CED Kubus Drop In Multideck Self Service 1175mm has a capacity of 3 x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Kubus Drop In Multideck Self Service 1175mm operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Kubus Drop In Multideck Self Service 1175mm control and maintain temperature?
The CED Kubus Drop In Multideck Self Service 1175mm provides these operating features:
- Gantry is fitted with toughened glass sneeze screen and side glass protection to the customer side of the display
- Ventilation grills, rear vent and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
How is stock arranged inside the CED Kubus Drop In Multideck Self Service 1175mm?
The internal arrangement includes 3 shelves and 1/1 GN full gastronorm compatibility. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Kubus Drop In Multideck Self Service 1175mm use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 485g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Kubus Drop In Multideck Self Service 1175mm?
The CED Kubus Drop In Multideck Self Service 1175mm measures 775(H) x 1175(W) x 660(D)mm and has a net product weight of 158kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Kubus Drop In Multideck Self Service 1175mm require?
The CED Kubus Drop In Multideck Self Service 1175mm requires an electrical supply rated at 1.73kW, 230V, 13A. A plug is fitted.
How should the CED Kubus Drop In Multideck Self Service 1175mm be cleaned and maintained?
Clean the CED Kubus Drop In Multideck Self Service 1175mm interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Kubus Drop In Multideck Self Service 1175mm model for ordering and support?
Quote Smart Hospitality Supplies product code CW644 when ordering or requesting support. The model reference is KMDF3HT. It includes a one-year warranty.
