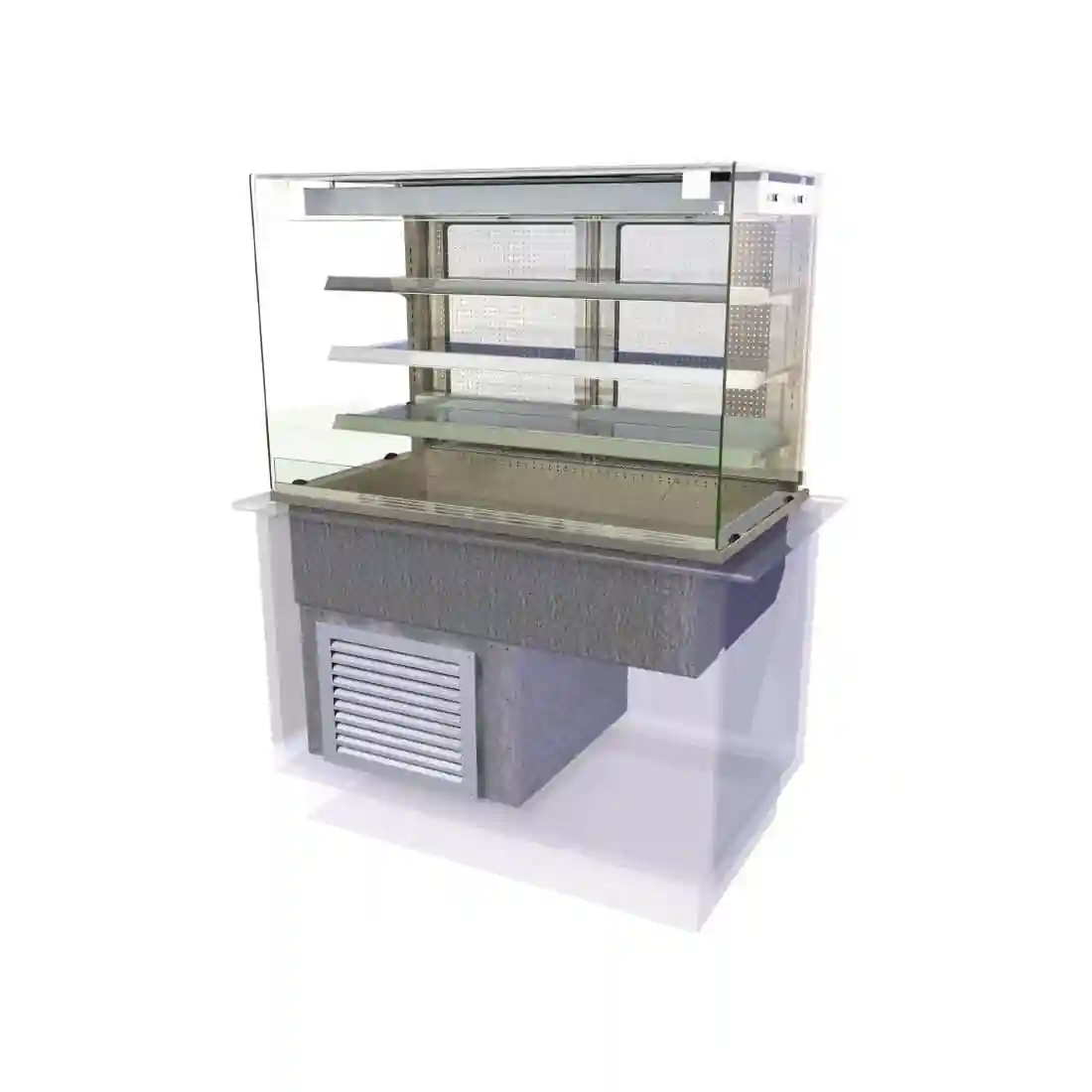

Kubus Drop In Multideck Self Service 1525mm KMDR4HT
Kubus Drop In Multideck Self Service 1525mm KMDR4HT - Display Fridges & Freezers
4x 1/1 GN Capacity. 1525mm Wide. Rear Doors
Original price was: £6,160.99.£5,614.49Current price is: £5,614.49. Ex. VAT
Description
Illuminate, chill and display refrigerated food or drink with CED’s rectangular shaped Kubus self help cold multideck (Rear Doors). This energy efficient 4/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The rear loading self help multideck is designed for use in a free standing countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Flat, toughened glass sneeze screen and side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adjustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 4/1 GN cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the rectangular profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to operator side of the display. The multideck has 24 hour operation and holds food core between 2°C to 5°C. The display area has double glazed hinged rear doors for restocking and the self help superstructure is made from bright polished steel and aluminium rectangular profiles. Modular removable deck plates in the chilled multideck make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation.
- Rectangular gantry in bright polished steel, & aluminium, housed in a toughened glass roof and side panels
- Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
- Gantry is fitted with toughened glass sneeze screen and side glass protection to the customer side of the display
- Product illumination is from diffused lighting in the rectangular profile gantry
- Flat glass profile is designed to complement other units within the Kubus range
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- Special-to-order. Non-returnable
- Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
- Features 3 chilled toughened glass display shelves with adjustable height and angle
- The 4/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (R290)
- Assisted service. (Rear doors)
Additional information
| Brand | Kubus |
|---|---|
| Capacity | 4 x 1/1 GN |
| Dimensions | 775(H) x 1525(W) x 660(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Main Colour | Silver |
| Secondary Colour | Silver |
| Main Category | Display Refrigeration |
| Product Family | Refrigeration |
| Door Location | Back |
| Power | Plug |
| Number Of Seats | 3 |
| Mobility | Feet |
| Gastronorm Size | 1/1 GN full |
| Product Cooling Type | Fan Assist |
| Product Depth | 660 |
| Delivery To Ireland | 8-10 weeks |
| Temperature Range | -1°C to 5°C |
| Operating Temperature Range | -1 °C to 5 °C |
| Product Type | Multidecks |
| Sub Category | Multideck Displays |
| Section | All Multidecks |
| Light Type | LED |
| Blade Material External | Stainless Steel |
| Finish Type | Stainless Steel |
| Feat Type | Feet |
| Fridge Finish | Stainless Steel |
| Cooling Type | Refrigerator |
| Number Of Fridge Doors | 2 |
| Fridge Door Type | Sliding |
| Product Weight | 212kg |
| Height (mm) | 775 |
| Width (mm) | 1525 |
| Power Type | 1.73kW, 230V, 13A |
| Noise Level (dB) | 70.7 |
| Wattage | 1.73 |
| Internal Dimensions | 898(H) x 1480(W) x 552(D)mm |
| Refrigerant Type | R290 / GWP 3 / 500g |
| Capacity (ml) | 232.5 |
| Supplier Reference | KMDR4HT |
| Weight | 212 kg |
Frequently Asked Questions
CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT FAQs
What is the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT best suited to?
The CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT provide?
The CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT has a capacity of 4 x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT control and maintain temperature?
The CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT provides these operating features:
- Gantry is fitted with toughened glass sneeze screen and side glass protection to the customer side of the display
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
How is stock arranged inside the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT?
The internal arrangement includes 3 shelves, 1/1 GN full gastronorm compatibility, and 2 doors. 3 hinged rear double glazed doors; Assisted service. (Rear doors). Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 500g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT?
The CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT measures 775(H) x 1525(W) x 660(D)mm and has a net product weight of 212kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT require?
The CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT requires an electrical supply rated at 1.73kW, 230V, 13A. A plug is fitted.
How should the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT be cleaned and maintained?
Clean the CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Kubus Drop In Multideck Self Service 1525mm KMDR4HT model for ordering and support?
Quote Smart Hospitality Supplies product code CW647 when ordering or requesting support. The model reference is KMDR4HT. It includes a one-year warranty.
