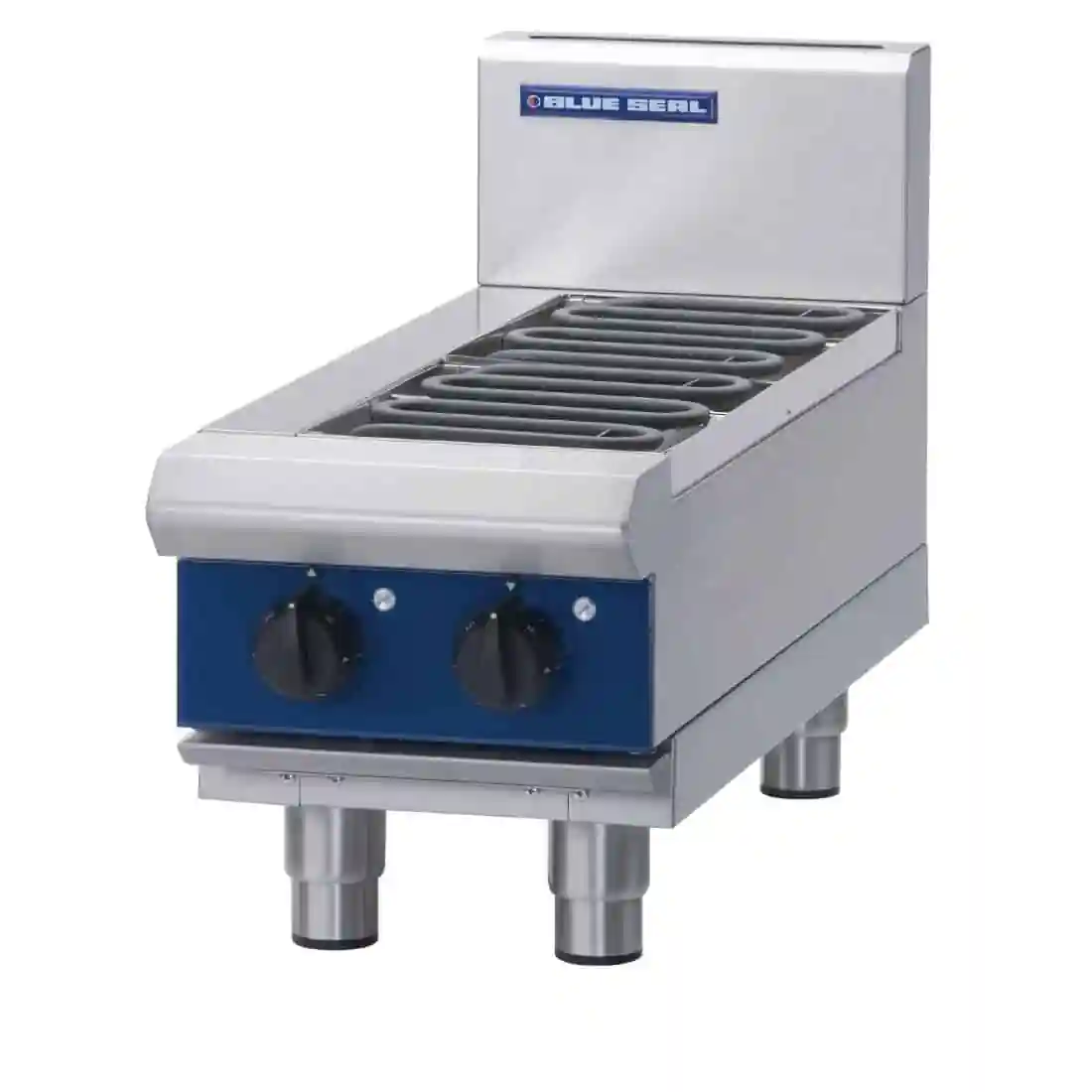

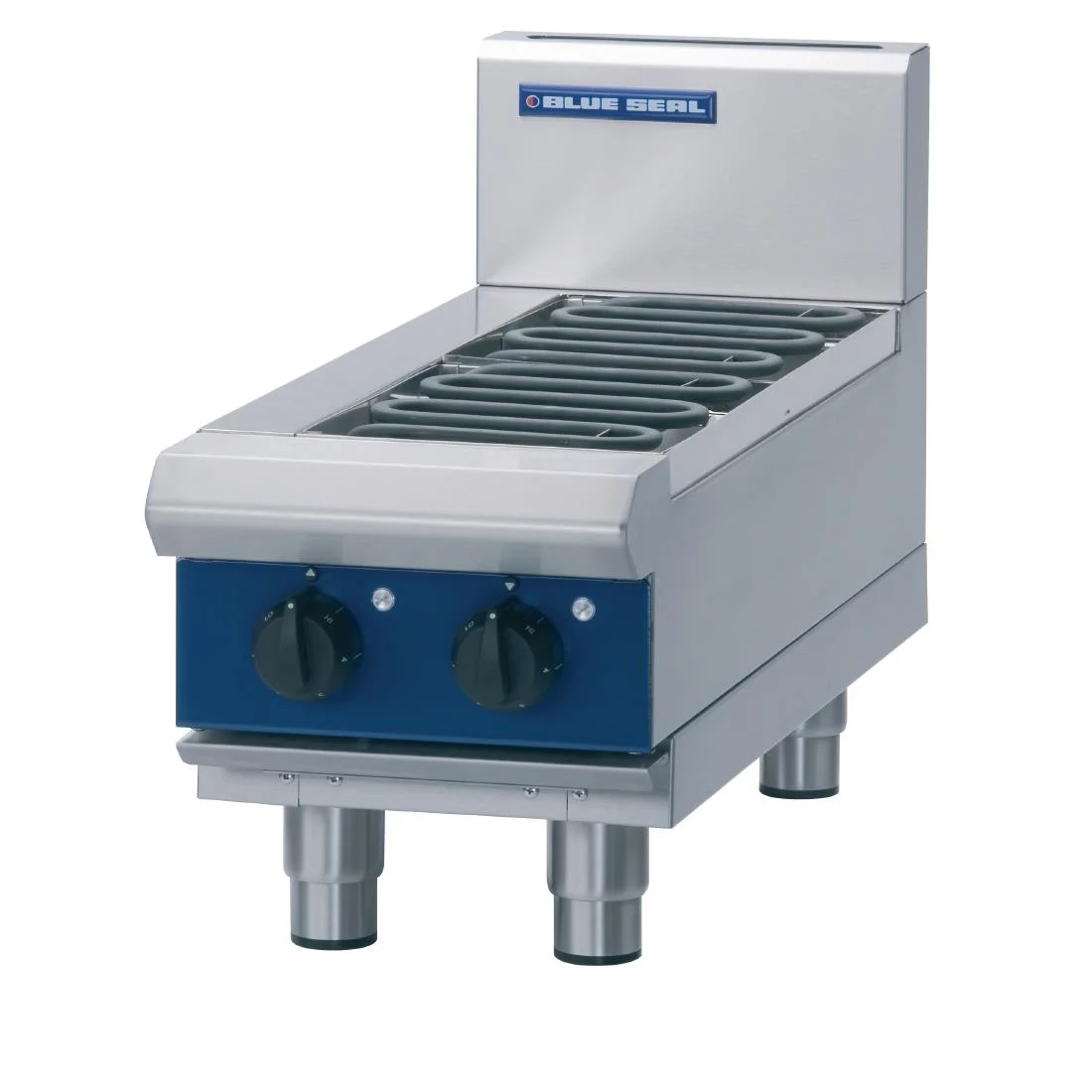

The E512D-B is a heavy-duty commercial countertop cooktop with two radiant boiling rings. It can serve as either the main cooking station in a compact operation or a secondary station that adds two independently controlled heating positions to a larger kitchen line.

The cooktop has two 2.4 kW radiant elements, providing a combined output of 4.8kW. Energy-regulator controls allow each element to be adjusted, while reinforced control knobs are designed to withstand frequent use in a busy commercial kitchen.

The cooktop requires a 230-240V single-phase electrical supply. Its 4.8kW connected load should be considered when planning the electrical provision for the cooking line.

The unit measures 485(H) x 300(W) x 812(D) mm. Its 300 mm frontage helps conserve line space, while the 812 mm depth provides a useful cooking area and aligns with the streamlined Evolution format for creating a continuous workspace.

It has a heavy-duty silver stainless steel finish and robust stainless steel feet for countertop positioning. The feet are adjustable for levelling, and the construction is designed to make the cooktop straightforward to clean, install and service during normal commercial use.

Yes. The E512D-B belongs to the expanded Evolution Series, which is designed to offer flexible equipment configurations. Its streamlined form and 812 mm depth help it sit within a continuous workspace while retaining useful cooking room in kitchens where frontage is limited.

The cooktop has a net product weight of 37 kg and includes a 2-year parts and labour warranty. These details are useful when planning countertop support, positioning and longer-term commercial ownership.

No. This is a countertop unit mounted on adjustable feet and does not have an undershelf. Any separate storage or supporting structure needed beneath it must therefore be planned as part of the kitchen layout.
