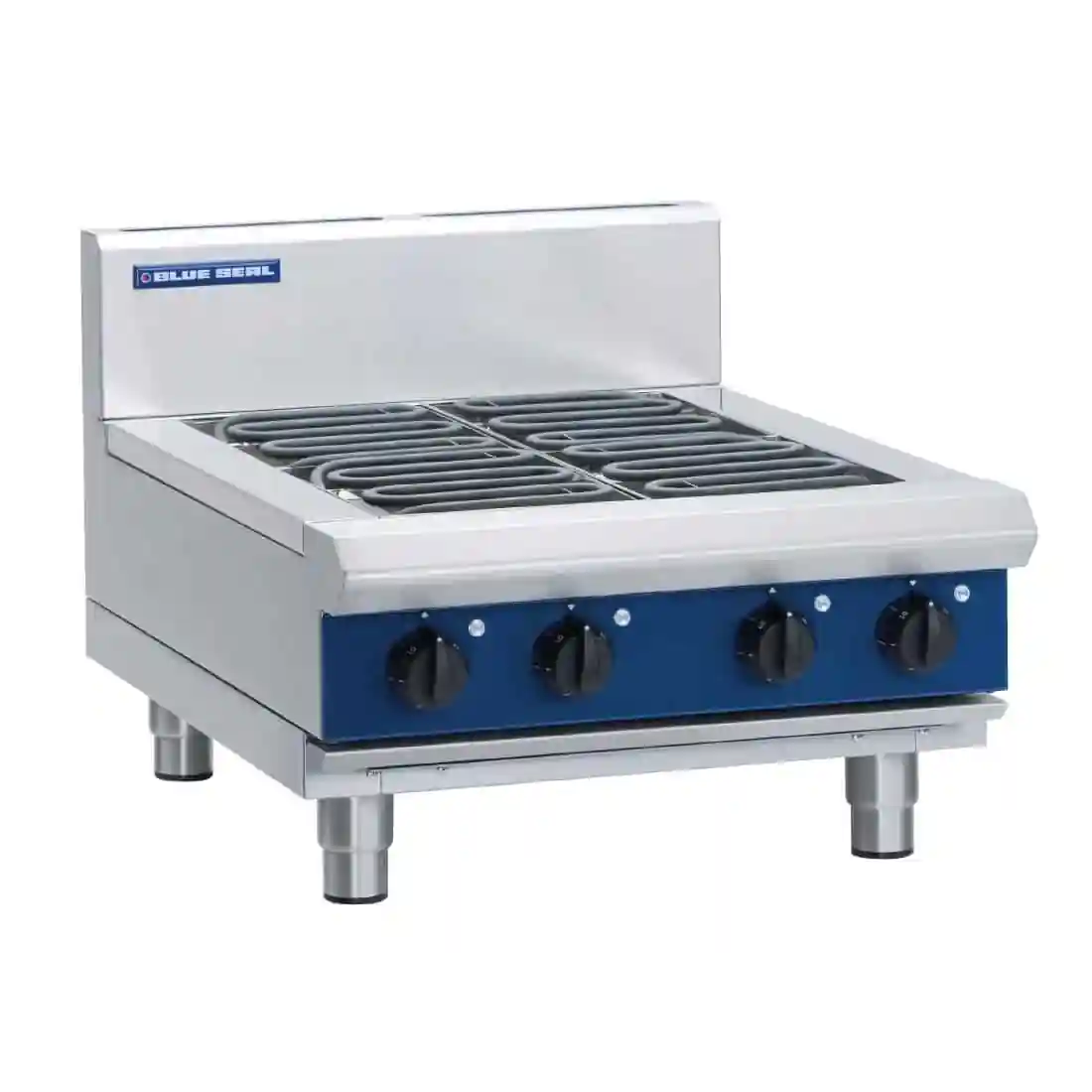

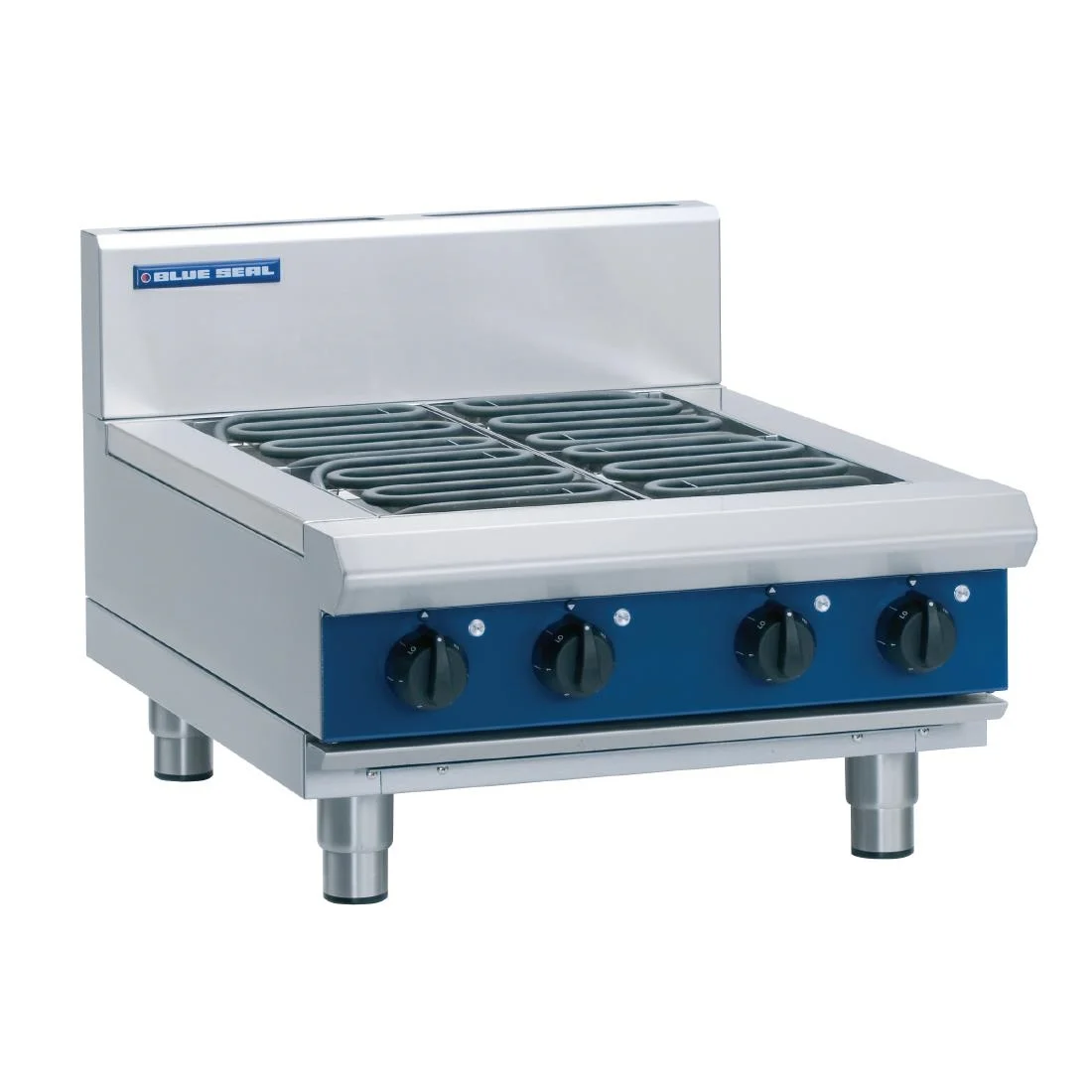

Blue Seal Evolution Cooktop 4 Burner Electric 600mm E514D-B
Blue Seal Evolution Cooktop 4 Burner Electric 600mm E514D-B - Electric Hobs
9.6kW
Original price was: £2,839.99.£1,910.89Current price is: £1,910.89. Ex. VAT
Description
With four powerful 2.4kW elements and robust stainless steel construction, the E514D-B Blue Seal Evolution Series Electric Cooktop offers unrivalled performance and durability. Designed to cope with the most heavyweight of punishment, the solid, heavy duty design is perfect for pots of all sizes, from large stock pots to small blinis or omelette pans. Other features include precise dial temperature controls and convenient, adjustable legs for ultimate stability.
- 4 radiant elements cooktop bench model
- Heavy-duty reinforced control knobs
- Adjustable feet
- Easy to clean, install and service
- Griddle on RH as standard
- 4 x 2.4kW radiant elements
- Radiant elements with energy regulator controls
- Heavy-duty stainless steel finish
Additional information
| Brand | Blue Seal |
|---|---|
| Dimensions | 485(H) x 600(W) x 812(D)mm |
| Electrical | Yes |
| Power | Single Phase |
| Voltage | 400-415V |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Width (mm) | 600 |
| Main Category | Cooking Equipment |
| Mobility | Feet |
| Number Of Hobs | 4 |
| Manufacturers Warranty | 2 Years Parts & Labour |
| Undershelf | No |
| Product Weight | 70kg |
| Product Depth | 812 |
| Number Of Plates | 4 |
| Height (mm) | 485 |
| Sub Category | Hobs |
| Section | Commercial Hobs |
| Product Type | Boiling Rings |
| Range Name | Evolution |
| Secondary Colour | Silver & Blue |
| Power Type | 3 phase |
| Supplier Reference | E514D-B |
| Wattage | 9.6kW |
| Weight | 70 kg |
Frequently Asked Questions
Blue Seal Evolution Cooktop 4 Burner Electric 600mm E514D-B FAQs
Which commercial kitchens would benefit from the Blue Seal Evolution electric cooktop E514D-B?
This heavy-duty electric bench cooktop suits demanding kitchens that need 4 independently regulated radiant elements for cookware ranging from large stock pots to small omelette or blini pans. Its compact 600 mm width also helps preserve line-up space.
What cooking power do the 4 boiling rings on the Blue Seal Evolution E514D-B provide?
The cooktop has 4 radiant boiling rings rated at 2.4kW each, giving a total output of 9.6kW. This distributes substantial cooking power across 4 pan positions for simultaneous commercial production.
How are the Blue Seal Evolution cooktop elements controlled?
Each radiant element uses an energy-regulator control, operated through heavy-duty reinforced knobs. The dial controls provide practical adjustment of heat output, while the reinforced construction is intended to withstand frequent commercial use.
Does the Blue Seal Evolution E514D-B include a griddle section?
Yes. A griddle is positioned on the right-hand side as standard, adding a direct cooking surface alongside the radiant elements and increasing the range of cooking tasks available from the bench unit.
What are the dimensions of the Blue Seal Evolution electric cooktop?
The E514D-B measures 485 mm high, 600 mm wide and 812 mm deep. Its streamlined 812 mm-deep body is designed to align into a continuous equipment line-up while providing useful cooking depth within a relatively narrow footprint.
What voltage does the Blue Seal Evolution E514D-B cooktop require?
The cooktop requires a 400/415V electrical supply and has a 9.6kW connected load.
How is the Blue Seal Evolution commercial cooktop constructed?
The E514D-B has a heavy-duty stainless steel finish in silver and blue. Its robust construction is intended to withstand demanding commercial use while providing an exterior designed to be straightforward to clean, install and service.
How is the Blue Seal Evolution E514D-B stabilised on a work surface?
Adjustable feet allow the bench cooktop to be levelled and stabilised in its working position. The unit does not include an undershelf, so the supporting counter or compatible base should be planned separately.
How much does the Blue Seal Evolution electric cooktop weigh?
The E514D-B weighs 70 kg. This should be considered when planning delivery, lifting and the load capacity of the counter or equipment base supporting the cooktop.
What warranty comes with the Blue Seal Evolution E514D-B cooktop?
The Blue Seal Evolution electric cooktop includes a 2-year parts and labour warranty, providing cover during the initial ownership period subject to the applicable commercial warranty terms.
How can I identify the Blue Seal Evolution electric cooktop E514D-B when ordering?
The exact ordering reference is E514D-B. It identifies the Blue Seal Evolution 600 mm bench cooktop with 4 radiant elements and the standard right-hand griddle arrangement.
