Designline Drop In Ambient Multi Level Display AMG4
Designline Drop In Ambient Multi Level Display AMG4 - Food Warmer Plates & Heat Lamps
2 Shelves. Capacity: 4x 1/1 GN. Self Service. 1500mm Wide
Original price was: £1,201.99.£925.89Current price is: £925.89. Ex. VAT
Description

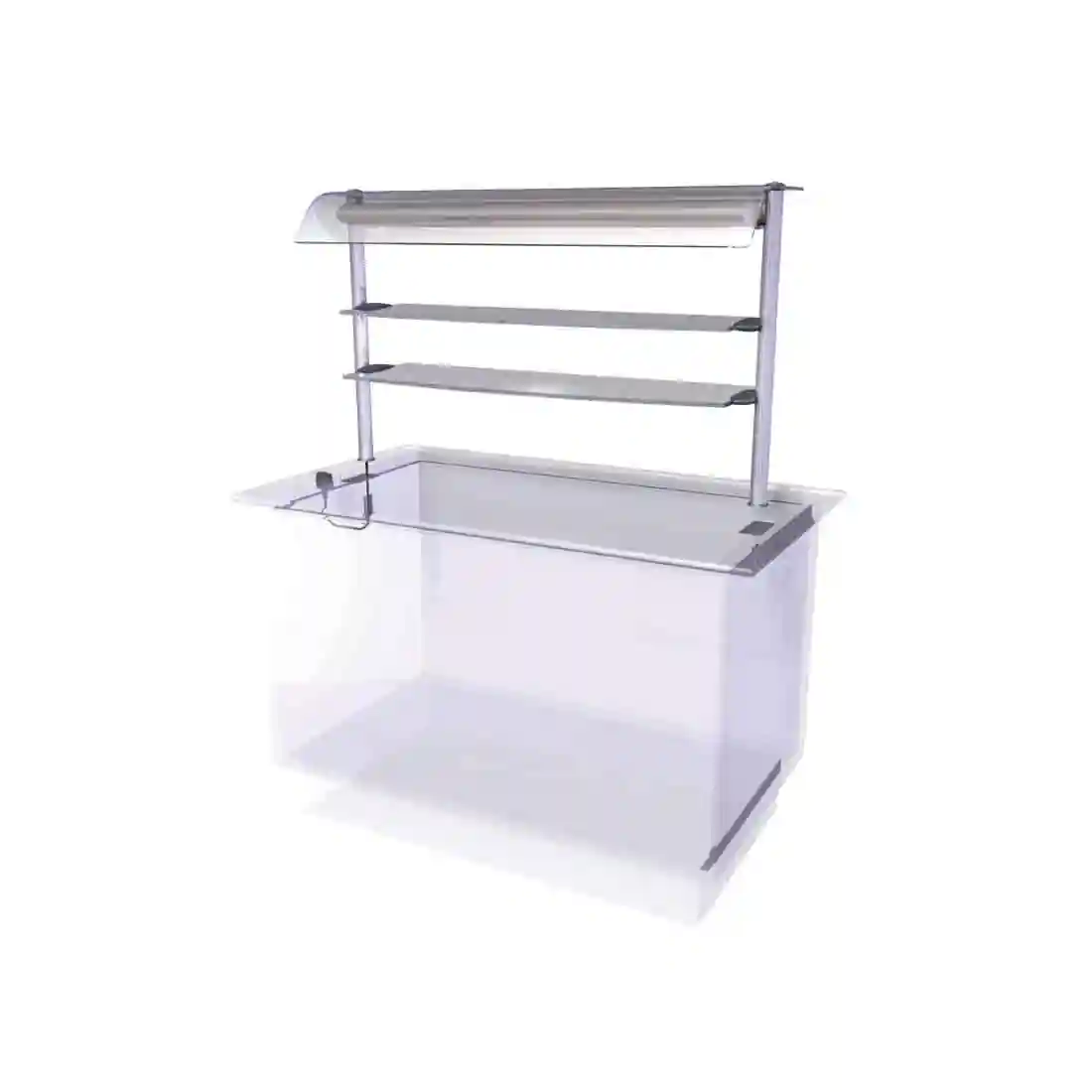

Illuminate & protect countertop displayed ambient food & drink with CED’s elliptically shaped Designline self help ambient multi level gantry. The 4 x 1/1 Gn self help display features two toughened glass impulse/ display shelves and is 1500mm long. The polished aluminium / steel construction gantry mounts to a countertop and is fitted with a curved glass sneeze screen, diffused lighting & includes post fixing plates & bolts. The light switch is conveniently housed at the end of the gantry. GN’s Sold Separatley.
- Curved gantry in bright polished steel and aluminium profile
- Product illumination is provided from diffused lighting in a curved gantry profile
- Lighting is controlled from a push button switch on gantry end plate
- Supplied with post fixing plates, bolts, 2m lead & plug top
- Curved glass profile is designed to complement other units within the Designline range
- Drink display examples : Racked wine, impulse drinks (still and carbonated), bottled, canned & cartoned water, UHT dairy, lemonade, wine, beer, lager & fruit juice
- Gantry fitted with curved toughened glass sneeze screen food protection
- Gantry fitted with two toughened glass shelves, providing additional food storage within the area
- Self help application
Additional information
| Brand | Designline |
|---|---|
| Capacity | 4 x 1/1 GN |
| Dimensions | 696(H) x 1500(W) x 377(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Power | Plug |
| Gastronorm Size | 1/1 GN full |
| Main Category | Servery & Display Machines |
| Product Weight | 40kg |
| Delivery To Ireland | 8-10 weeks |
| Sub Category | Food Merchandisers |
| Width (mm) | 1500 |
| Wattage | 100 |
| Section | Ambient Display Units |
| Secondary Colour | Chrome |
| Product Depth | 377 |
| Product Type | Ambient Displays |
| Power Type | 100W, 230V, 13A |
| Product Tags | ambient display unit, ambient merchandiser |
| Supplier Reference | AMG4 |
| Height (mm) | 696 |
| Weight | 40 kg |
Frequently Asked Questions
CED Designline Drop In Ambient Multi Level Display AMG4 FAQs
What is the CED Designline AMG4 ambient display used for?
The CED Designline AMG4 is a countertop-mounted, self-service ambient display for presenting and illuminating food or drink. Its curved multi-level gantry, transparent shelving and sneeze screen create an accessible merchandising area while helping shield displayed products.
What capacity does the CED Designline AMG4 ambient display provide?
The display accommodates four 1/1 GN positions and has two toughened-glass impulse-display shelves. This multi-level arrangement expands the merchandising area above the countertop, but the GN containers themselves are sold separately.
How does the CED Designline AMG4 ambient gantry illuminate products?
Diffused lighting is integrated into the curved gantry profile to illuminate the display without an exposed point-light appearance. A push-button switch on the gantry end plate gives the operator convenient control of the lighting.
How is the CED Designline AMG4 ambient display constructed and mounted?
The silver-finished curved gantry combines bright polished steel with an aluminium profile and mounts to a countertop. It includes post-fixing plates and bolts, a 2 m lead and plug top, while the curved toughened-glass sneeze screen provides a protective barrier at the display front.
Which drinks can be presented in the CED Designline AMG4 ambient display?
Ambient drink-merchandising examples include racked wine, still or carbonated impulse drinks, bottled, canned or cartoned water, UHT dairy drinks, lemonade, beer, lager and fruit juice. Each product must still meet its own storage requirements.
Which foods and merchandise suit the CED Designline AMG4 ambient display?
Examples include chocolate, confectionery, crisps, snacks, cakes, flowers, menus, wine lists and table-condiment sets, as well as sandwiches, baguettes and rolls where their individual storage requirements permit ambient presentation.
What are the dimensions and weight of the CED Designline AMG4 ambient display?
The unit measures 696 mm high, 1500 mm wide and 377 mm deep, and weighs 40 kg. Its 1500 mm width and two display shelves should be considered when planning the supporting countertop and customer access area.
What electrical supply does the CED Designline AMG4 ambient display require?
The lighting system is rated at 100 W and operates from a 230V, 13 A plug supply. The included 2 m lead and plug top support connection after the gantry has been correctly mounted.
Does the CED Designline AMG4 match other Designline display units?
Yes. Its curved glass profile is designed to complement other units in the Designline range, helping operators create a more consistent presentation across a coordinated countertop display run.
What warranty and reference apply to the CED Designline AMG4 ambient display?
The display includes a 1-year warranty. Its model reference is AMG4, which identifies this silver, 1500 mm-wide Designline ambient-display configuration when ordering or checking compatibility with a planned counter layout.
