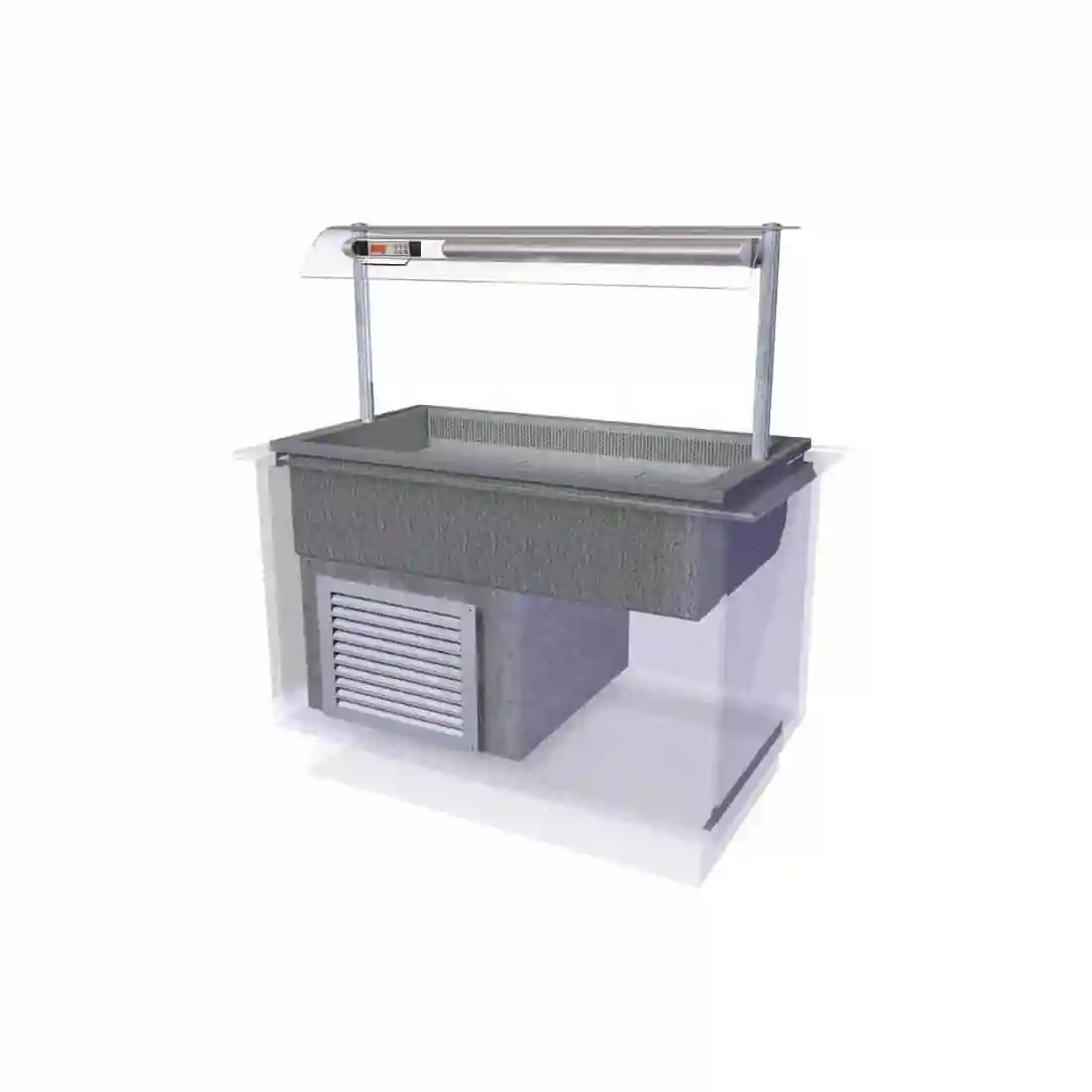

Designline Drop In Cold Well Self Service 1175mm
Designline Drop In Cold Well Self Service 1175mm - Salad Bars
3x 1/1 GN Capacity. 1175mm Wide
Original price was: £4,201.99.£3,348.99Current price is: £3,348.99. Ex. VAT
Description

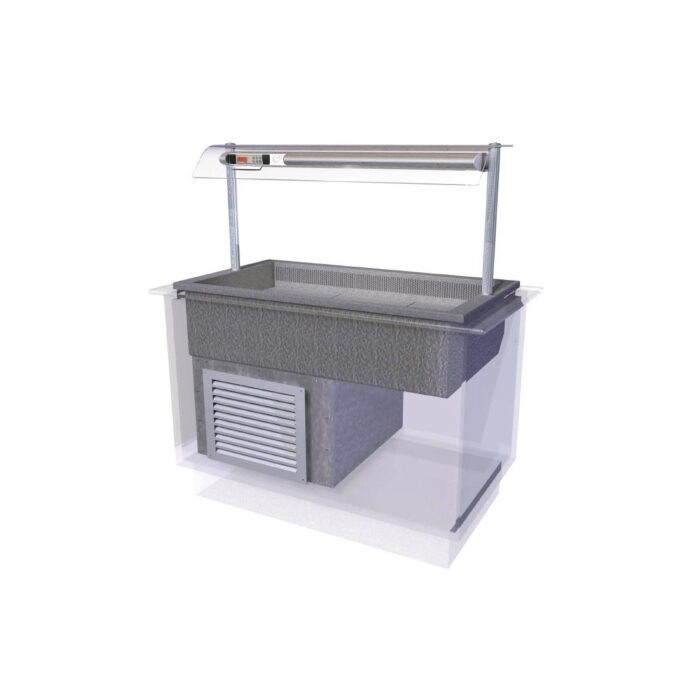

Illuminate, chill and protect refrigerated food or drink with CED’s elliptically shaped Designline self help cold well drop in display. This energy efficient 3/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination is from diffused lighting in the elliptical profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard & holds food core between 2 – 5 deg. C. Modular removable deck plates in the chilled island well make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separatley.
- Curved display in bright polished steel and aluminium profile
- Features eye level gantry mounted digital temperature display & control panel ( to operator side of display) * Controls can be fitted to customer side of the display on request*
- 24 hour operation as standard
- Product illumination is provided from diffused lighting within the gantry
- Curved glass profile is designed to complement other units within the Designline range
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- The 3/1 Gn well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
- Gantry fitted with curved toughened glass sneeze screen for food protection
- Self help application
Additional information
| Brand | Designline |
|---|---|
| Capacity | 3x 1/1 GN |
| Dimensions | 535(H) x 1175(W) x 660(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Power | Plug |
| Gastronorm Size | 1/1 GN full |
| Height (mm) | 535 |
| Product Cooling Type | Fan Assist |
| Main Category | Servery & Display Machines |
| Product Depth | 660 |
| Product Type | Salad Bars |
| Delivery To Ireland | 8-10 weeks |
| Temperature Range | -1°C to 5°C |
| Operating Temperature Range | -1 °C to 5 °C |
| Light Type | LED |
| Blade Material External | Stainless Steel |
| Finish Type | Stainless Steel |
| Feat Type | Feet |
| Width (mm) | 1175 |
| Sub Category | Food Display and Gantry |
| Secondary Colour | Chrome |
| Section | Salad Bars |
| Product Weight | 111kg |
| Internal Dimensions | 115(H) x 1050(W) x 550(D)mm |
| Power Type | 1.22kW, 230V, 13A |
| Refrigerant Type | R290 / GWP 3 / 365g |
| Noise Level (dB) | 63.8 |
| Capacity (ml) | 93.06 |
| Wattage | 1.22 |
| Supplier Reference | CW3HT |
| Weight | 111 kg |
Frequently Asked Questions
CED Designline Drop In Cold Well Self Service 1175mm FAQs
What is the CED Designline Drop In Cold Well Self Service 1175mm best suited to?
The CED Designline Drop In Cold Well Self Service 1175mm is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Designline Drop In Cold Well Self Service 1175mm provide?
The CED Designline Drop In Cold Well Self Service 1175mm has a capacity of 3x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Designline Drop In Cold Well Self Service 1175mm operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Designline Drop In Cold Well Self Service 1175mm control and maintain temperature?
The CED Designline Drop In Cold Well Self Service 1175mm provides these operating features:
- Curved display in bright polished steel and aluminium profile
- Features eye level gantry mounted digital temperature display & control panel ( to operator side of display) * Controls can be fitted to customer side of the display on request*
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- (Cold well area) Drinks display examples: bottled, canned or carton drinks, lemonade, fruit juice. Food display examples: Pies, pasties, sausage rolls, cream cakes & fruit
- The 3/1 Gn well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
How is stock arranged inside the CED Designline Drop In Cold Well Self Service 1175mm?
The internal arrangement includes 1/1 GN full gastronorm compatibility. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Designline Drop In Cold Well Self Service 1175mm use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 365g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Designline Drop In Cold Well Self Service 1175mm?
The CED Designline Drop In Cold Well Self Service 1175mm measures 535(H) x 1175(W) x 660(D)mm and has a net product weight of 111kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Designline Drop In Cold Well Self Service 1175mm require?
The CED Designline Drop In Cold Well Self Service 1175mm requires an electrical supply rated at 1.22kW, 230V, 13A. A plug is fitted.
How should the CED Designline Drop In Cold Well Self Service 1175mm be cleaned and maintained?
Clean the CED Designline Drop In Cold Well Self Service 1175mm interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Designline Drop In Cold Well Self Service 1175mm model for ordering and support?
Quote Smart Hospitality Supplies product code CW611 when ordering or requesting support. The model reference is CW3HT. It includes a one-year warranty.
