Designline Cold Multi Level Deli Assisted Service 1175mm
Designline Cold Multi Level Deli Assisted Service 1175mm - Salad Bars
3x 1/1 GN Capacity. 1175mm Wide
Original price was: £6,210.99.£5,240.19Current price is: £5,240.19. Ex. VAT
Description

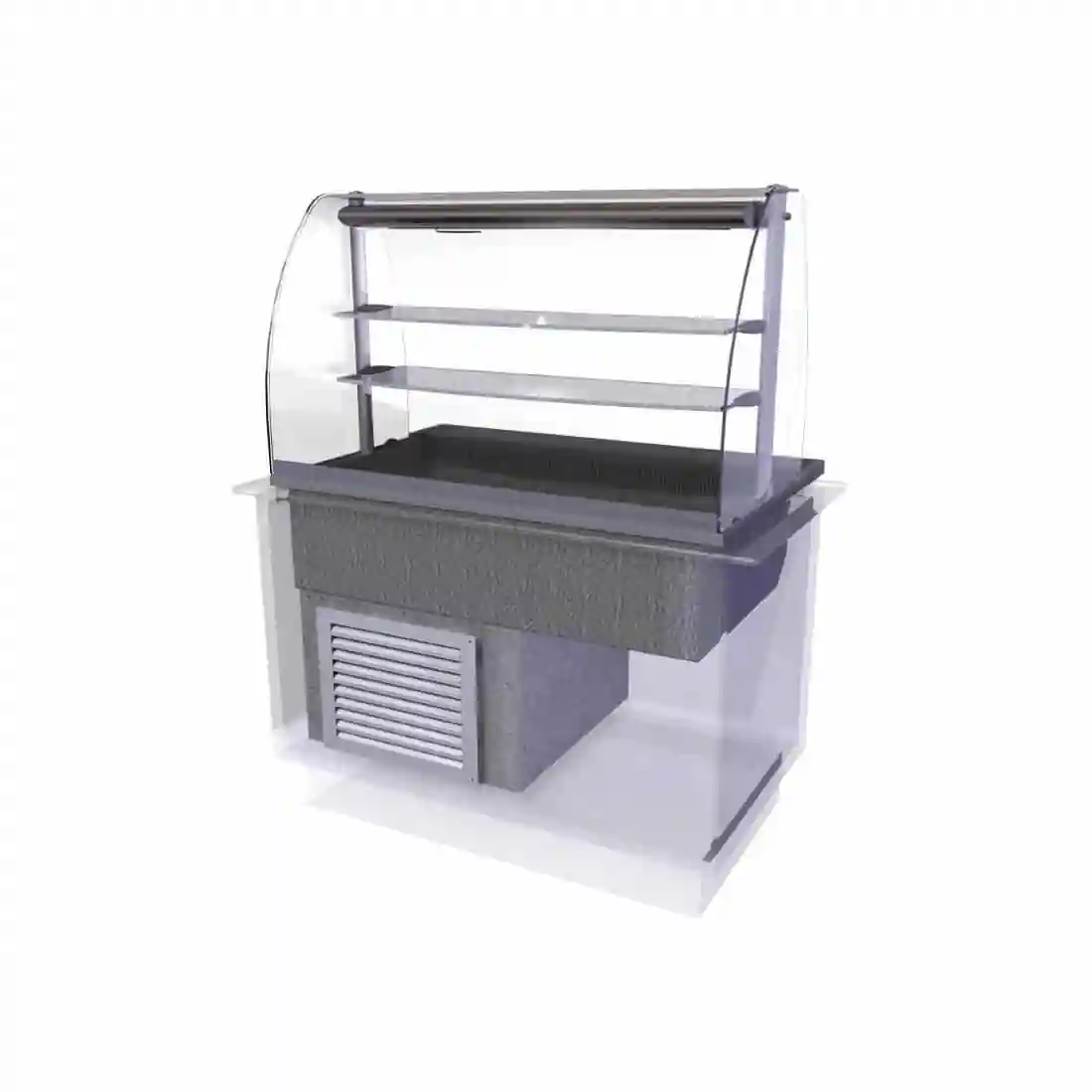

Illuminate, chill and protect refrigerated food or drink with CED’s elliptically shaped Designline assisted service cold multi level deli drop in display. This energy efficient 3/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and alluminum curved profiles, with curved & toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the elliptical profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard & holds food core between 2 – 5 deg. C. Modular removable deck plates in the chilled well make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. Optional chopping boards fit over the rear display shelf providing a local sandwich preparation area. Additional ambient display space is also provided by two toughened glass mid shelves within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separatley.
- Curved display in bright polished steel and aluminium profile
- Features eye level gantry mounted digital temperature display & control panel ( to operator side of display)
- 24 hour operation as standard
- Product illumination is provided from diffused lighting within the gantry
- Two additional ambient glass mid shelves provide additional merchandising space above the cold display area
- Curved glass profile is designed to complement other units within the Designline range
- (Cold well area) Drinks display examples: bottled drinks, water, lager, fruit juice. Food display examples: Pies, pasties, sausage rolls, sandwich fillings, rolls, pasta
- (Ambient shelving area) : Food display examples : Danish pastries, muffins, fruit cake, biscuits, fruit, rice cakes, tacos, crisps, nuts. * Sandwiches, baguettes, rolls
- The 3/1 Gn well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
- Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
- Assisted service application
Additional information
| Brand | Designline |
|---|---|
| Capacity | 3 X 1/1 GN |
| Dimensions | 695(H) x 1175(W) x 784(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Power | Plug |
| Gastronorm Size | 1/1 GN full |
| Product Cooling Type | Fan Assist |
| Main Category | Servery & Display Machines |
| Product Type | Salad Bars |
| Product Weight | 152kg |
| Delivery To Ireland | 8-10 weeks |
| Temperature Range | -1°C to 5°C |
| Operating Temperature Range | -1 °C to 5 °C |
| Light Type | LED |
| Blade Material External | Stainless Steel |
| Finish Type | Stainless Steel |
| Feat Type | Feet |
| Width (mm) | 1175 |
| Sub Category | Food Display and Gantry |
| Secondary Colour | Chrome |
| Height (mm) | 695 |
| Section | Salad Bars |
| Internal Dimensions | 115(H) x 1050(W) x 550(D)mm |
| Power Type | 1.22kW, 230V, 13A |
| Refrigerant Type | R290 / GWP 3 / 365g |
| Product Depth | 784 |
| Noise Level (dB) | 63.8 |
| Capacity (ml) | 93.06 |
| Wattage | 1.22 |
| Supplier Reference | CMDL3HT |
| Weight | 152 kg |
Frequently Asked Questions
CED Designline Cold Multi Level Deli Assisted Service 1175mm FAQs
What is the CED Designline Cold Multi Level Deli Assisted Service 1175mm best suited to?
The CED Designline Cold Multi Level Deli Assisted Service 1175mm is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Designline Cold Multi Level Deli Assisted Service 1175mm provide?
The CED Designline Cold Multi Level Deli Assisted Service 1175mm has a capacity of 3 x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Designline Cold Multi Level Deli Assisted Service 1175mm operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Designline Cold Multi Level Deli Assisted Service 1175mm control and maintain temperature?
The CED Designline Cold Multi Level Deli Assisted Service 1175mm provides these operating features:
- Curved display in bright polished steel and aluminium profile
- Features eye level gantry mounted digital temperature display & control panel ( to operator side of display)
- Two additional ambient glass mid shelves provide additional merchandising space above the cold display area
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- (Cold well area) Drinks display examples: bottled drinks, water, lager, fruit juice. Food display examples: Pies, pasties, sausage rolls, sandwich fillings, rolls, pasta
How is stock arranged inside the CED Designline Cold Multi Level Deli Assisted Service 1175mm?
The internal arrangement includes 1/1 GN full gastronorm compatibility. Two additional ambient glass mid shelves provide additional merchandising space above the cold display area. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Designline Cold Multi Level Deli Assisted Service 1175mm use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 365g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Designline Cold Multi Level Deli Assisted Service 1175mm?
The CED Designline Cold Multi Level Deli Assisted Service 1175mm measures 695(H) x 1175(W) x 784(D)mm and has a net product weight of 152kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Designline Cold Multi Level Deli Assisted Service 1175mm require?
The CED Designline Cold Multi Level Deli Assisted Service 1175mm requires an electrical supply rated at 1.22kW, 230V, 13A. A plug is fitted.
How should the CED Designline Cold Multi Level Deli Assisted Service 1175mm be cleaned and maintained?
Clean the CED Designline Cold Multi Level Deli Assisted Service 1175mm interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Designline Cold Multi Level Deli Assisted Service 1175mm model for ordering and support?
Quote Smart Hospitality Supplies product code CW609 when ordering or requesting support. The model reference is CMDL3HT. It includes a one-year warranty.
