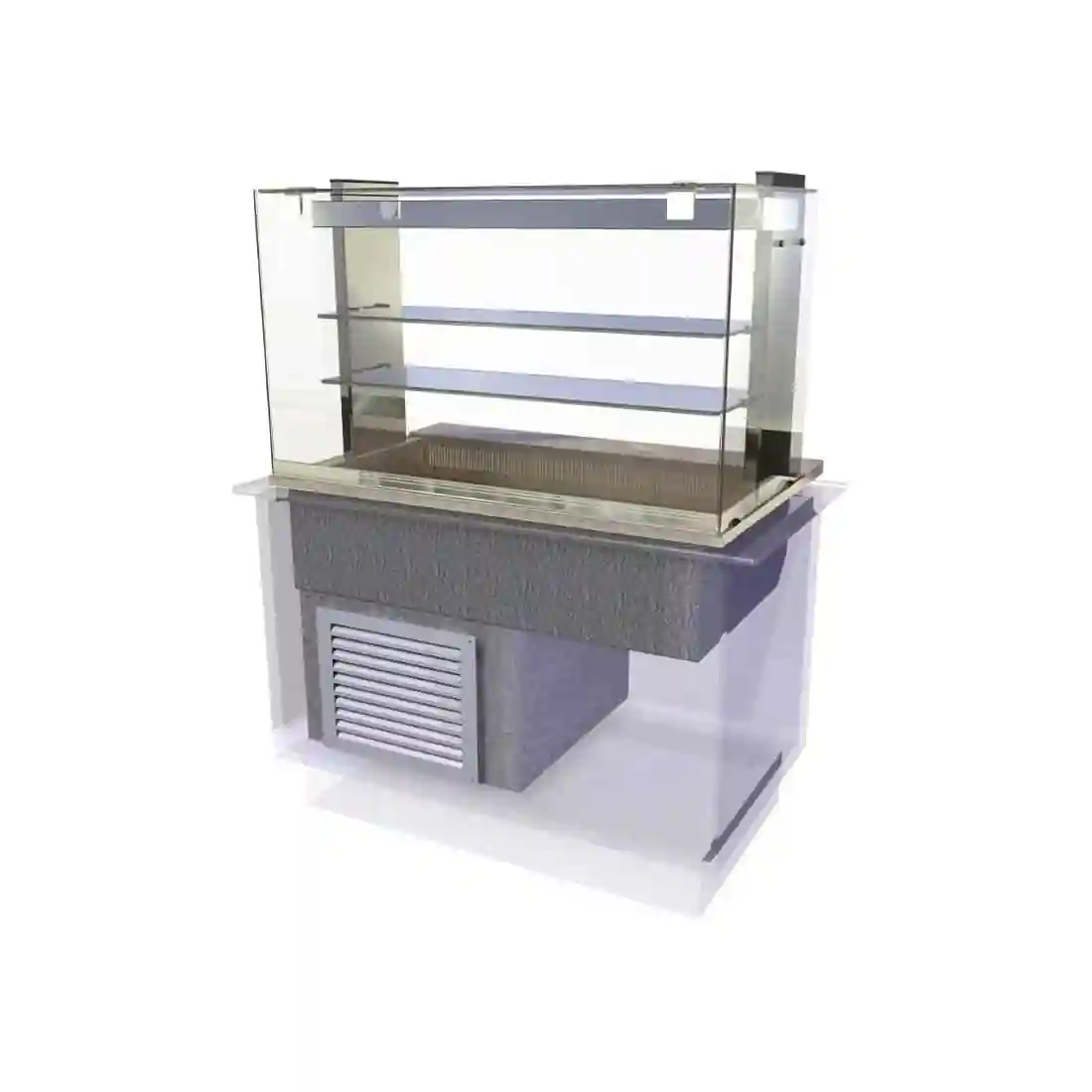

Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT - Drop In Units

Kubus brand
Checking delivery information...

4x 1/1 GN Capacity. 1525mm Wide

Original price was: £6,917.99.Current price is: £5,515.99. Ex. VAT

We are £84.00 cheaper than the UK’s leading brand!
Price Checked: 18/11/26

Description

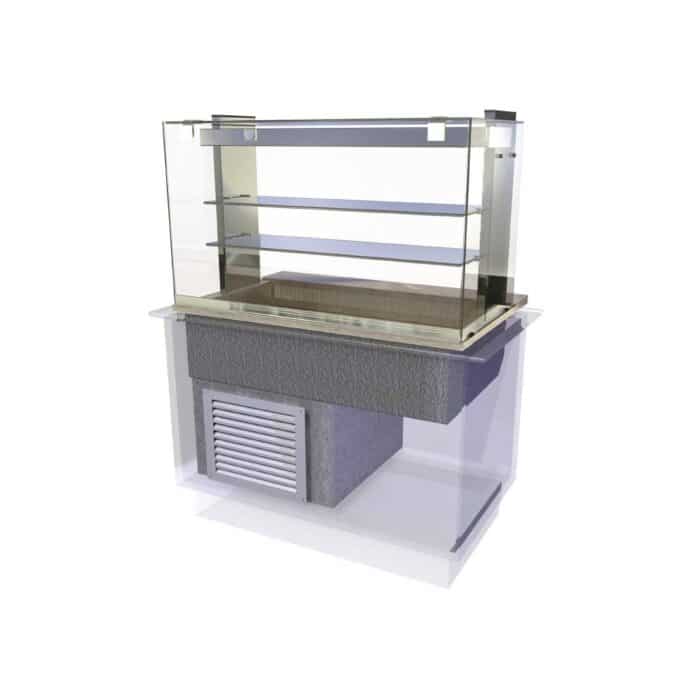

Illuminate, chill and protect refrigerated food or drink with CED’s rectangular shaped Kubus assisted service cold multi level deli drop in display. This energy efficient 4/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and aluminium rectangular profiles, with flat and toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2°C to 5°C. Modular removable deck plates in the chilled well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. Optional chopping boards fit over the rear display shelf providing a local sandwich preparation area. Additional ambient display space is also provided by two toughened glass mid shelves within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separately.

  • Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
  • Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
  • 24 hour operation as standard
  • Product illumination is provided from diffused lighting within the gantry
  • Two additional ambient glass mid shelves provide additional merchandising space above the cold display area
  • Flat glass profile is designed to complement other units within the Kubus range
  • Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
  • (Cold well area) Drinks display examples: bottled or carton drinks, fruit juice. Food display examples: Pies, pasties, sausage rolls, rolls, pasta & fruit
  • The 4/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
  • Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
  • Assisted service application

Additional information

BrandKubus
Capacity4 x 1/1 GN
Dimensions700(H) x 1525(W) x 784(D)mm
Is A Plug Fitted?Yes
Voltage230V
Manufacturers Warranty1 Year
Product FamilyCatering Appliances
Main ColourSilver
PowerPlug
Gastronorm Size1/1 GN full
Product Cooling TypeFan Assist
Main CategoryServery & Display Machines
Product TypeSalad Bars
Delivery To Ireland8-10 weeks
Temperature Range-1°C to 5°C
Operating Temperature Range-1 °C to 5 °C
Light TypeLED
Height (mm)700
Product Weight175kg
Blade Material ExternalStainless Steel
Finish TypeStainless Steel
Feet TypeFeet
Sub CategoryFood Display and Gantry
SectionSalad Bars
Width (mm)1525
Suitable ForCanteen
Product Depth784
Noise Level (dB)63.8
Internal Dimensions115(H) x 1400(W) x 550(D)mm
Power Type1.46kW, 230V, 13A
Refrigerant TypeR290 / GWP 3 / 420g
Capacity (ml)120.78
Wattage1.46
Secondary ColourChrome & Black
Supplier ReferenceKCMDL4HT
Weight175 kg

Frequently Asked Questions

CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT FAQs

What is the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT best suited to?

The CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.

What capacity does the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT provide?

The CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT has a capacity of 4 x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.

What temperature range does the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT operate at?

The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.

How does the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT control and maintain temperature?

The CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT provides these operating features:

  • Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
  • Two additional ambient glass mid shelves provide additional merchandising space above the cold display area
  • Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
  • Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
  • (Cold well area) Drinks display examples: bottled or carton drinks, fruit juice. Food display examples: Pies, pasties, sausage rolls, rolls, pasta & fruit

How is stock arranged inside the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT?

The internal arrangement includes 1/1 GN full gastronorm compatibility. Two additional ambient glass mid shelves provide additional merchandising space above the cold display area. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.

What cooling system and refrigerant does the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT use?

The cooling system is Fan Assist. It uses R290 / GWP 3 / 420g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.

What are the dimensions and net weight of the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT?

The CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT measures 700(H) x 1525(W) x 784(D)mm and has a net product weight of 175kg. Check the delivery route, final position and required operating clearances before ordering.

What power supply does the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT require?

The CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT requires an electrical supply rated at 1.46kW, 230V, 13A. A plug is fitted.

How should the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT be cleaned and maintained?

Clean the CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.

How can I identify the correct CED Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT model for ordering and support?

Quote Smart Hospitality Supplies product code CW631 when ordering or requesting support. The model reference is KCMDL4HT. It includes a one-year warranty.

About Kubus

Kubus brand
With elegant, deco cubist designs, Kubus produce fantastically classic rectilinear style drop-in displays which delight customers, at the same time as being reliable, powerful and environmentally friendly. The attention to detail is clear – with clean, rectilinear designs and chrome finishes, Kubus drop-in ambient, chilled and heated displays are ideal for the most discerning of businesses.
