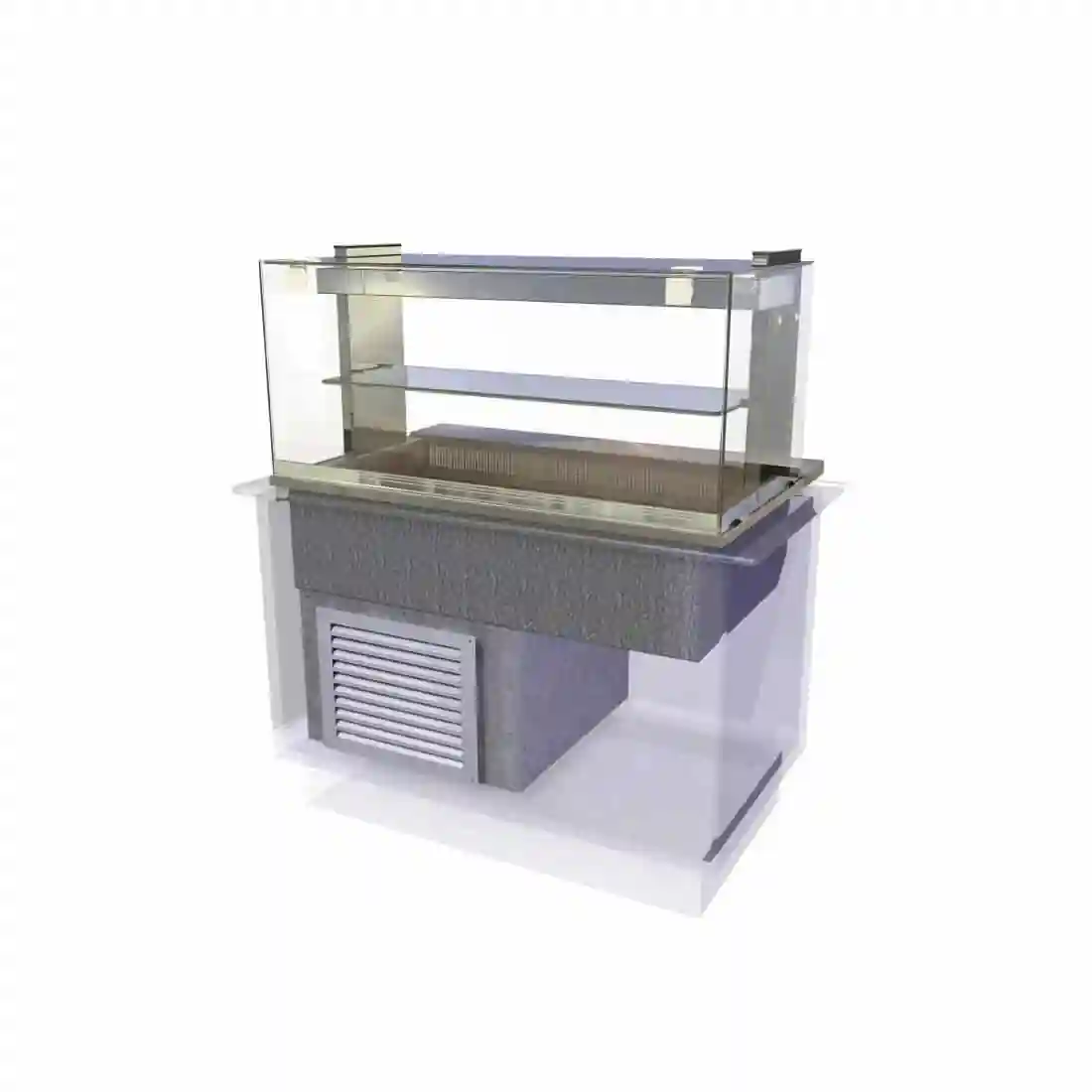

Kubus Drop In Chilled Deli Serve Over Counter 1175mm KCDL3HT - Salad Bars
3x 1/1 GN Capacity. 1175mm Wide
Original price was: £6,412.99£7,695.59.£5,387.94£6,465.53Current price is: £5,387.94£6,465.53. Excl. VATIncl. VAT
Description
Illuminate, chill and protect refrigerated food or drink with CED’s rectangular shaped Kubus assisted service cold deli drop in display. This energy efficient 3/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and aluminium rectangular profiles, with flat and toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2°C to 5°C. Modular removable deck plates in the chilled well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. Optional chopping boards fit over the rear display shelf providing a local sandwich preparation area. Additional ambient display space is also provided by a toughened glass mid shelf within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separately.
- Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
- Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
- 24 hour operation as standard
- Product illumination is provided from diffused lighting within the gantry
- A single ambient glass mid shelf provides additional merchandising space
- Flat glass profile is designed to complement other units within the Kubus range
- (Cold well area) Drinks display examples: carton drinks, water, lemonade, wine, beer. Food display examples: Pies, pasties, rolls, pasta, cream cakes & fruit
- (Ambient shelving area) : Food display examples : Danish pastries, muffins, donuts, fruit cake, biscuits, crackers, rice cakes, tacos. Sandwiches, baguettes & cheese
- The 3/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
- Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
- Assisted service application
Additional information
| Pack Size Qty | 1 |
|---|---|
| Brand | Kubus |
| Weight | 133 kg |
Frequently Asked Questions
CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT FAQs
What is the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT best suited to?
The CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT provide?
The CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT has a capacity of 3 x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT control and maintain temperature?
The CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT provides these operating features:
- Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- (Cold well area) Drinks display examples: carton drinks, water, lemonade, wine, beer. Food display examples: Pies, pasties, rolls, pasta, cream cakes & fruit
- (Ambient shelving area) : Food display examples : Danish pastries, muffins, donuts, fruit cake, biscuits, crackers, rice cakes, tacos. Sandwiches, baguettes & cheese
- The 3/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
How is stock arranged inside the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT?
The internal arrangement includes 1/1 GN full gastronorm compatibility. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 365g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT?
The CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT measures 540(H) x 1175(W) x 784(D)mm and has a net product weight of 133kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT require?
The CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT requires an electrical supply rated at 1.22kW, 230V, 13A. A plug is fitted.
How should the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT be cleaned and maintained?
Clean the CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Kubus Drop In Chilled Deli Serve Over Display 1175mm KCDL3HT model for ordering and support?
Quote Smart Hospitality Supplies product code CW626 when ordering or requesting support. The model reference is KCDL3HT. It includes a one-year warranty.
