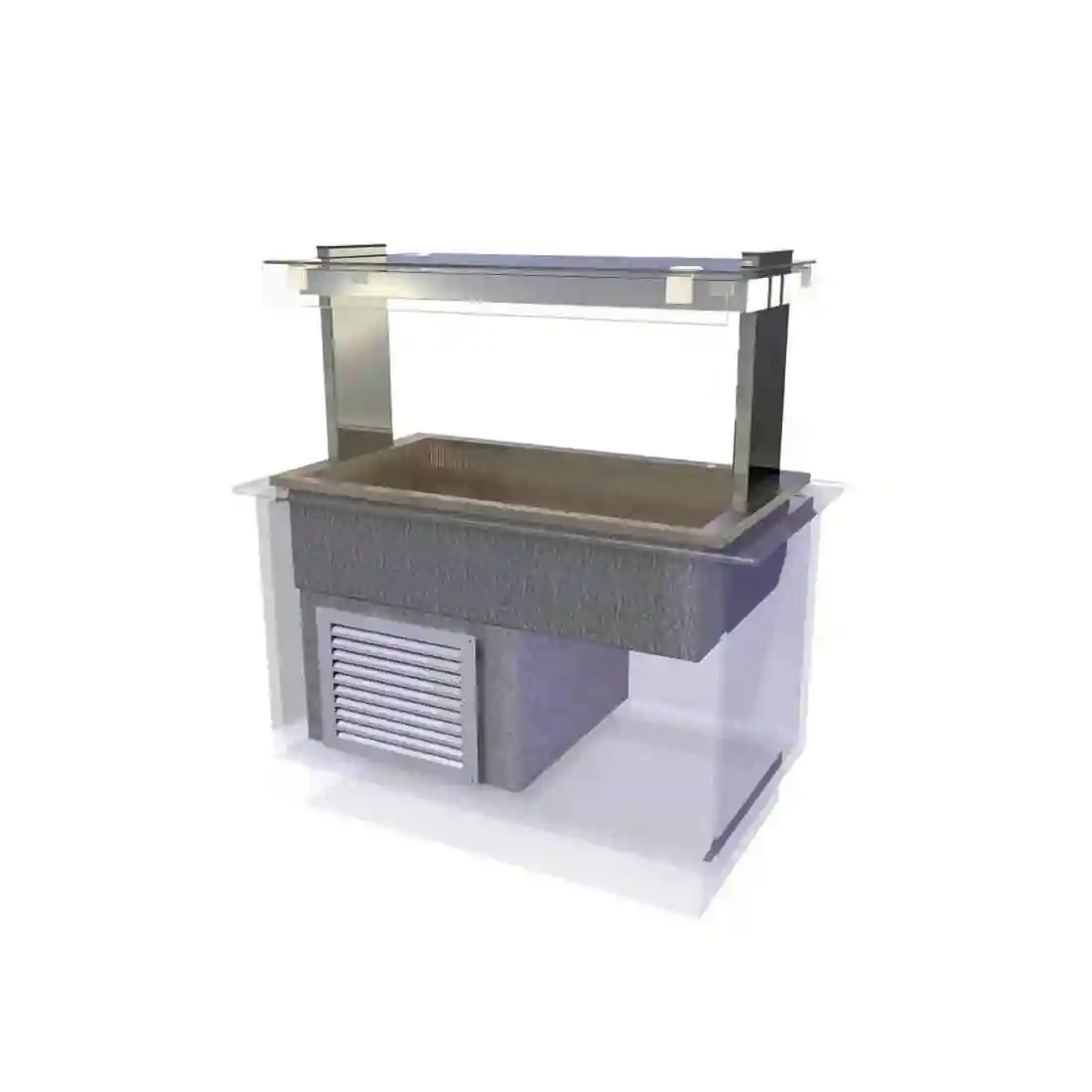

Kubus Drop In Cold Island Well Self Service 1175mm
Kubus Drop In Cold Island Well Self Service 1175mm - Salad Bars
3x 1/1 GN Capacity. 1175mm Wide
Original price was: £5,655.99.£4,767.39Current price is: £4,767.39. Ex. VAT
Description
Illuminate, chill and protect refrigerated food or drink with CED’s rectangular shaped Kubus self help cold island well drop in display. This energy efficient 3/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The self help superstructure is made from bright polished steel and aluminium rectangular profiles, with flat and toughened glass sneeze screen protection providing customer access to both sides of the display. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2°C to 5°C. Modular removable deck plates in the chilled island well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separately.
- Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
- Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
- 24 hour operation as standard
- Product illumination is provided from diffused lighting within the gantry
- Flat glass profile is designed to complement other units within the Kubus range
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- The 3/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
- Gantry fitted with flat toughened glass sneeze screen to each side of display, for food protection
- Self help application
Additional information
| Brand | Kubus |
|---|---|
| Capacity | 3 X 1/1 GN |
| Dimensions | 540(H) x 1175(W) x 660(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Product Family | Catering Appliances |
| Main Colour | Silver |
| Height (mm) | 540 |
| Power | Plug |
| Gastronorm Size | 1/1 GN full |
| Product Cooling Type | Fan Assist |
| Main Category | Servery & Display Machines |
| Product Depth | 660 |
| Product Type | Salad Bars |
| Delivery To Ireland | 8-10 weeks |
| Temperature Range | -1°C to 5°C |
| Operating Temperature Range | -1 °C to 5 °C |
| Light Type | LED |
| Product Weight | 116kg |
| Blade Material External | Stainless Steel |
| Finish Type | Stainless Steel |
| Feat Type | Feet |
| Width (mm) | 1175 |
| Sub Category | Food Display and Gantry |
| Section | Salad Bars |
| Suitable For | Canteen |
| Internal Dimensions | 115(H) x 1050(W) x 550(D)mm |
| Power Type | 1.22kW, 230V, 13A |
| Refrigerant Type | R290 / GWP 3 / 365g |
| Noise Level (dB) | 63.8 |
| Capacity (ml) | 93.06 |
| Wattage | 1.22 |
| Secondary Colour | Chrome & Black |
| Supplier Reference | KCIW3HT |
| Weight | 116 kg |
Frequently Asked Questions
CED Kubus Drop In Cold Island Well Self Service 1175mm FAQs
What is the CED Kubus Drop In Cold Island Well Self Service 1175mm best suited to?
The CED Kubus Drop In Cold Island Well Self Service 1175mm is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Kubus Drop In Cold Island Well Self Service 1175mm provide?
The CED Kubus Drop In Cold Island Well Self Service 1175mm has a capacity of 3 x 1/1 GN. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Kubus Drop In Cold Island Well Self Service 1175mm operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Kubus Drop In Cold Island Well Self Service 1175mm control and maintain temperature?
The CED Kubus Drop In Cold Island Well Self Service 1175mm provides these operating features:
- Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- (Cold well area) Drinks display examples: bottled drinks, water, wine, fruit juice. Food display examples: Pies, pasties, sandwich fillings, rolls, pasta & fruit
- The 3/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
- Gantry fitted with flat toughened glass sneeze screen to each side of display, for food protection
How is stock arranged inside the CED Kubus Drop In Cold Island Well Self Service 1175mm?
The internal arrangement includes 1/1 GN full gastronorm compatibility. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Kubus Drop In Cold Island Well Self Service 1175mm use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 365g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Kubus Drop In Cold Island Well Self Service 1175mm?
The CED Kubus Drop In Cold Island Well Self Service 1175mm measures 540(H) x 1175(W) x 660(D)mm and has a net product weight of 116kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Kubus Drop In Cold Island Well Self Service 1175mm require?
The CED Kubus Drop In Cold Island Well Self Service 1175mm requires an electrical supply rated at 1.22kW, 230V, 13A. A plug is fitted.
How should the CED Kubus Drop In Cold Island Well Self Service 1175mm be cleaned and maintained?
Clean the CED Kubus Drop In Cold Island Well Self Service 1175mm interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Kubus Drop In Cold Island Well Self Service 1175mm model for ordering and support?
Quote Smart Hospitality Supplies product code CW628 when ordering or requesting support. The model reference is KCIW3HT. It includes a one-year warranty.
