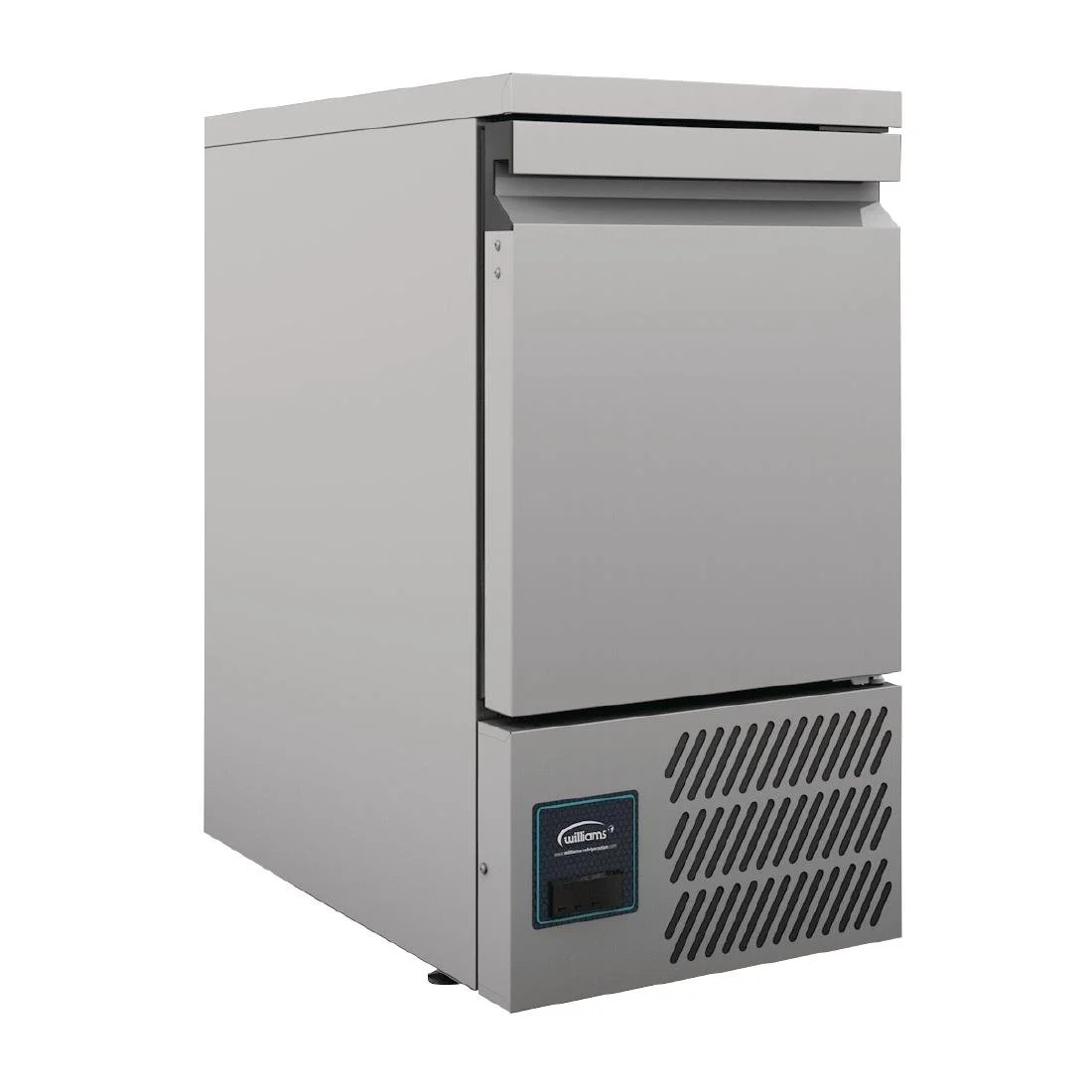

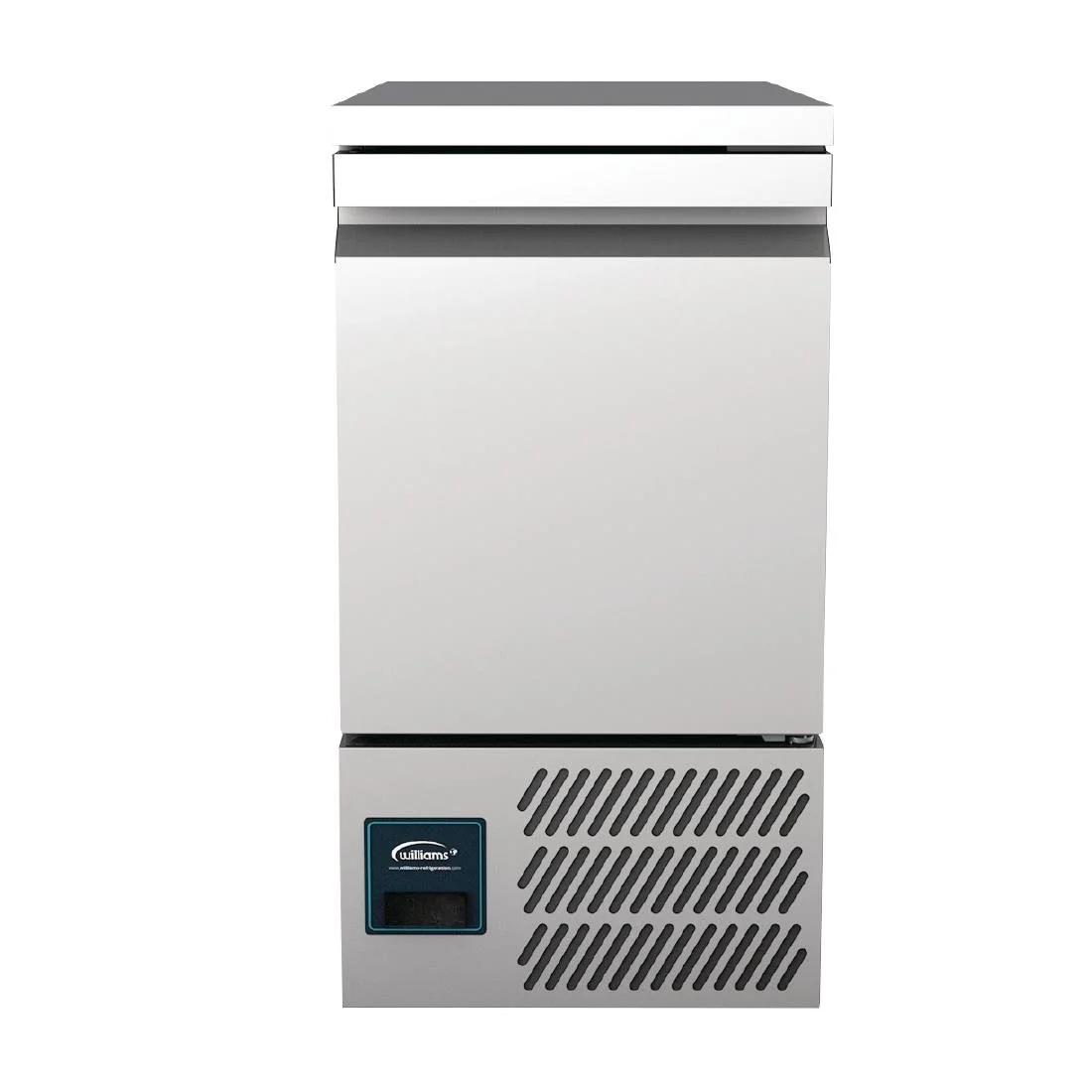

Williams Aztra Undercounter Freezer 109Ltr LAZ5CT-SA
Williams Aztra Undercounter Freezer 109Ltr LAZ5CT-SA - Counter Freezers
231W. Total usable capacity: 76Ltr. R290
Original price was: £2,439.99.£1,920.74Current price is: £1,920.74. Ex. VAT
Description
The Aztra range of single and double door undercounter gastronorm cabinets save space while offering practical storage solutions, even in ambient up to 43°C.
- Self-closing door with integrated easy-grab handle
- Two removable shelves offer adjustable storage space
- 1/1GN compatibility for easy transfer of gastronorms
- 76Ltr of usable capacity from a 455 x 734mm footprint
- CoolSmart controller for easy use and clear displays
- Front-vented for easy installation into tight spaces
- Rear castors with adjustable front feet for stability
- Operates efficiently in ambient temperatures up to 30°C
- Advanced airflow design eliminates potential warm spots
- Stainless steel exterior with aluminium interior walls
- 75mm polyurethane insulation with low GWP and zero ODP
- Magnetic balloon door gasket with 100% tight seal
Additional information
| Brand | Williams |
|---|---|
| Eco-Friendly | No |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Delivery To Ireland | 4-5 weeks |
| Main Colour | Silver |
| Secondary Colour | Silver |
| Manufacturers Warranty | 2 Years |
| Refrigerant Type | R290 / GWP 3 |
| Product Family | Refrigeration |
| Power | Plug |
| Mobility | Feet |
| Gastronorm Size | 1/1 GN full |
| Number Of Seats | 2 |
| Energy Rating | C |
| Intended Use | Professional |
| Number Of Fridge Doors | 1 |
| Material | Stainless Steel & Aluminium |
| Product Cooling Type | Air |
| Product Weight | 67kg |
| Feat Type | Feet |
| Climate Class | 4 |
| Sub Category | Freezers |
| Width (mm) | 455 |
| Environment Usage | This appliance is intended for use in ambient temperatures up to 30°C |
| Height (mm) | 870 |
| Section | Under Counter Freezers |
| Product Type | Under Counter Freezers |
| Temperature Range | -18°C to -22°C |
| Operating Temperature Range | -18 °C to -22 °C |
| Range Name | Aztra |
| Capacity | 109Ltr |
| Dimensions | 870(H) x 455(W) x 734(D)mm |
| Product Depth | 734 |
| Capacity (ml) | 109 |
| Net Volume | 76Ltr |
| 24hr Energy Consumption | 3.75kWh/24hr |
| Annual Energy Consumption | 1369kWh/annum |
| Energy Efficiency Index | 48.47 |
| Model Number | LAZ5CT HC R2 |
| Wattage | 231 |
Frequently Asked Questions
Williams Aztra Undercounter Freezer 109Ltr LAZ5CT-SA FAQs
Which commercial kitchens would benefit from the Williams Aztra undercounter freezer FD363?
The Williams Aztra undercounter freezer is a professional, silver, 1-door cabinet for space-conscious hospitality kitchens. Its narrow format provides practical frozen storage beneath a counter while retaining access to gastronorm-compatible shelving.
What storage capacity does the Williams Aztra LAZ5CT-SA freezer provide?
The cabinet has a 109Ltr nominal capacity and 76Ltr of usable net volume. Its 2 removable shelves allow the storage layout to be adjusted, and full-size 1/1 GN compatibility supports efficient transfer of suitable gastronorm containers.
What are the dimensions of the Williams Aztra narrow undercounter freezer?
The LAZ5CT-SA measures 870 mm high, 455 mm wide and 734 mm deep. Its 455 x 734 mm footprint is particularly useful where a conventional wider undercounter cabinet would consume too much of an equipment line-up.
What temperature and refrigeration system does the Williams Aztra LAZ5CT-SA use?
The freezer operates from -18°C to -22°C using R290 refrigerant with GWP 3. Its air-cooled system and advanced airflow help distribute cold air through the cabinet and reduce potential warm spots.
How is the Williams Aztra commercial freezer constructed?
It combines a stainless steel exterior with aluminium interior walls. The cabinet uses 75 mm polyurethane insulation with low global-warming potential and zero ozone-depletion potential, plus a magnetic balloon door gasket designed to form a tight seal.
How convenient is the Williams Aztra narrow freezer during service?
Its self-closing door helps reduce the chance of being left open, while the integrated easy-grab handle supports quick access. The CoolSmart controller provides straightforward operation and a clear display for routine monitoring.
How is the Williams Aztra LAZ5CT-SA positioned in an equipment line-up?
Front-vented refrigeration supports use in tighter undercounter arrangements. Rear castors assist with positioning, and adjustable front feet stabilise the cabinet once it has been placed in its working location.
What electrical supply does the Williams Aztra LAZ5CT-SA freezer require?
The freezer is rated at 231W and 230V, and a plug is fitted. Buyers can use these values when checking the intended electrical connection and planning the cabinet's position.
What energy classification does the Williams Aztra LAZ5CT-SA have?
The freezer has Energy Rating: C, energy efficiency index 48.47 and climate class 4. These figures help buyers compare its assessed energy performance with other professional vertical freezer cabinets.
How much does the Williams Aztra LAZ5CT-SA freezer weigh?
The freezer has a net product weight of 67kg. This should be allowed for when planning delivery, handling and final positioning in the kitchen.
What warranty comes with the Williams Aztra narrow undercounter freezer?
The Williams Aztra undercounter freezer includes a 2-year manufacturer's warranty, providing cover for its initial period of professional use subject to the applicable terms.
How can I identify the Williams Aztra freezer LAZ5CT-SA when ordering?
The ordering reference is LAZ5CT-SA, with model reference LAZ5CT HC R2. These identifiers distinguish the narrow Aztra freezer from the wider AZ5UC cabinet and from chilled variants in the same range.
