Kubus Drop In Dry Heat Bain Marie KHBM4
Kubus Drop In Dry Heat Bain Marie KHBM4 - Bain Maries
Capacity: 4x 1/1 GN. Self Service. 1525mm Wide
Original price was: £2,726.99£3,272.39.£2,196.54£2,635.85Current price is: £2,196.54£2,635.85. Excl. VATIncl. VAT
Description

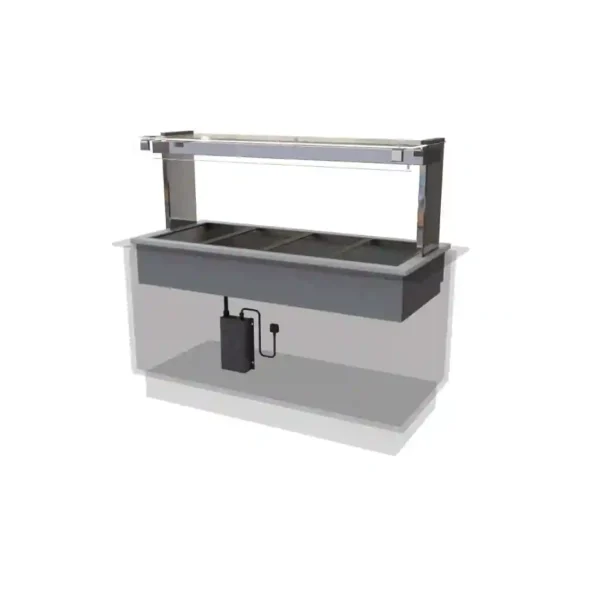

Display, illuminate, heat and protect pre-cooked food with CED’s rectangular shaped Kubus self help dry heat bain marie drop in display. This 4/1 GN size hot display features a 4/1 GN heated tank area and individual 1/1 GN gastronorm container support collars, which accept various sized GN containers up to 150mm deep. The display fits into a pre-formed cut out made in a countertop. The self help superstructure is made from bright polished steel and aluminum rectangular profiles, with flat, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted and ‘locked’ from the operator side of the gantry, by digital temperature display (control panel) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation and is factory set to hold food core at 85°C. Modular removable heater element covers in the heated well give even heat spread and make for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box and plug top on a 2M lead. GN’s Sold Separatley.
- Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
- Gantry fitted with flat toughened glass sneeze screen to customer side of display, for food protection
- 24 hour operation as standard
- Self help application
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
- Supplied with lifting kit for installation and concealed control box & plug top on a 2M lead
- Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN section, housed within a rectangular profile gantry
- Base heat is provided to each 1/1 GN section by individual heater elements
- Supplied with individual 1/1 gastronorm container support collars, which accept various sized GN containers up to 150mm deep
Additional information
| Pack Size Qty | 1 |
|---|---|
| Brand | Kubus |
| Weight | 60 kg |
Frequently Asked Questions
CED Kubus Drop In Dry Heat Bain Marie KHBM4 FAQs
What is the CED Kubus Drop In Dry Heat Bain Marie KHBM4 best suited to?
The CED Kubus Drop In Dry Heat Bain Marie KHBM4 is designed for catering operations that need prepared food held and presented efficiently during service. Its commercial format supports an efficient, repeatable workflow. Its format is most valuable where the available capacity, services and operating pattern match the demands of the venue.
What capacity does the CED Kubus Drop In Dry Heat Bain Marie KHBM4 provide?
The CED Kubus Drop In Dry Heat Bain Marie KHBM4 has capacity 4 x 1/1 GN. This helps buyers compare the appliance with expected peak demand rather than relying on its external size alone.
What temperature range does the CED Kubus Drop In Dry Heat Bain Marie KHBM4 offer?
The temperature range is 85°C to 110°C. Use the thermostatic control to suit the food and service plan, and monitor holding temperatures as part of the venue's food-safety procedure.
How is the CED Kubus Drop In Dry Heat Bain Marie KHBM4 controlled during use?
Useful operating features include:
- Gantry fitted with flat toughened glass sneeze screen to customer side of display, for food protection
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
- Supplied with lifting kit for installation and concealed control box & plug top on a 2M lead
These controls help staff match the appliance to the task while keeping routine operation clear and repeatable.
How is food held and arranged in the CED Kubus Drop In Dry Heat Bain Marie KHBM4?
The gastronorm arrangement is 1/1 GN full. It uses Dry Heat. GN pans may be sold separately, so check the product configuration before ordering containers.
What are the dimensions and net weight of the CED Kubus Drop In Dry Heat Bain Marie KHBM4?
The CED Kubus Drop In Dry Heat Bain Marie KHBM4 measures 540(H) x 1525(W) x 660(D)mm and has a net product weight of 60kg. Check the full delivery route, final operating position and required working clearances before ordering.
What is the CED Kubus Drop In Dry Heat Bain Marie KHBM4 made from?
The CED Kubus Drop In Dry Heat Bain Marie KHBM4 has a Silver finish. This commercial format supports regular cleaning and helps the appliance fit into a busy back-of-house workflow.
What power supply does the CED Kubus Drop In Dry Heat Bain Marie KHBM4 require?
The CED Kubus Drop In Dry Heat Bain Marie KHBM4 requires a rated electrical input of 3kW, 230V, 13A. A plug is fitted.
How should the CED Kubus Drop In Dry Heat Bain Marie KHBM4 be cleaned and maintained?
Empty the appliance safely, allow hot surfaces to cool and clean the cupboard, wells and food-contact areas with suitable non-abrasive products. Drain wet wells where applicable and dry all parts before the next service.
How can I identify the correct CED Kubus Drop In Dry Heat Bain Marie KHBM4 model for ordering and support?
Use Smart Hospitality Supplies product code CW635 when identifying this appliance. The model reference is KHBM4. It carries a 1 Year warranty. Keeping these identifiers with your purchase records makes future parts, servicing and product enquiries much more precise.
