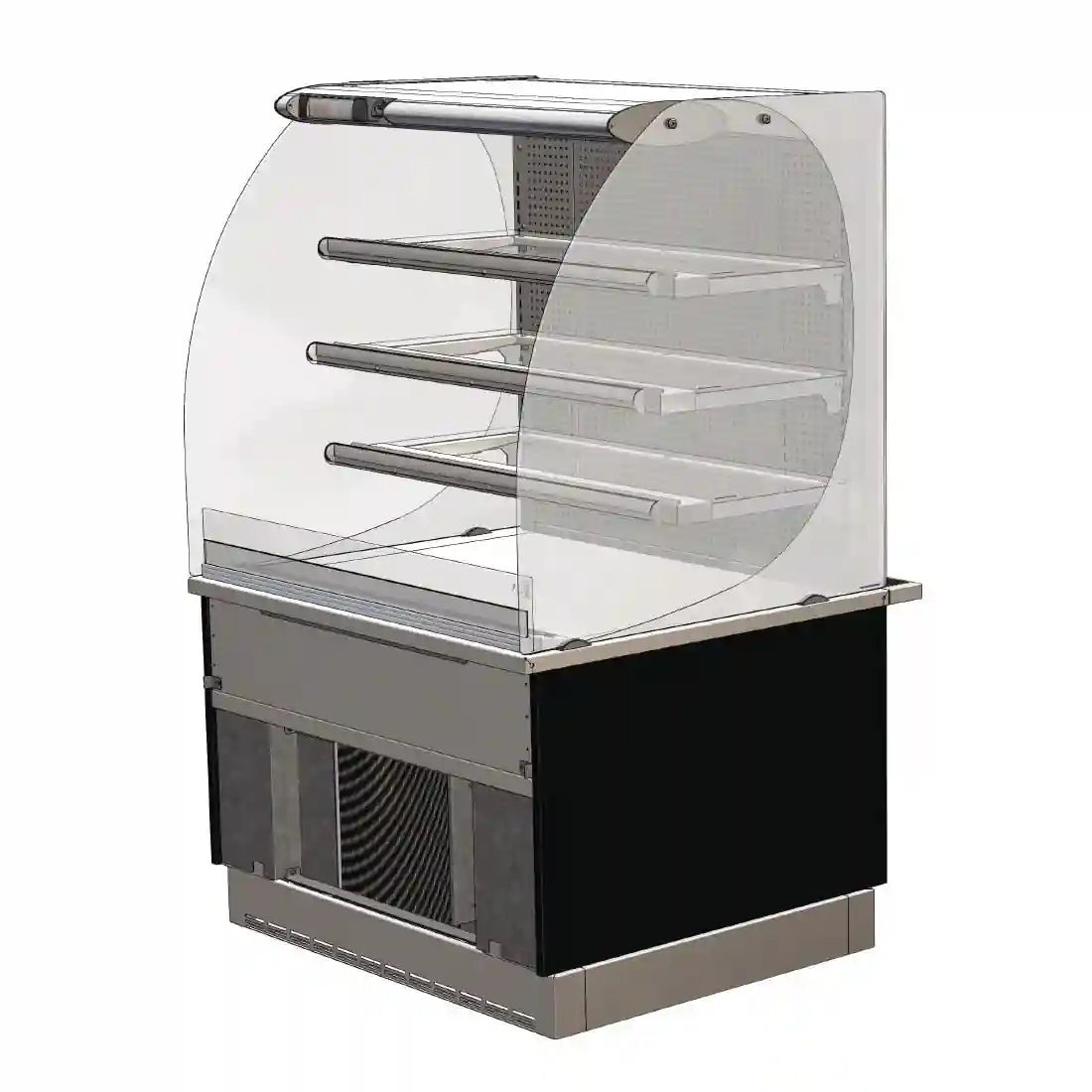

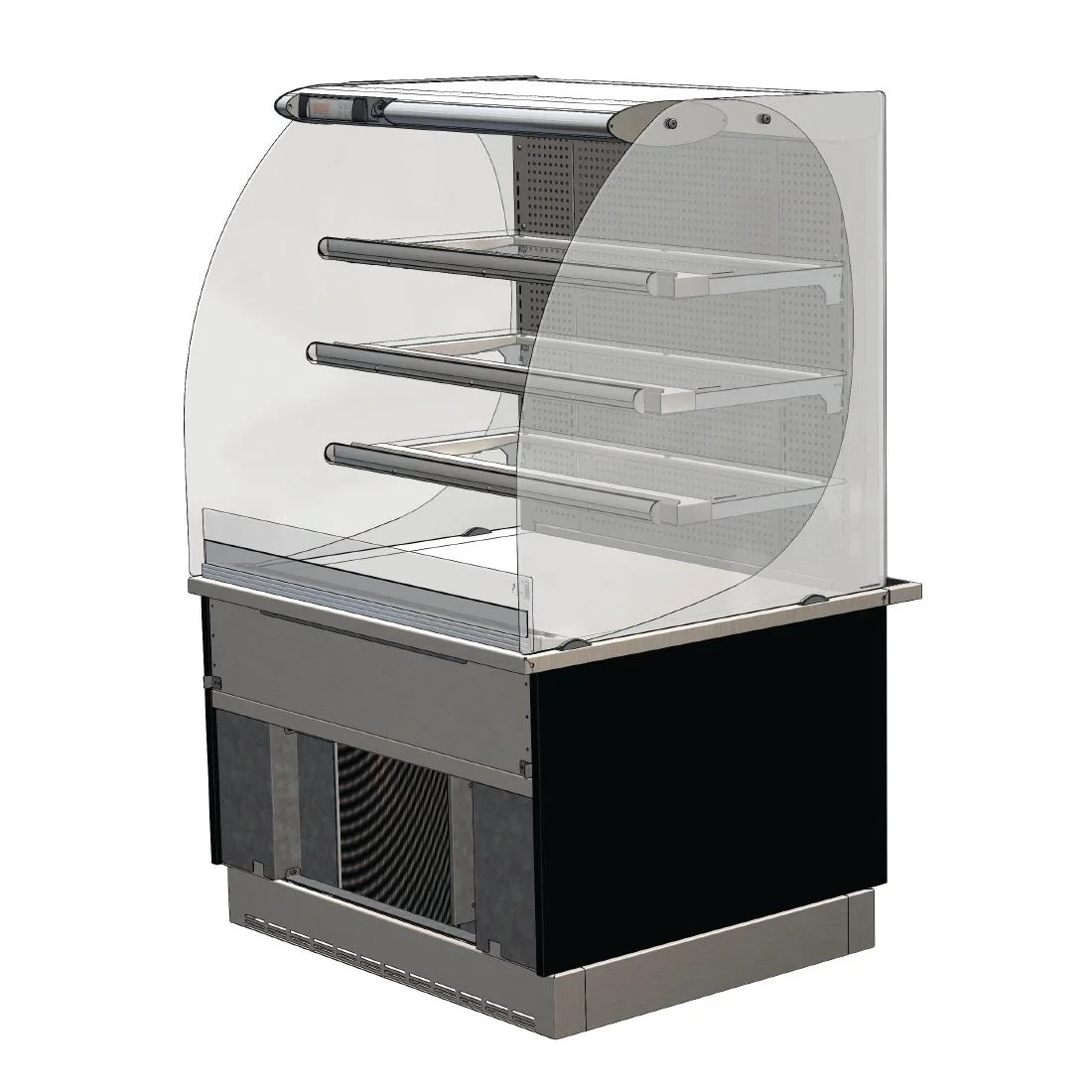

Designline Drop In Slimline Multideck Self Service 600mm
Designline Drop In Slimline Multideck Self Service 600mm - Display Fridges & Freezers
3 Shelves. Self Service. 600mm Wide. Fixed Back
Original price was: £6,412.99.£5,387.94Current price is: £5,387.94. Ex. VAT
Description
With curved glass side panels alongside tiered adjustable shelving, the Designline Drop In Cold Patisserie provides a compact and efficient method of merchandising your foodstuffs without taking up vast amounts of space. Point of sale strips and diffused lighting across the shelving pushes impulse buys from customers, and you may alter the shelves to the height and angle you desire for best fit. Operating on environmentally friend hydrocarbon refrigerant, the unit would be well fitted against a wall or alongside a queuing system to best merchandise your goods. Lockable castors and a levelling foot allow you to move this item easily for cleaning purposes. Other features include digital temperature control, removable deck plates and a water evaporator to remove the need for site drainage.
Please note: special-to-order. This product is non-returnable.
- Elliptical gantry in bright polished steel, & aluminium with toughened glass side panels. Black powder coated steel base unit. ( Fascia panel optional )
- Each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strip
- Gantry is fitted with toughened side glass protection to the customer side of the display
- Additional product illumination from diffused lighting within the curved profile gantry
- Curved glass profile is designed to complement other units within the Designline range
- Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
- Special-to-order. Non-returnable
- Drinks display examples: bottled, canned drinks, lemonade, wine, beer, fruit juice. Food display examples : Pies, pasties, sausage rolls, cheese, sandwiches, pastries
- Features 3 chilled toughened glass display shelves with adjustable height and angle
- The 600mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
- Freestanding for self service application. (Steel perforated back panels to display)
Additional information
| Brand | Designline |
|---|---|
| Dimensions | 1467(H) x 600(W) x 750(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Main Colour | Silver |
| Secondary Colour | Silver |
| Width (mm) | 600 |
| Main Category | Display Refrigeration |
| Product Family | Refrigeration |
| Product Depth | 750 |
| Power | Plug |
| Number Of Seats | 3 |
| Mobility | Feet |
| Product Cooling Type | Fan Assist |
| Delivery To Ireland | 8-10 weeks |
| Temperature Range | -1°C to 5°C |
| Operating Temperature Range | -1 °C to 5 °C |
| Product Type | Multidecks |
| Sub Category | Multideck Displays |
| Section | All Multidecks |
| Light Type | LED |
| Blade Material External | Stainless Steel |
| Finish Type | Stainless Steel |
| Product Weight | 145kg |
| Fridge Finish | Stainless Steel |
| Cooling Type | Refrigerator |
| Feat Type | Lockable Castors |
| Refrigerant Type | R290 / GWP 3 / 365g |
| Noise Level (dB) | 63.8 |
| Capacity | 247.3Ltr |
| Internal Dimensions | 707(H) x 570(W) x 610(D)mm |
| Height (mm) | 1467 |
| Capacity (ml) | 247.3 |
| Power Type | 1.47kW, 230V, 13A |
| Wattage | 1.47 |
| Supplier Reference | PC6FBHT |
| Weight | 145 kg |
Frequently Asked Questions
CED Designline Drop In Slimline Multideck Self Service 600mm FAQs
What is the CED Designline Drop In Slimline Multideck Self Service 600mm best suited to?
The CED Designline Drop In Slimline Multideck Self Service 600mm is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Designline Drop In Slimline Multideck Self Service 600mm provide?
The CED Designline Drop In Slimline Multideck Self Service 600mm has a capacity of 247.3Ltr. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Designline Drop In Slimline Multideck Self Service 600mm operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Designline Drop In Slimline Multideck Self Service 600mm control and maintain temperature?
The CED Designline Drop In Slimline Multideck Self Service 600mm provides these operating features:
- Gantry is fitted with toughened side glass protection to the customer side of the display
- Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
- Drinks display examples: bottled, canned drinks, lemonade, wine, beer, fruit juice. Food display examples : Pies, pasties, sausage rolls, cheese, sandwiches, pastries
- Freestanding for self service application. (Steel perforated back panels to display)
How is stock arranged inside the CED Designline Drop In Slimline Multideck Self Service 600mm?
The internal arrangement includes 3 shelves. Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Designline Drop In Slimline Multideck Self Service 600mm use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 365g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Designline Drop In Slimline Multideck Self Service 600mm?
The CED Designline Drop In Slimline Multideck Self Service 600mm measures 1467(H) x 600(W) x 750(D)mm and has a net product weight of 145kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Designline Drop In Slimline Multideck Self Service 600mm require?
The CED Designline Drop In Slimline Multideck Self Service 600mm requires an electrical supply rated at 1.47kW, 230V, 13A. A plug is fitted.
How should the CED Designline Drop In Slimline Multideck Self Service 600mm be cleaned and maintained?
Clean the CED Designline Drop In Slimline Multideck Self Service 600mm interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Designline Drop In Slimline Multideck Self Service 600mm model for ordering and support?
Quote Smart Hospitality Supplies product code CW659 when ordering or requesting support. The model reference is PC6FBHT. It includes a one-year warranty.
