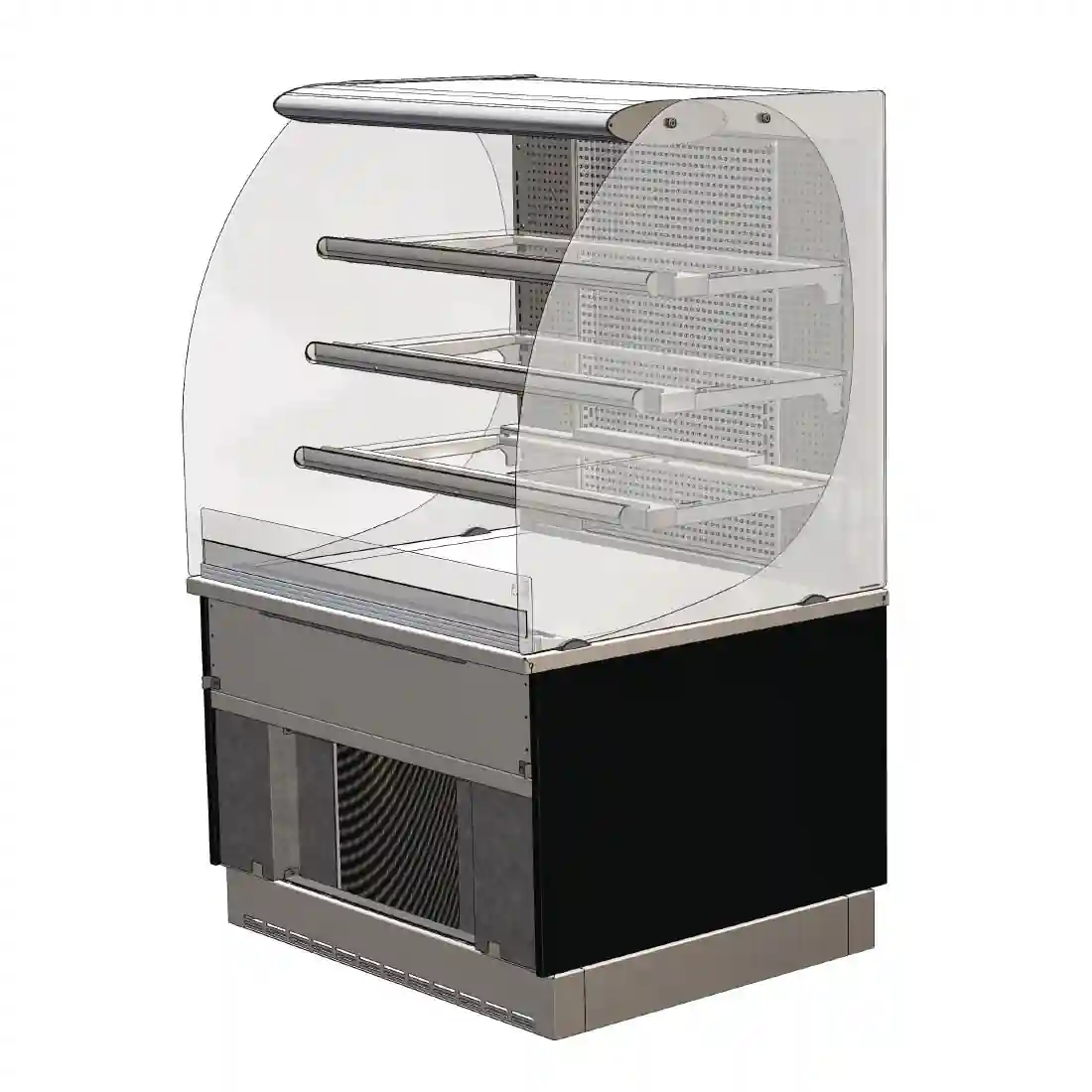

Designline Drop In Slimline Multideck with Rear Door 900mm
Designline Drop In Slimline Multideck with Rear Door 900mm - Display Fridges & Freezers
3 Shelves. Self Service. 900mm Wide. Rear Door
Original price was: £5,271.99.£4,678.74Current price is: £4,678.74. Ex. VAT
Description
Illuminate, chill and display refrigerated food or drink with CED’s self help, free standing, elliptical shaped Designline cold patisserie display (Rear Doors). Energy efficient 900mm long refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. This rear loading open fronted patisserie is for use in a free standing position as a grab and go solution ( with optional front fascia panel fitted ) or within a cut out space in a servery counter run ( with ventilation holes needed in the fascia panel for the underslung refrigeration condensing unit ). A stainless steel serve over canopy and toughened side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of shelf features lighting, product stop and 40mm tall ‘point of sale’ display/ticket strips. The 570mm x 870mm long cold deck area below the shelves provides further chilled merchandising. Additional product illumination is also provided by diffused lighting in the elliptical profile gantry. An eye level digital temperature display and ‘temperature lockable’ control panel is fitted to operator side of the display. The patisserie has 24 hour operation & holds food core between 2 – 5 deg. C. The display area features a double glazed hinged rear door for restocking and the self service superstructure is made from bright polished steel and alluminum curved profiles. Removable deck plates in the chilled patisserie make for easier deep cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with locking castors that have a combined adjustable central foot for levelling, foot adustment spanner, steel kickplinths and a 2m lead and 3 pin UK plug top. (1.70KW/13a/230v electrical supply ).
- Curved gantry in bright polished steel & aluminium profile with toughened glass side panels. Black powder coated steel base unit. ( Fascia panel optional )
- Each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strip
- Gantry is fitted with stainless steel serve over canopy and side glass protection to the customer side of the display
- Additional product illumination from diffused lighting within the elliptical profile gantry
- Curved glass profile is designed to complement other units within the Designline range
- Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
- Special-to-order. Non-returnable
- Drinks display examples: bottled, canned drinks, water, lemonade, wine. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, pastries, cakes,& fruit
- Features 3 chilled toughened glass display shelves with adjustable height and angle
- The 900mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
- Freestanding for self service application. (1 hinged rear door to display)
Additional information
| Brand | Designline |
|---|---|
| Dimensions | 1467(H) x 900(W) x 750(D)mm |
| Is A Plug Fitted? | Yes |
| Voltage | 230V |
| Manufacturers Warranty | 1 Year |
| Main Colour | Silver |
| Secondary Colour | Silver |
| Main Category | Display Refrigeration |
| Product Family | Refrigeration |
| Product Depth | 750 |
| Door Location | Back |
| Power | Plug |
| Number Of Seats | 3 |
| Mobility | Feet |
| Width (mm) | 900 |
| Product Cooling Type | Fan Assist |
| Number Of Fridge Doors | 1 |
| Delivery To Ireland | 8-10 weeks |
| Temperature Range | -1°C to 5°C |
| Operating Temperature Range | -1 °C to 5 °C |
| Product Type | Multidecks |
| Sub Category | Multideck Displays |
| Section | All Multidecks |
| Light Type | LED |
| Blade Material External | Stainless Steel |
| Finish Type | Stainless Steel |
| Fridge Finish | Stainless Steel |
| Cooling Type | Refrigerator |
| Fridge Door Type | Sliding |
| Product Weight | 190kg |
| Feat Type | Lockable Castors |
| Height (mm) | 1467 |
| Capacity | 228.6Ltr |
| Internal Dimensions | 707(H) x 870(W) x 610(D)mm |
| Capacity (ml) | 228.6 |
| Power Type | 1.7kW, 230V, 13A |
| Refrigerant Type | R290 / GWP 3 / 465g |
| Noise Level (dB) | 71 |
| Wattage | 1.7 |
| Supplier Reference | PC9HT |
| Weight | 190 kg |
Frequently Asked Questions
CED Designline Drop In Slimline Multideck with Rear Door 900mm FAQs
What is the CED Designline Drop In Slimline Multideck with Rear Door 900mm best suited to?
The CED Designline Drop In Slimline Multideck with Rear Door 900mm is designed for commercial kitchens that need organised, dependable temperature-controlled storage close to the workflow.
What capacity does the CED Designline Drop In Slimline Multideck with Rear Door 900mm provide?
The CED Designline Drop In Slimline Multideck with Rear Door 900mm has a capacity of 228.6Ltr. Assess this alongside shelf layout, door format and expected stock rotation.
What temperature range does the CED Designline Drop In Slimline Multideck with Rear Door 900mm operate at?
The operating temperature range is -1°C to 5°C. Keep airflow paths clear, avoid overloading and monitor the displayed temperature as part of normal food-safety checks.
How does the CED Designline Drop In Slimline Multideck with Rear Door 900mm control and maintain temperature?
The CED Designline Drop In Slimline Multideck with Rear Door 900mm provides these operating features:
- Gantry is fitted with stainless steel serve over canopy and side glass protection to the customer side of the display
- Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
- Drinks display examples: bottled, canned drinks, water, lemonade, wine. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, pastries, cakes,& fruit
- Freestanding for self service application. (1 hinged rear door to display)
How is stock arranged inside the CED Designline Drop In Slimline Multideck with Rear Door 900mm?
The internal arrangement includes 3 shelves and 1 door. Freestanding for self service application. (1 hinged rear door to display). Arrange stock so that cold air can circulate and frequently used items remain easy to reach.
What cooling system and refrigerant does the CED Designline Drop In Slimline Multideck with Rear Door 900mm use?
The cooling system is Fan Assist. It uses R290 / GWP 3 / 465g refrigerant. Correct ventilation, clean air paths and routine condenser care are important for stable performance and efficient operation.
What are the dimensions and net weight of the CED Designline Drop In Slimline Multideck with Rear Door 900mm?
The CED Designline Drop In Slimline Multideck with Rear Door 900mm measures 1467(H) x 900(W) x 750(D)mm and has a net product weight of 190kg. Check the delivery route, final position and required operating clearances before ordering.
What power supply does the CED Designline Drop In Slimline Multideck with Rear Door 900mm require?
The CED Designline Drop In Slimline Multideck with Rear Door 900mm requires an electrical supply rated at 1.7kW, 230V, 13A. A plug is fitted.
How should the CED Designline Drop In Slimline Multideck with Rear Door 900mm be cleaned and maintained?
Clean the CED Designline Drop In Slimline Multideck with Rear Door 900mm interior, shelves and door seals regularly with suitable non-abrasive products. Keep ventilation openings and condenser areas clear, avoid blocking the internal airflow and follow the model-specific defrost and maintenance instructions.
How can I identify the correct CED Designline Drop In Slimline Multideck with Rear Door 900mm model for ordering and support?
Quote Smart Hospitality Supplies product code CW663 when ordering or requesting support. The model reference is PC9HT. It includes a one-year warranty.
